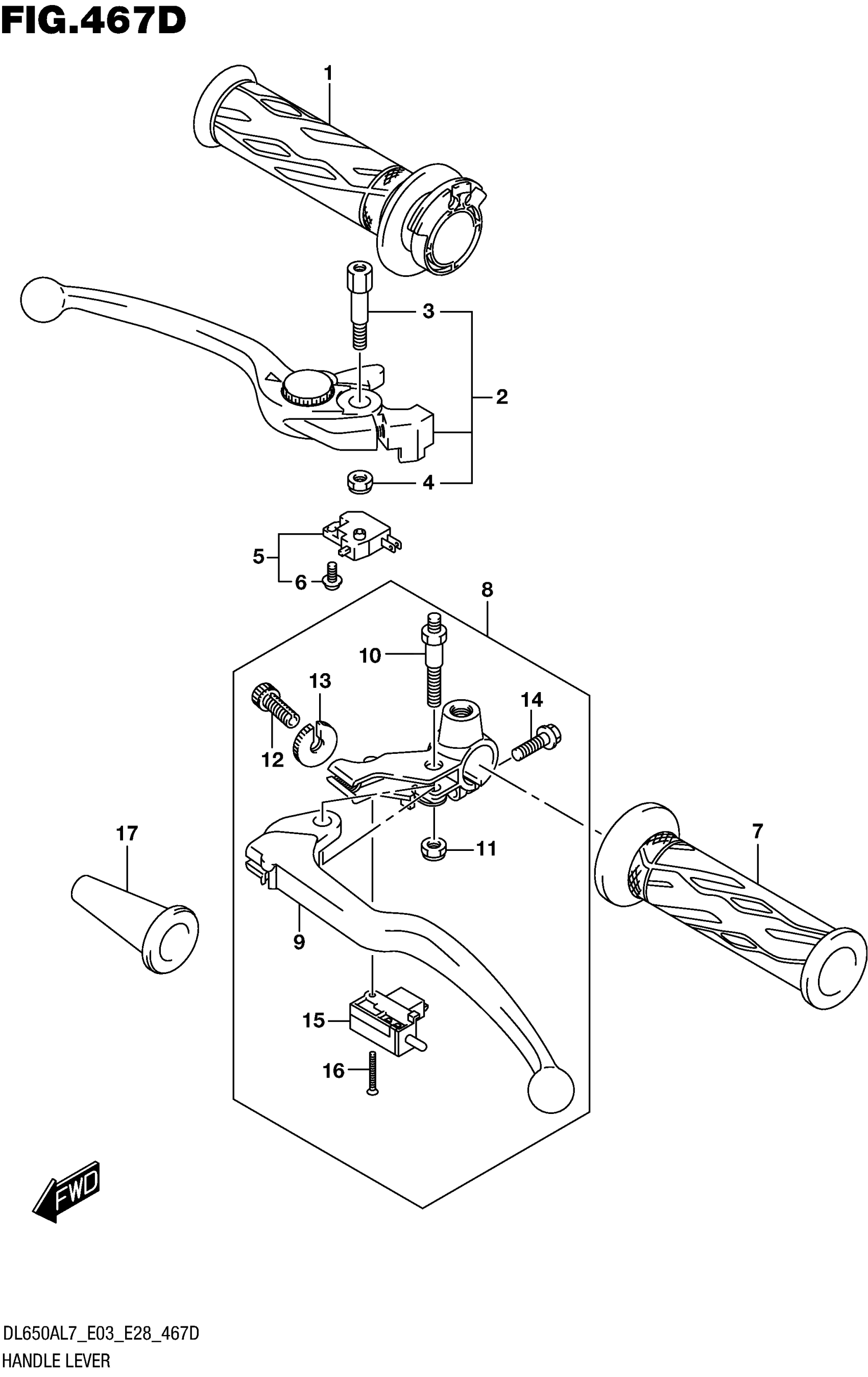

Suzuki DL650AL7 (2017) HANDLE LEVER (DL650XAL7 E03) Diagram

#

Description
Price

1

GRIP,THROTTLE

57110-21H02

$18.61

2

LEVER ASSY, BRAKE

57300-06G20

$91.82

3

.BOLT, BRAKE LEVER PIVOT

57431-06GA0

$25.72

4

.NUT

08319-2106A

$1.89

5

SWITCH ASSY,FR BRAKE This part replaces 57460-14J01.

57460-14J02

$35.21

6

.SCREW

57465-17C00

$2.37

7

GRIP, LH

57211-21H01

$10.18

8

LEVER ASSY, CLUTCH This part replaces 57500-25D20.

57500-25D22

$63.78

9

.LEVER, CLUTCH

57621-40F00

$16.69

10

.BOLT, CLUTCH LEVER PIVOT

57531-10D20

$38.68

11

.NUT

08319-2106A

$1.89

12

.ADJUSTER, WIRE This part replaces 57441-45C00.

57441-45C01

$8.29

13

.NUT, LOCK This part replaces 57442-45C00.

57442-45C01

$7.92

14

..BOLT

01547-0620B

$2.43

15

.SWITCH,CLUTCH

57560-05A00

$11.12

16

.SCREW,CLUTCH SWITCH

57562-41G01

$10.82

17

BOOT, CLUTCH CABLE This part replaces 58273-31000.

58273-31001

$2.40
