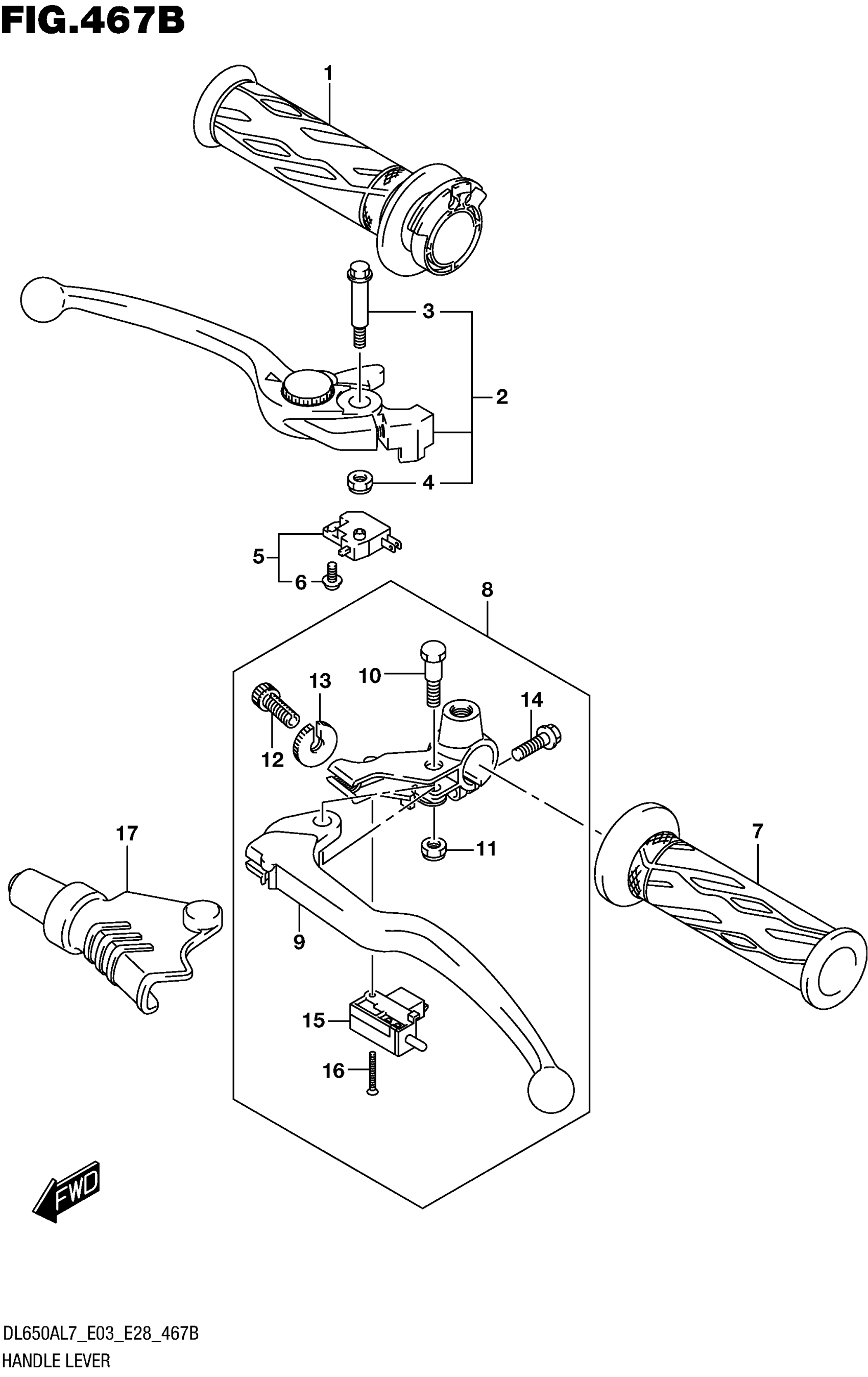

Suzuki DL650AL7 (2017) HANDLE LEVER (DL650AL7 E28) Diagram

#

Description
Price

1

GRIP,THROTTLE

57110-21H02

$20.33

2

LEVER ASSY, FR BRAKE

57300-44G12

$56.24

3

.BOLT, PIVOT

57431-17H02

$7.13

4

.NUT

08319-2106A

$1.91

5

SWITCH ASSY,FR BRAKE This part replaces 57460-14J01.

57460-14J02

$38.46

6

.SCREW

57465-17C00

$2.19

7

GRIP, LH

57211-21H01

$11.13

8

LEVER ASSY, CLUTCH This part replaces 57500-25D01.

57500-25D04

$38.08

9

.LEVER, CLUTCH

57621-40F00

$18.77

10

..BOLT,LEVER PIVOT This part replaces 57431-45C01.

57431-21D11

$9.76

11

.NUT

08319-2106A

$1.91

12

.ADJUSTER, WIRE This part replaces 57441-45C00.

57441-45C01

$9.05

13

.NUT, LOCK This part replaces 57442-45C00.

57442-45C01

$8.41

14

..BOLT

01547-0620B

$2.45

15

.SWITCH,CLUTCH

57560-05A00

$12.15

16

.SCREW,CLUTCH SWITCH

57562-41G01

$9.58

17

COVER,CLUTCH LEVER This part replaces 57661-33E00.

57661-33E01

$8.24
