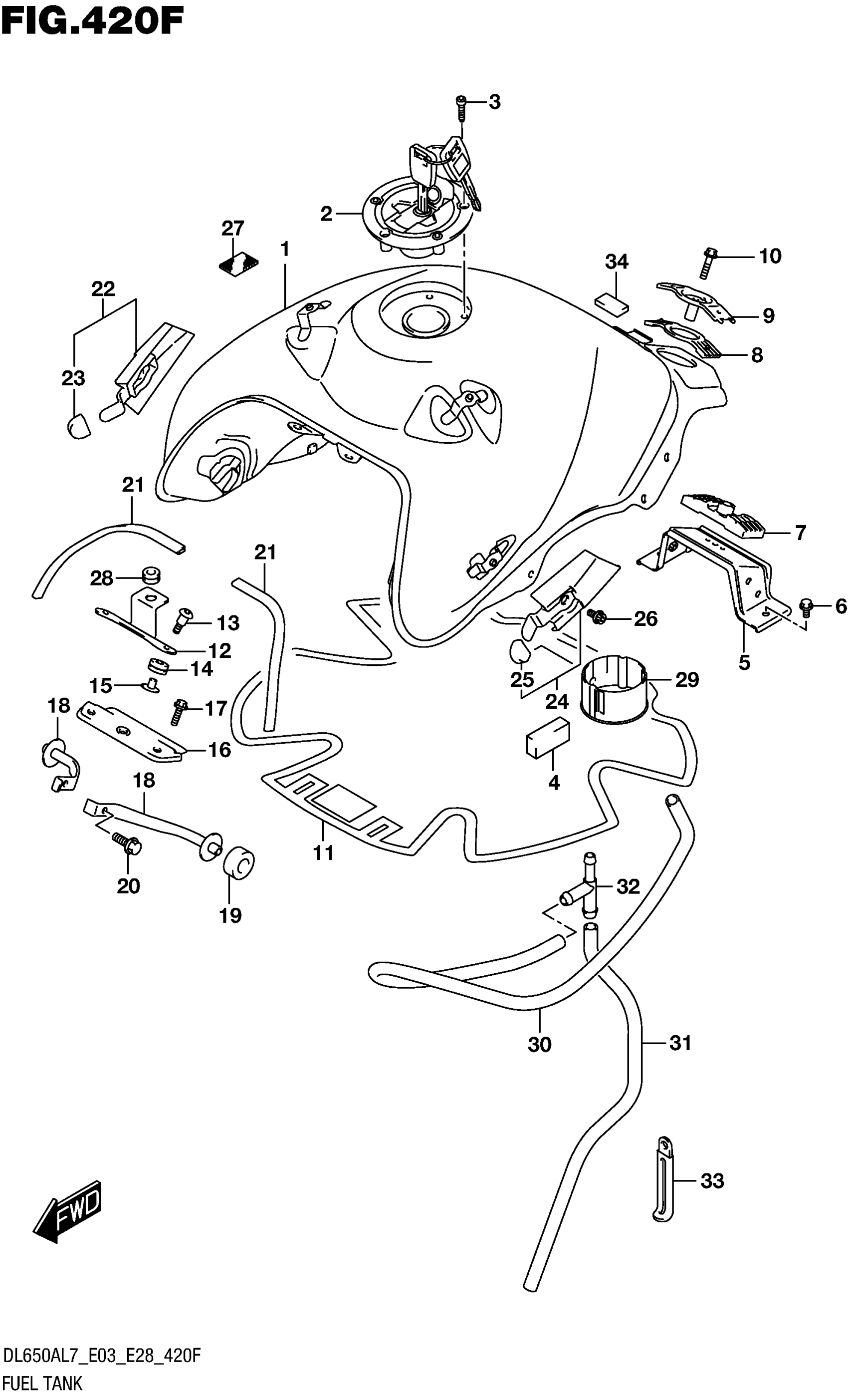

Suzuki DL650AL7 (2017) FUEL TANK (DL650AL7 E33) (FOR YVB,YWW) Diagram

#

Description
Price

1-1

TANK ASSY, FUEL (BLACK)

44100-28K00-YVB

$1,222.08

1-2

TANK ASSY, FUEL (WHITE)

44100-28K00-YWW

$1,201.45

2

CAP SET,FUEL TANK FILLER

44200-17820

$218.08

3

BOLT, FUEL TANK FILLER CAP

44244-11J00

$4.00

4

CUSHION, FUEL TANK SIDE

44541-28K00

$11.78

5

BRACKET, FUEL TANK RR

44550-06G10

Unavailable

6

BOLT (8X16)

01550-0816A

$2.32

7

CUSHION,FUEL TANK RR LWR

44545-06G00

$18.25

8

CUSHION,FUEL TANK RR UPR

44542-06G00

$16.78

9

BRACKET,FUEL TANK RR UP

44530-06G00

Unavailable

10

BOLT (8X35)

01550-0835A

$3.04

11

SHIELD, FUEL TANK CENTER

44194-11J00

$80.88

12

BRACKET, FR COVER

44154-11J00

$10.98

13

SCREW (6X25)

09139-06192

$3.23

14

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

$4.11

15

WASHER, FUEL TANK FRONT

44512-16G00

$7.44

16

BRACKET, FUEL TANK FR

44520-11J00

Unavailable

17

BOLT

01550-0620B

$2.39

18

BRACKET, FR SIDE

44560-11J00

Unavailable

19

CUSHION, FRONT SIDE BRACKET

44542-11J00

$4.87

20

BOLT

01550-0612A

$1.97

21

MOLDING, FUEL TANK

68241-11J01

$17.95

22

BRACKET, FUEL TANK COVER RH

44130-28K00

$12.18

23

.CUSHION

09329-18001

$1.91

24

BRACKET, FUEL TANK COVER LH

44140-28K00

$12.18

25

.CUSHION

09329-18001

$1.91

26

.BOLT

07120-0610A

$2.30

27

FASTENER, FUEL TANK COVER

44572-37H00

$9.83

28

CUSHION

09320-06504

$4.96

29

VESSEL, FUEL TANK INNER

44121-28K00

Unavailable

30

HOSE, FUEL TANK DRAIN NO.1

44423-28K00

Unavailable

31

HOSE, FUEL TANK DRAIN NO.2

44423-11J30

Unavailable

32

3 WAY

09367-08005

$4.83

33

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

34

CUSHION

45516-01H00

$5.32
