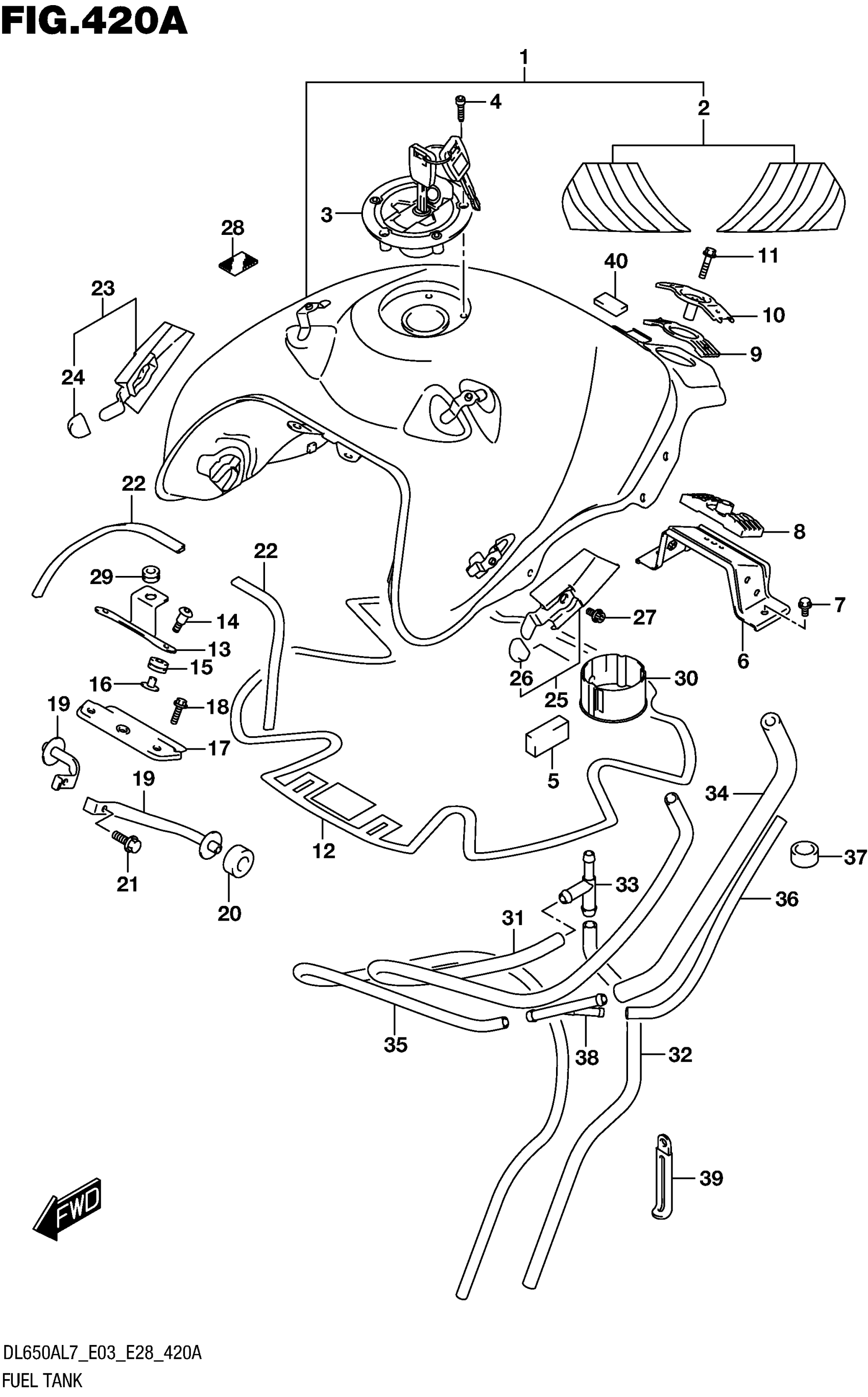

Suzuki DL650AL7 (2017) FUEL TANK (DL650AL7 E03) (FOR YU1) Diagram

TANK ASSY, FUEL (YELLOW)

44100-28KA0-YU1

$1,197.63

.TAPE SET, FUEL TANK

68110-28K00-GY8

$36.42

(YELLOW/BLACK)

68110-28K00-GY8

$36.42

CAP SET,FUEL TANK FILLER

44200-17820

$218.08

BOLT, FUEL TANK FILLER CAP

44244-11J00

$4.00

CUSHION, FUEL TANK SIDE

44541-28K00

$11.78

BRACKET, FUEL TANK RR

44550-06G10

Unavailable

BOLT (8X16)

01550-0816A

$2.32

CUSHION,FUEL TANK RR LWR

44545-06G00

$18.25

CUSHION,FUEL TANK RR UPR

44542-06G00

$16.78

BRACKET,FUEL TANK RR UP

44530-06G00

Unavailable

BOLT (8X35)

01550-0835A

$3.04

SHIELD, FUEL TANK CENTER

44194-11J00

$80.88

BRACKET, FR COVER

44154-11J00

$10.98

SCREW (6X25)

09139-06192

$3.23

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

$4.11

WASHER, FUEL TANK FRONT

44512-16G00

$7.44

BRACKET, FUEL TANK FR

44520-11J00

Unavailable

BOLT

01550-0620B

$2.39

BRACKET, FR SIDE

44560-11J00

Unavailable

CUSHION, FRONT SIDE BRACKET

44542-11J00

$4.87

BOLT

01550-0612A

$1.97

MOLDING, FUEL TANK

68241-11J01

$17.95

BRACKET, FUEL TANK COVER RH

44130-28K00

$12.18

.CUSHION

09329-18001

$1.91

BRACKET, FUEL TANK COVER LH

44140-28K00

$12.18

.CUSHION

09329-18001

$1.91

.BOLT

07120-0610A

$2.30

FASTENER, FUEL TANK COVER

44572-37H00

$9.83

CUSHION

09320-06504

$4.96

VESSEL, FUEL TANK INNER

44121-28K00

Unavailable

HOSE, FUEL TANK DRAIN NO.1

44423-28K00

Unavailable

HOSE, FUEL TANK DRAIN NO.2

44423-11J30

Unavailable

3 WAY

09367-08005

$4.83

HOSE, FUEL TANK BRTHR NO.1

44424-28K00

$11.33

HOSE (5X8.2X690)

09352-50823-690

$10.27

HOSE,5X10X600 | L:600->160 This part replaces 09352-50823-600.

44421-13ER0

$10.06

HOSE (13.5X16.5X10)

09352-13162-010

Unavailable

3 WAY

09367-06007

$3.46

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

CUSHION

45516-01H00

$5.32
