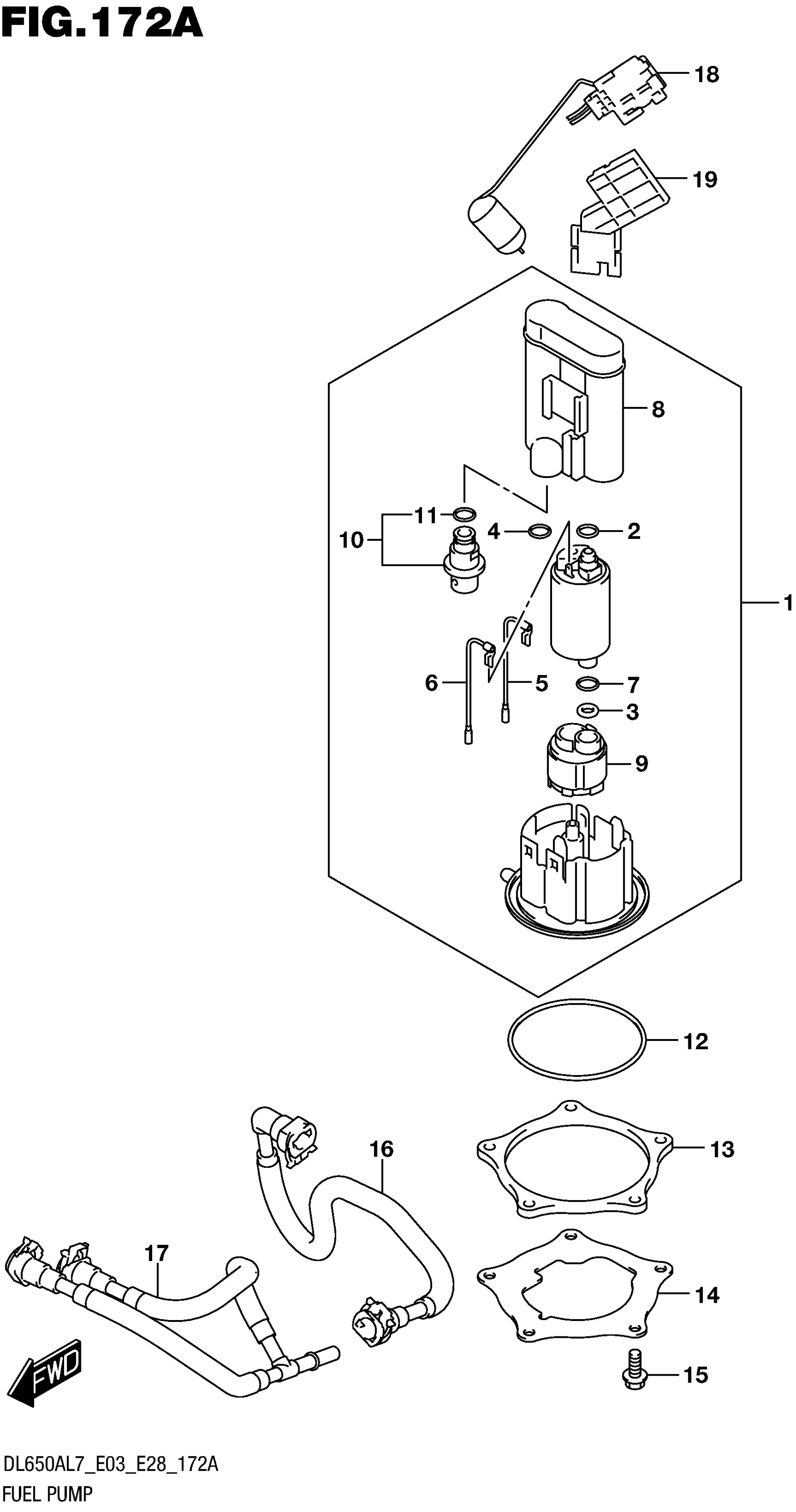

Suzuki DL650AL7 (2017) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY,FUEL

15100-28K00

$521.35

2

.O RING

15113-05H00

$19.98

3

.O-RING

15113-17K00

$31.85

4

.O RING

15113-35F00

$8.91

5

.WIPE, EARTH | BLACK

15114-17K00

$40.03

6

.WIRE,LEAD | BLUE

15115-17K00

$40.03

7

.COLLAR

15116-17K00

$18.27

8

.FILTER

15310-17K00

$78.67

9

.STRAINER

15420-17K00

$99.42

10

.REGULATOR ASSY, FUELL

15610-17K00

Unavailable

11

..O RING

15113-48H00

$16.97

12

O-RING,FUEL PUMP This part replaces 15201-17K01.

15201-07L00

$21.00

13

PLATE,FUEL PUMP INNER

15122-17K00

$43.73

14

PLATE,FUEL PUMP OUTER

15121-28K00

$11.17

15

BOLT

07120-0616A

$2.53

16

HOSE, FUEL NO.1

15810-28K00

$84.38

17

HOSE, FUEL NO.2

15820-28K00

$110.42

18

GAUGE ASSY, FUEL LEVEL SENDER

34810-28K00

$104.12

19

ATTACHMENT, FUEL LEVEL GAUGE

34815-28K00

$21.20
