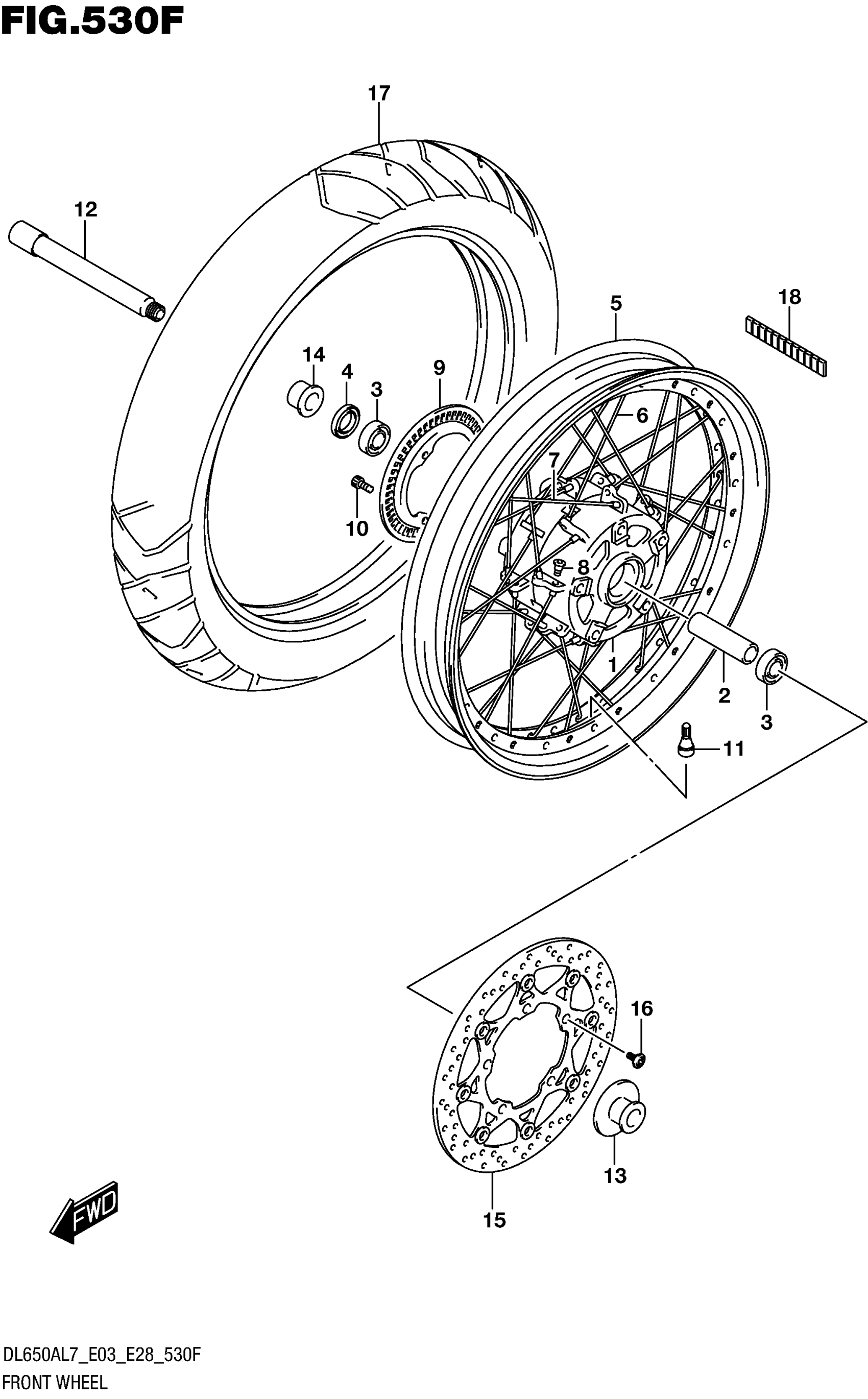

Suzuki DL650AL7 (2017) FRONT WHEEL (DL650XAL7 E33) Diagram

#

Description
Price

1

HUB, FRONT

54111-11J00

Unavailable

2

SPACER (17.5X25X88)

09180-17067

$25.05

3

BEARING This part replaces 08133-62037.

08133-6203B

$15.88

4

SEAL, FRONT HUB BRG DUST

54841-28K00

$6.75

5-1

RIM, FRONT WHEEL (BLACK)

55311-11J00

$809.50

5-1

(19M/CXMT2.50)

55311-11J00

$809.50

5-2

RIM, FR WHEEL (19M/CXMT2.50)

55311-11J10

$840.26

5-2

RIM, FR WHEEL (19M/CXMT2.50)

55311-11J10

$840.26

6

SPOKE, FRONT WHEEL INNER This part replaces 55321-11J00.

55321-11J01

$7.45

7

SPOKE, FRONT WHEEL OUTER This part replaces 55322-11J00.

55322-11J01

$4.10

8

NIPPLE, WHEEL

55326-11J00

$4.85

9

RING, SPEED SENSOR (50T)

54162-28K00

$64.93

10

BOLT

07130-0512A

$2.19

11

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.10

12

AXLE, FR

54711-08F10

$121.48

13

SPACER, FR AXLE LH

54750-31F00

$28.90

14

SPACER, FR AXLE RH

54751-10G01

$20.22

15

DISC,FR BRAKE

59210-44G11

$462.72

16

BOLT (8X21)

09106-08160

$3.22

17

TIRE, FRONT (BATTLAX | BATTLAX ADVENTURE A4

55110-28K00

$344.60

17

TIRE, FRONT (BATTLAX | BRIDGESTONE

55110-28K00

$344.60

18

WEIGHT,WHEEL BALANCE (5GRAM)

55411-11J00

$6.08
