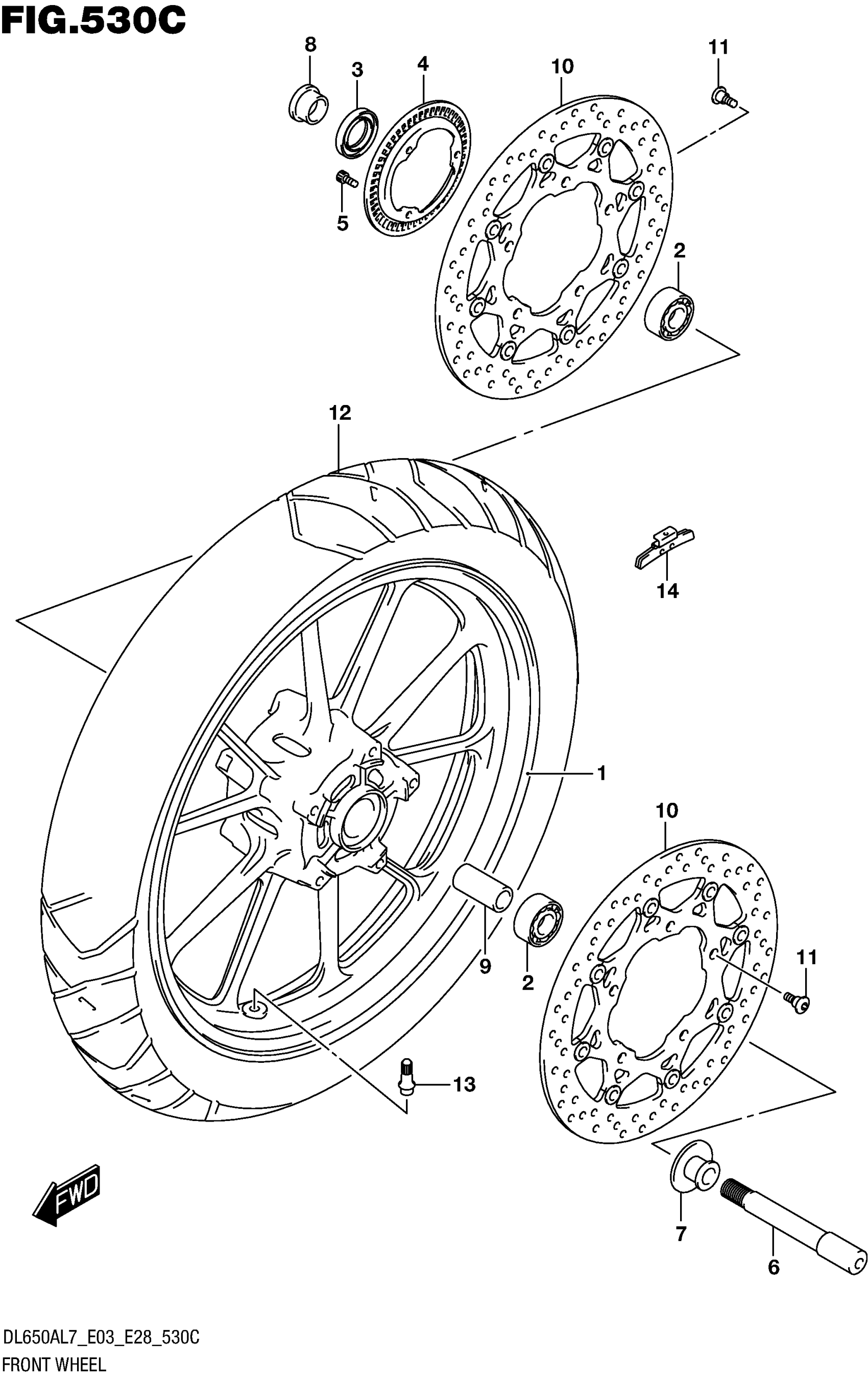

Suzuki DL650AL7 (2017) FRONT WHEEL (DL650AL7 E33) Diagram

#

Description
Price

1

WHEEL, FRONT (19M/CXMT2.50)

54111-28K00-019

$788.92

1

WHEEL, FRONT (19M/CXMT2.50)

54111-28K00-019

$788.92

2

BEARING This part replaces 08133-62037.

08133-6203B

$17.61

3

SEAL, FRONT HUB BRG DUST

54841-28K00

$5.98

4

RING, SPEED SENSOR (50T)

54162-28K00

$57.53

5

BOLT

07130-0512A

$2.19

6

AXLE, FR

54711-08F10

$108.15

7

SPACER, FR AXLE LH

54750-31F00

$25.62

8

SPACER, FR AXLE RH

54751-10G01

$17.90

9

SPACER (17.5X25X88)

09180-17067

$23.05

10

DISC,FR BRAKE

59210-44G11

$415.82

11

BOLT (8X21)

09106-08160

$3.57

12

TIRE,FR(110/80R | TRAIL WING 101 RADIA This part replaces 55110-06G11.

55110-06G12

$185.88

12

TIRE,FR(110/80R | BRIDGESTONE This part replaces 55110-06G11.

55110-06G12

$185.88

13

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

14-1

BALANCER, WHEEL NO.1 | 10G

55411-22H00

$8.60

14-2

BALANCER, WHEEL NO.2 | 20G

55412-22H00

$10.07

14-3

BALANCER, WHEEL NO.3 | 30G

55413-22H00

$11.47
