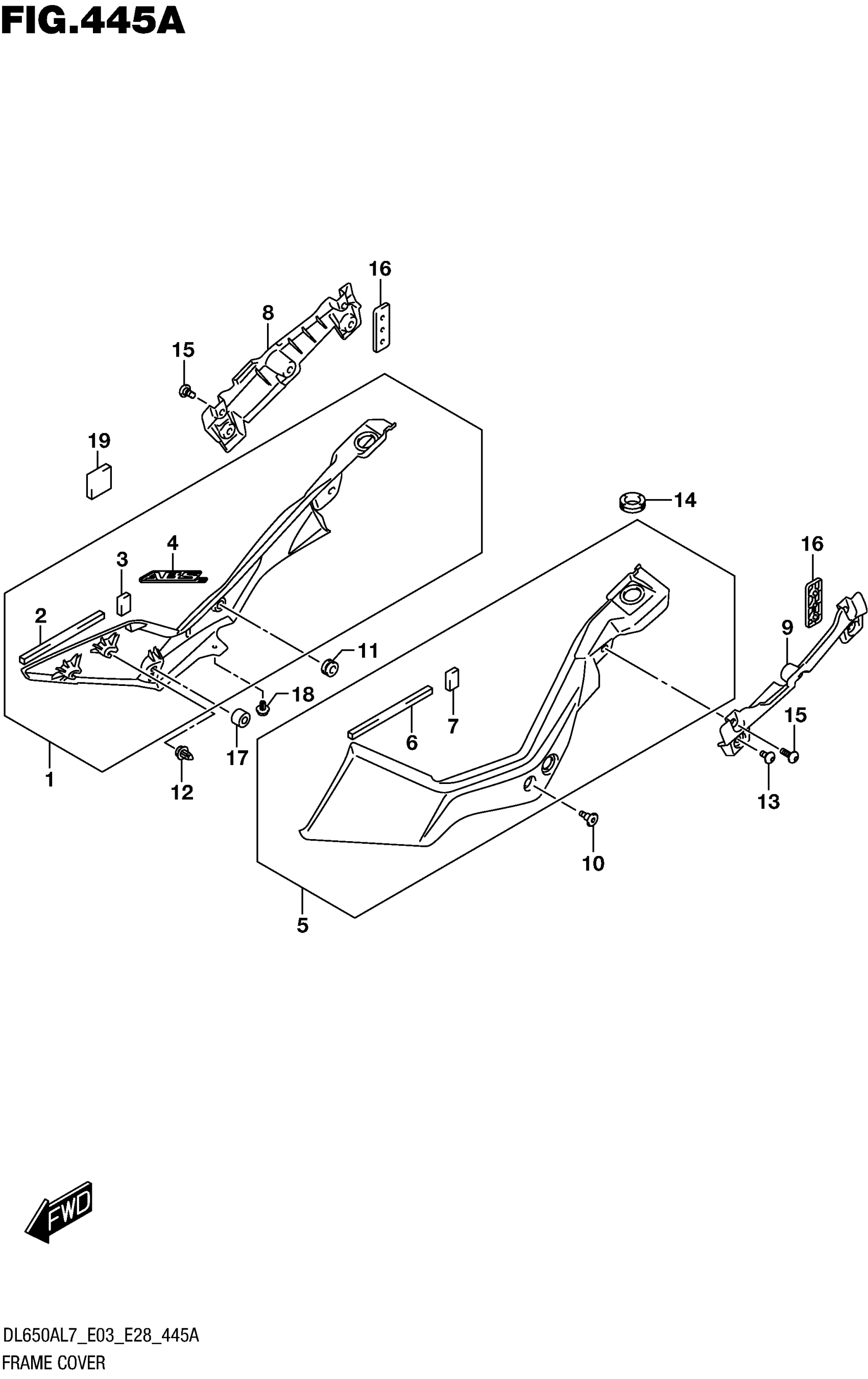

Suzuki DL650AL7 (2017) FRAME COVER Diagram

#

Description
Price

1

COVER, FRAME RH This part replaces 47110-28K00-GWM.

47110-28K01-GWM

$139.62

2

.CUSHION, FRAME COVER FR FR

47121-28K00

Unavailable

3

CUSHION, FRAME COVER FR RR

47122-28K00

$5.73

4

.EMBLEM, ABS

68131-28K00-GWM

Unavailable

5

COVER, FRAME LH

47210-28K00

$93.42

6

.CUSHION, FRAME COVER FR FR

47121-28K00

Unavailable

7

CUSHION, FRAME COVER FR RR

47122-28K00

$5.73

8

COVER, FRAME REAR RH

47411-31J10

$15.35

9

COVER, FRAME REAR LH

47511-31J10

$18.05

10

SCREW (6X20)

09139-06211

$3.44

11

CUSHION

09320-09016

$1.97

12

CLIP

09409-10313

$1.98

13

SCREW

47913-31J00

$2.42

14

CUSHION (20X32X9) This part replaces 09320-20010.

09320-20011

$2.69

15

SCREW (6X16)

09139-06120

$2.83

16

SPACER, FRAME COVER

47510-28K00

$17.72

17

CUSHION

09321-10001

$2.61

18

CLIP

09409-06328

$3.23

19

CUSHION, FRAME COVER

47123-28K00

Unavailable
