2017 Suzuki DL650AL7 Cowling Body Diagram

← All diagrams

Find the part on the Cowling Body diagram for your 2017 Suzuki DL650AL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

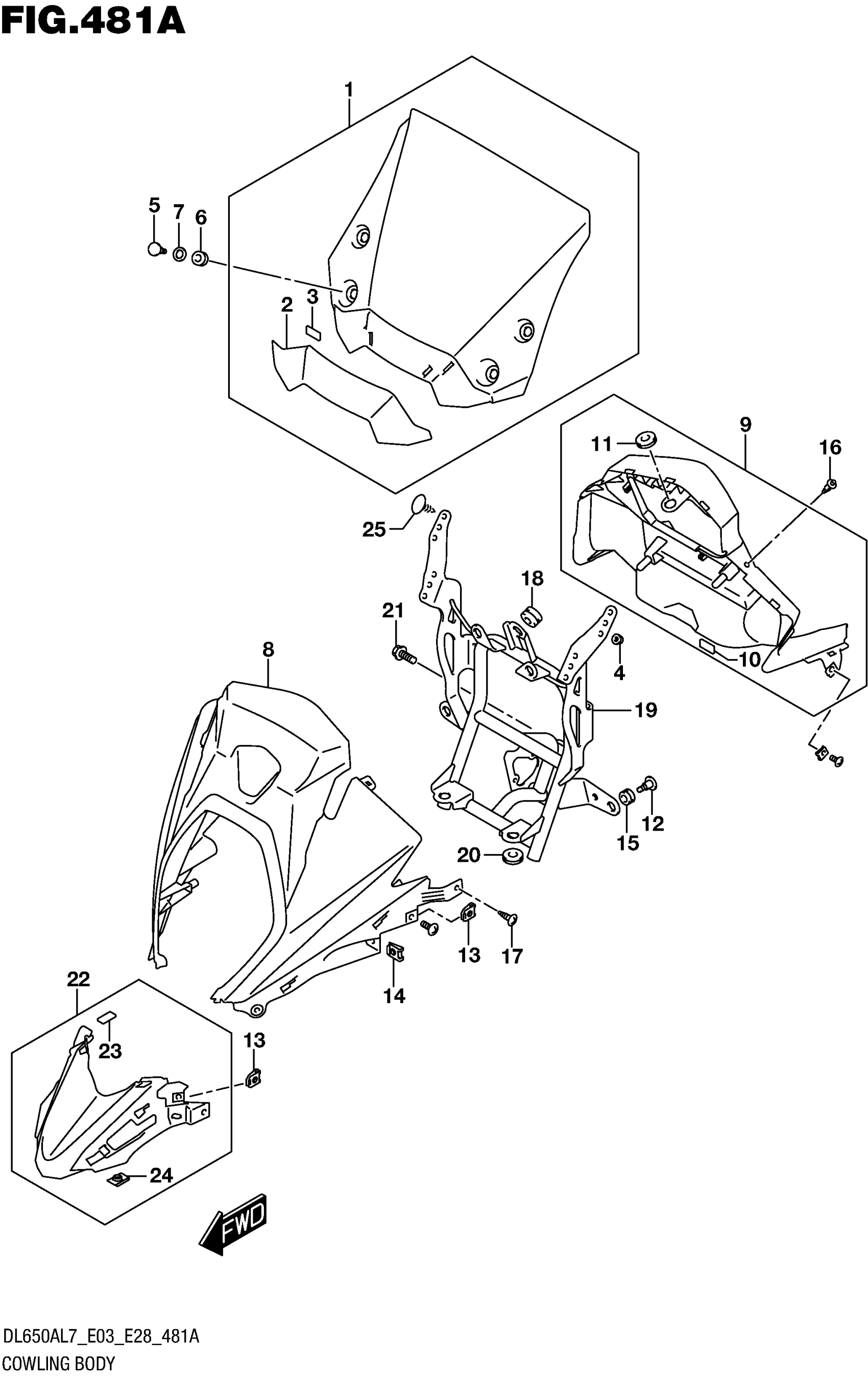

2017 Suzuki DL650AL7 Cowling Body Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WINDSCREEN

48410-28K00

1
Out of stock

2

.COVER, WINDSCREEN

48412-28K00

1
Out of stock

3

PAD (8X20X2)

73415-70A00

4
Out of stock

4

CAP, WINDSCREEN SCREW

48414-31J00

4
Out of stock

5

SCREW (6X20)

09139-06211

4
Out of stock

6

CUSHION

09320-09016

4
Out of stock

7

WASHER

08322-0110B

4
Out of stock

8

COWLING, BODY

94411-28K00

1
Out of stock

9

PANEL, METER

94630-28K00

1
Out of stock

10

PAD (8X20X2)

73415-70A00

3
Out of stock

11

.CUSHION

09320-08028

1
Out of stock

12

SCREW (6X20)

09139-06126

4
Out of stock

13

NUT

09148-05038

8
Out of stock

14

NUT

09148-06020

4
Out of stock

15

CUSHION

09320-09016

4
Out of stock

16

CLIP (BLACK)

09409-06314-5PK

4
Out of stock

17

SCREW

03541-0512A

4
Out of stock

18

CUSHION,SPEEDOMETER This part replaces 34189-08J00.

34189-08J01

1
Out of stock

19

BRACE, COWLING

94510-28K00

1
Out of stock

20

CUSHION

09320-08028

2
Out of stock

21

BOLT

01550-0820A

2
Out of stock

22

COWLING, BODY LOWER (BLACK)

94402-28K00-YKV

1
Out of stock

23

PAD (8X20X2)

73415-70A00

2
Out of stock

24

.NUT

09148-05052

2
Out of stock

25

CLIP

09409-10304

8
Out of stock
