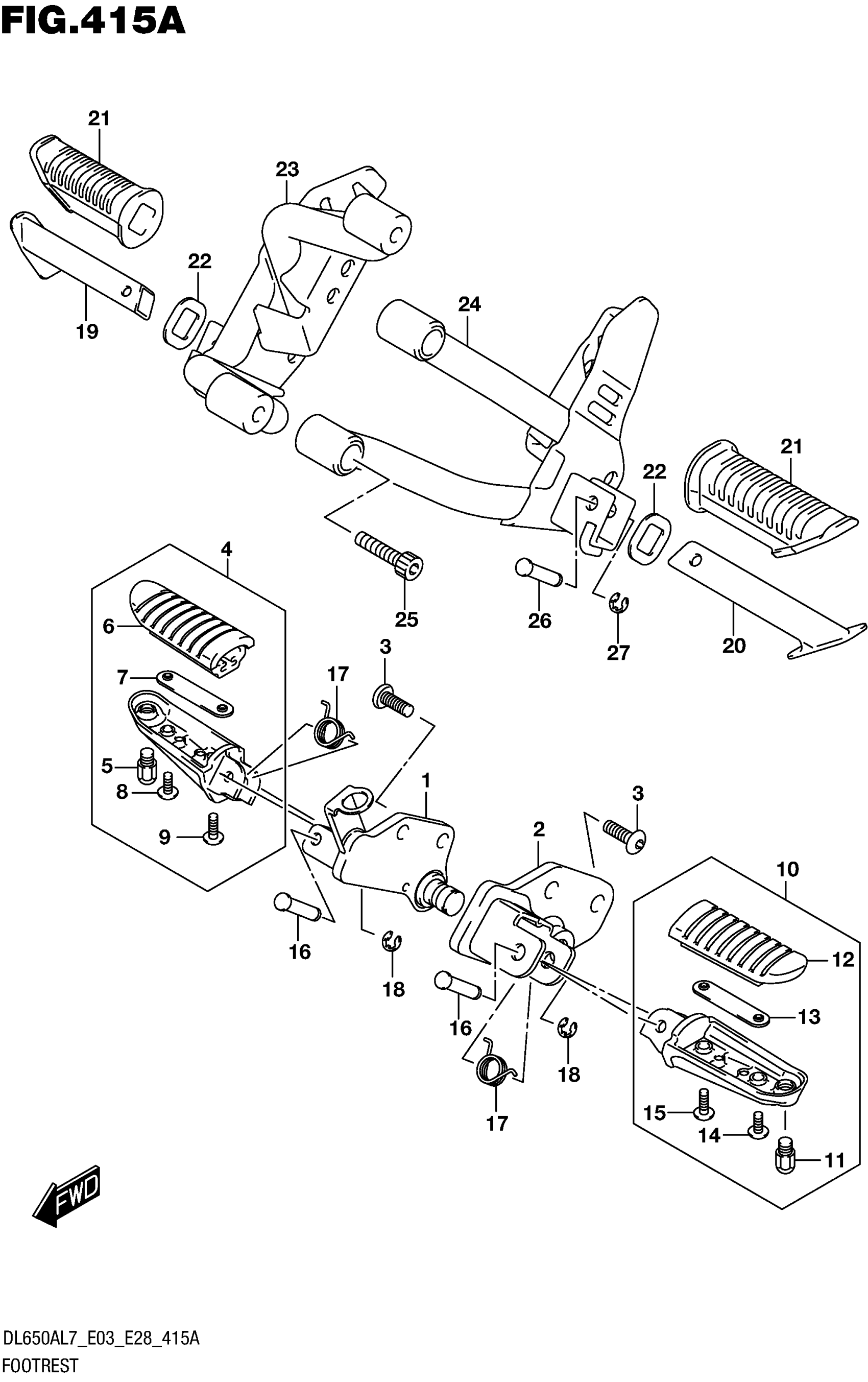

Suzuki DL650AL7 (2017) FOOTREST Diagram

#

Description
Price

1

BRACKET, FR FOOTREST RH

43510-11J00-YAP

$92.55

2

BRACKET, FR FOOTREST LH

43520-11J00-YAP

$72.77

3

BOLT (8X23)

09106-08150

$3.13

4

FOOTREST ASSY RH

43501-06G01

$133.57

5

.BOLT,BANK SENSOR

43576-07D01

$8.10

6

.RUBBER

43551-06G00

$13.21

7

.PLATE

43552-06G00

$14.47

8

.SCREW | OUTER

02142-0516B

$1.95

9

.SCREW | INNER

02142-0520B

$1.77

10

FOOTREST ASSY, LH

43502-06G01

$133.57

11

.BOLT,BANK SENSOR

43576-07D01

$8.10

12

.RUBBER

43551-06G00

$13.21

13

.PLATE

43552-06G00

$14.47

14

.SCREW | OUTER

02142-0516B

$1.95

15

.SCREW | INNER

02142-0520B

$1.77

16

PIN (8X33.2)

09208-08010

$2.80

17

SPRING

09448-18022

$3.42

18

E-RING

08332-1106B

$1.98

19

BAR, PILLION FOOTREST RH This part replaces 43610-34A40.

43610-34A60

$73.87

20

BAR, PILLION FOOTREST LH This part replaces 43710-34A40.

43710-34A60

$70.48

21

RUBBER, PILLION FOOTREST This part replaces 43612-33G01.

43612-33G30

$7.68

22

WASHER, FOOTREST RUBBER

43631-34A01

$4.26

23

BRACKET, PILLION FTRST RH

43810-28K00-YAP

$171.00

24

BRACKET, PILLION FTRST LH

43820-28K00-YAP

$174.22

25

BOLT (8X40)

09106-08074

$3.52

26

PIN (6X29.5)

09208-06008

$2.80

27

E RING

08332-1104A

$1.37
