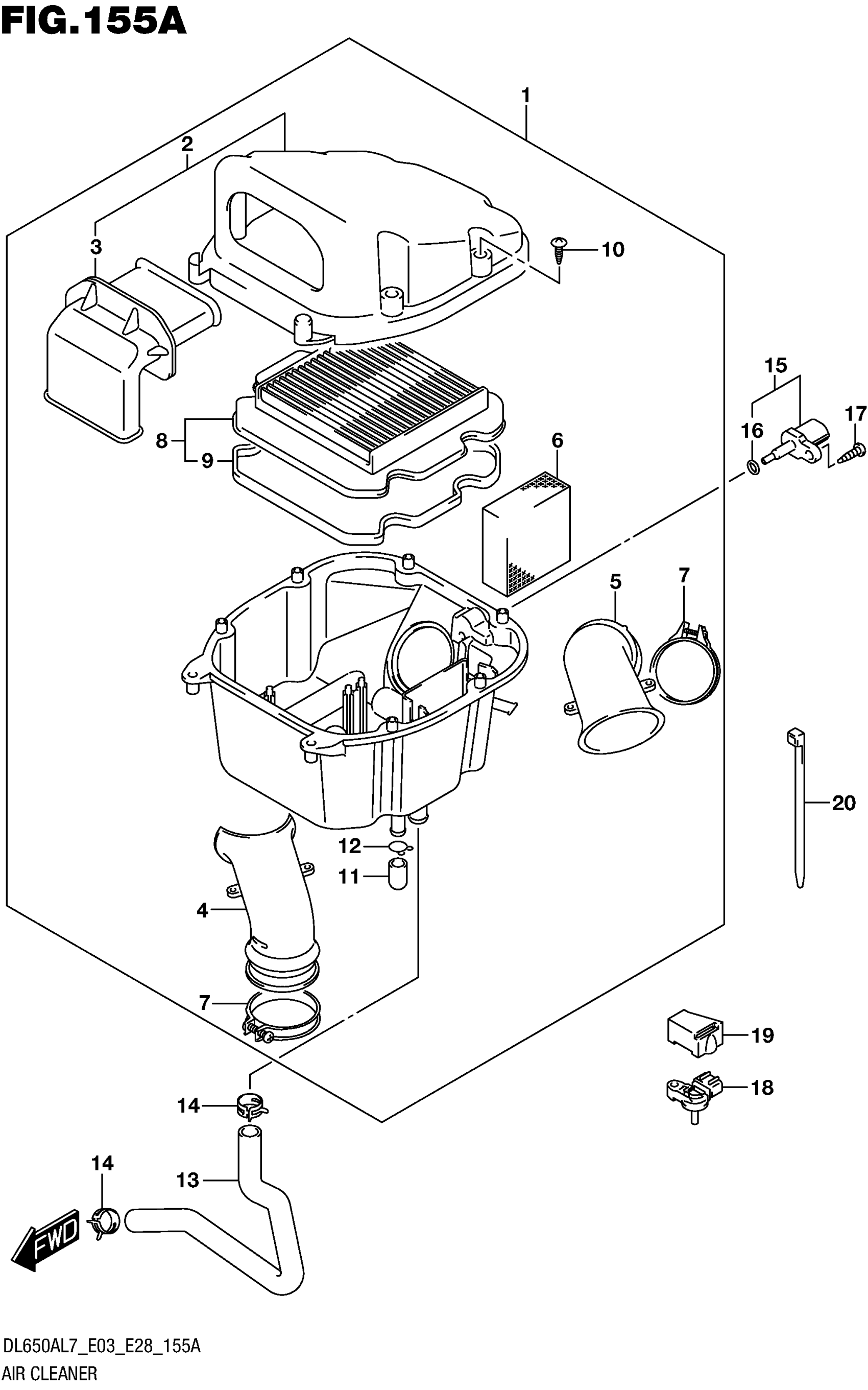

Suzuki DL650AL7 (2017) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR This part replaces 13700-11J01.

13700-11J02

$243.82

2

.CAP, AIR CLEANER

13740-11J01

Unavailable

3

..TUBE, INLET

13891-27G01

$44.45

4

.TUBE, OUTLET A This part replaces 13881-27G10.

13881-27G11

$21.28

5

.TUBE, OUTLET B This part replaces 13882-27G10.

13882-27G11

$21.28

6

.FILTER, BREATHER

13788-11J00

$16.16

7

.CLAMP,OUTLET TUBE

13826-44H01

Unavailable

8

.FILTER, AIR CLEANER

13780-27G10

$51.22

9

..GASKET, AIR CLEANER

13746-06G00

$16.58

10

.SCREW

03141-0516A

$1.49

11

.PLUG This part replaces 13878-10G00.

13878-10G01

$4.93

12

.CLIP

09401-14301

$2.35

13

TUBE, BREATHER

13850-11J00

$49.67

14

CLIP

09401-20405

$4.08

15

SENSOR AIR TEMP

13650-41F10

$63.25

16

O-RING

13655-41F10

Unavailable

17

SCREW

03511-0516A

$1.86

18

SENSOR,BOOST

18590-18K00

$315.08

19

HOLDER,SENSOR

18595-04K00

$10.55

20

CLAMP (L:145)

09407-14407

$3.57
