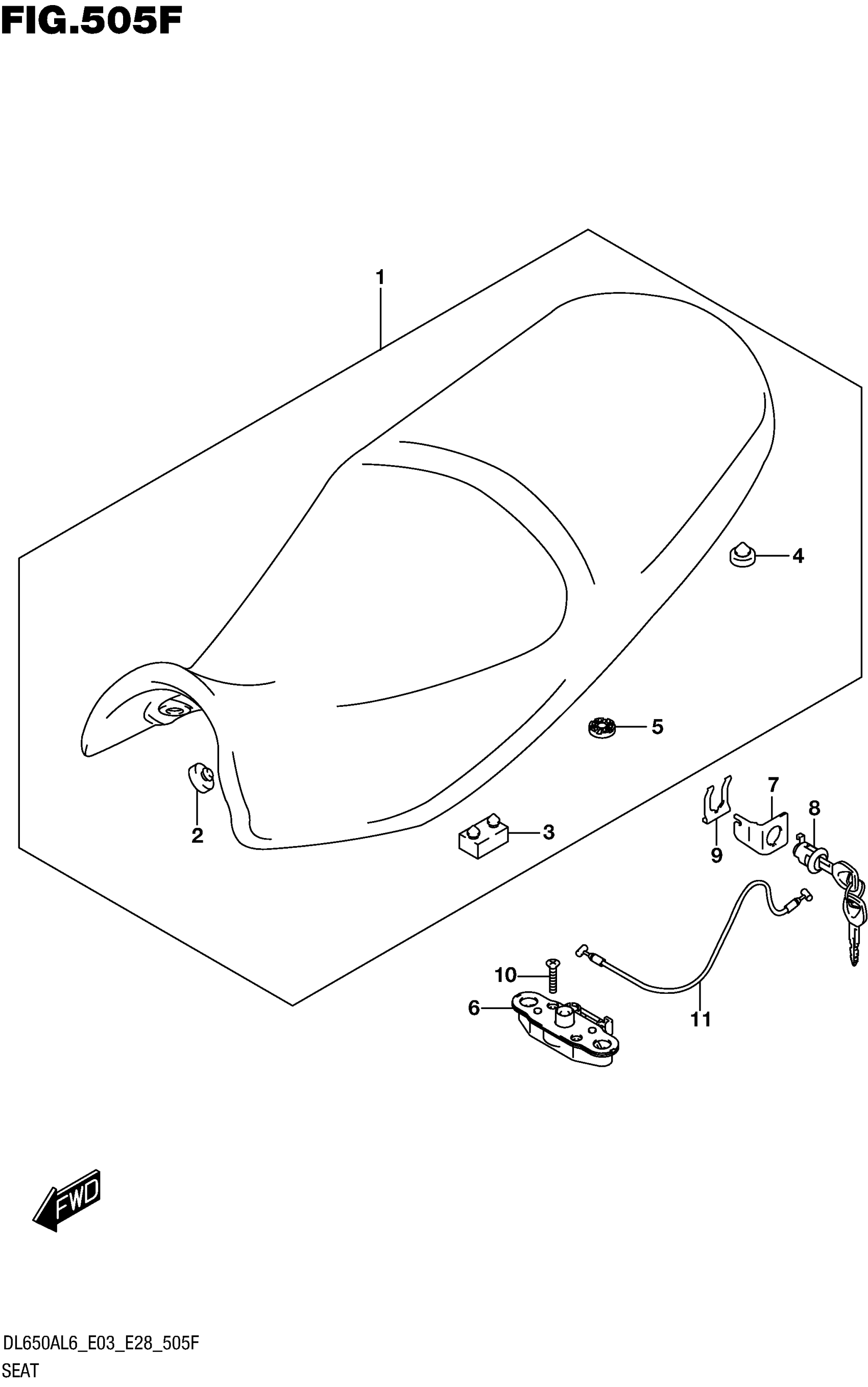

Suzuki DL650AL6 (2016) SEAT (DL650XAL6 E03) Diagram

#

Description
Price

1

SEAT ASSY (BLACK/GRAY/RED)

45100-11J00-A28

Unavailable

2

CUSHION,SEAT This part replaces 45148-36C00.

45148-36C01

$4.23

3

.CUSHION, SEAT

45149-31300

$3.56

4

CUSHION

09321-10012

$2.92

5

.CUSHION, SEAT LOCK STRIKER

45213-13601

$2.79

6

BRACKET, SEAT SUPPORT REAR

45220-47H00

$138.38

7

GUIDE, SEAT LOCK CABLE

45288-14F00

$5.36

8

LOCK SET, SEAT

95700-14810

$107.30

9

PLATE, SEAT LOCK ASSY

45289-11F00

$6.20

10

SCREW

02122-0630A

$1.74

11

CABLE, SEAT LOCK

45280-11J00

$25.38
