Description

Price

1

HUB, RR

64111-11J00

$519.12

2

RIM, REAR WHEEL (17M/CXMT4.00

65311-11J00

Unavailable

3

SPOKE, REAR WHEEL INNER This part replaces 65321-11J00.

65321-11J01

$6.85

4

SPOKE, REAR WHEEL OUTER This part replaces 65322-11J00.

65322-11J01

$6.85

5

NIPPLE, WHEEL

55326-11J00

$5.15

6

DISC, RR BRAKE

69211-06G10

$324.48

7

BOLT (8X21)

09106-08160

$3.57

8

SPACER, RR AXLE RH

64741-10F00

$20.76

9

DRUM, RR SPROCKET

64610-35F40

$311.15

10

ABSORBER, RR HUB SHOCK

64651-35F10

$11.82

11

RING, SPEED SENSOR FR (50T)

54162-27G00

$140.15

12

BOLT

07130-0512A

$2.19

13

AXLE, RR

64711-03F00

$135.48

14

RETAINER, RR SPROCKET DRUM

64733-06G00

$32.43

15

SPACER, RR AXLE LH

64751-27G00

$30.70

16

NUT

08319-3118A

$24.48

17

SPACER (20.8X27.2X124)

09180-20112

$37.45

18

BEARING (32X65X17) This part replaces 09262-32022.

09262-32024

$39.40

19

OIL SEAL (39X65X7)

09285-39001

$10.62

20

BEARING This part replaces 08123-62047.

08123-6204B

$17.41

21

SEAL,OIL (27X47X7) This part replaces 09285-28001.

09285-28004

$12.49

22

SPROCKET, RR (47T-525)

64511-27G00

$83.38

23

NUT

08319-3110A

$2.73

24

TIRE RR(150/70R | BRIDGESTONE This part replaces 65110-06G11.

65110-06G12

$227.90

25

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

26

WEIGHT,WHEEL BALANCE (5GRAM)

55411-11J00

$5.38

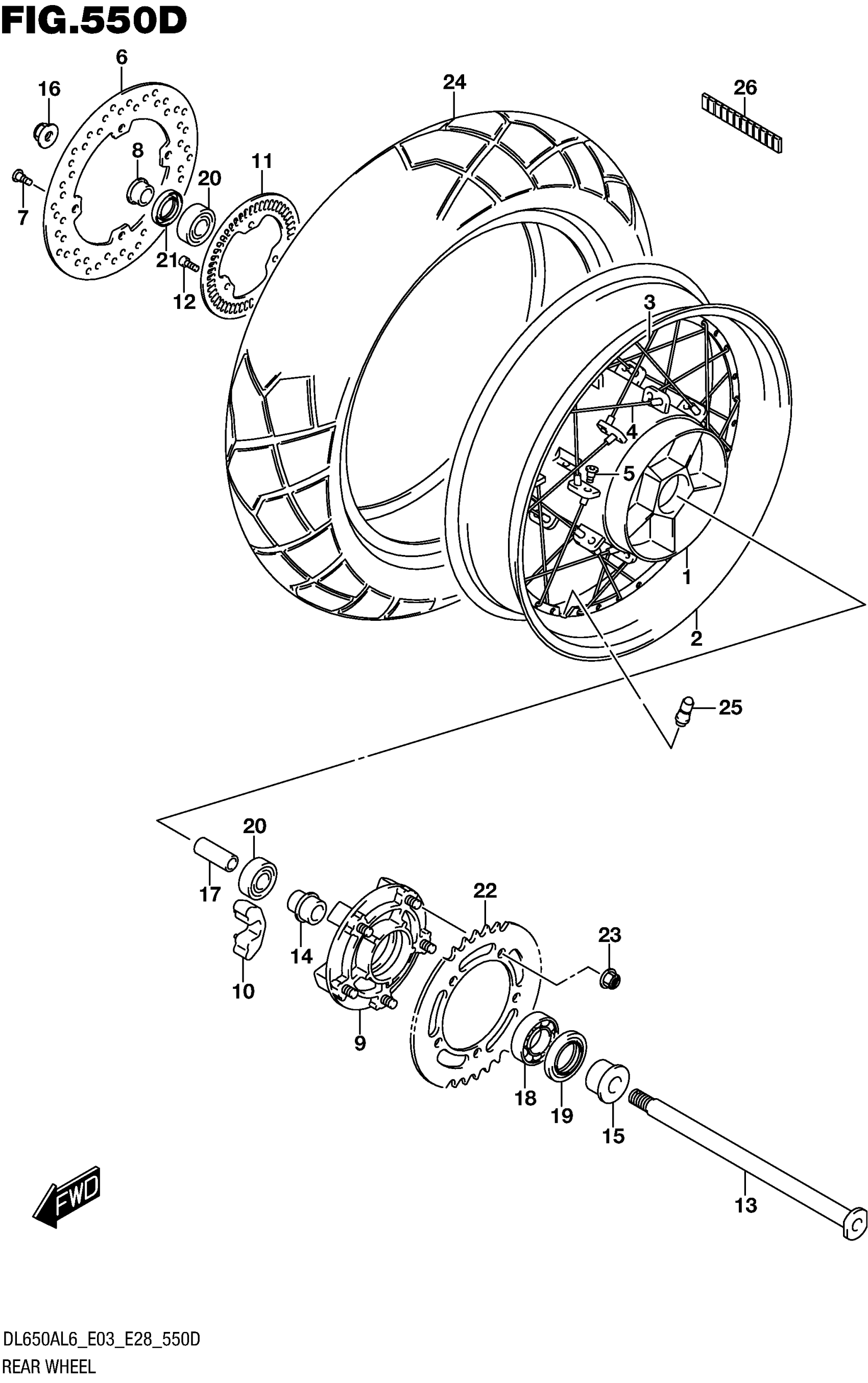

Suzuki DL650AL6 (2016) REAR WHEEL (DL650XAL6 E28) Diagram
