Description

Price

1

SWINGINGARM ASSY, REAR

61000-27G30-YAP

$1,753.00

1

(BLACK)

61000-27G30-YAP

$1,753.00

2

.SPACER (20.8X27.2X196.7)

09180-20118

$24.35

3

BEARING (25X33X35) This part replaces 09263-25059.

09263-25073

$30.93

4

.BEARING (17X24X25) This part replaces 09263-17037.

09263-17053

$21.66

5

SPACER,PIVOT BEARING

61251-31E00

$59.25

6

SHAFT, RR SWINGINGARM PIVOT

61211-06G00

Unavailable

7

NUT, RR SWGARM PIVOT BOLT

61214-19F10

$21.40

8

NUT

08319-3118A

$24.48

9

BUFFER, CHAIN TOUCH DEFENSE This part replaces 61273-27G00.

61273-27G01

$34.45

10

BOLT (6X20)

09116-06152

$2.36

11

SPACER (6.5X10X7)

09180-06283

$1.91

12

ADJUSTER, CHAIN

61410-03F00

$39.17

13

PLATE, CHAIN ADJUSTER GUIDE R

61421-33D01

$33.00

14

PLATE, CHAIN ADJUSTER GUIDE L

61422-33D01

$33.00

15

WASHER, CHAIN ADJUSTER RH

64712-03F00

$6.70

16

WASHER, CHAIN ADJUSTER LH

64713-03F00

$5.70

17

BOLT (8X50)

09106-08119

$4.04

18

WASHER

09164-08015

$3.21

19

CASE,CHAIN

61310-16G00

$98.40

20

SCREW (6X16)

09139-06083

$2.26

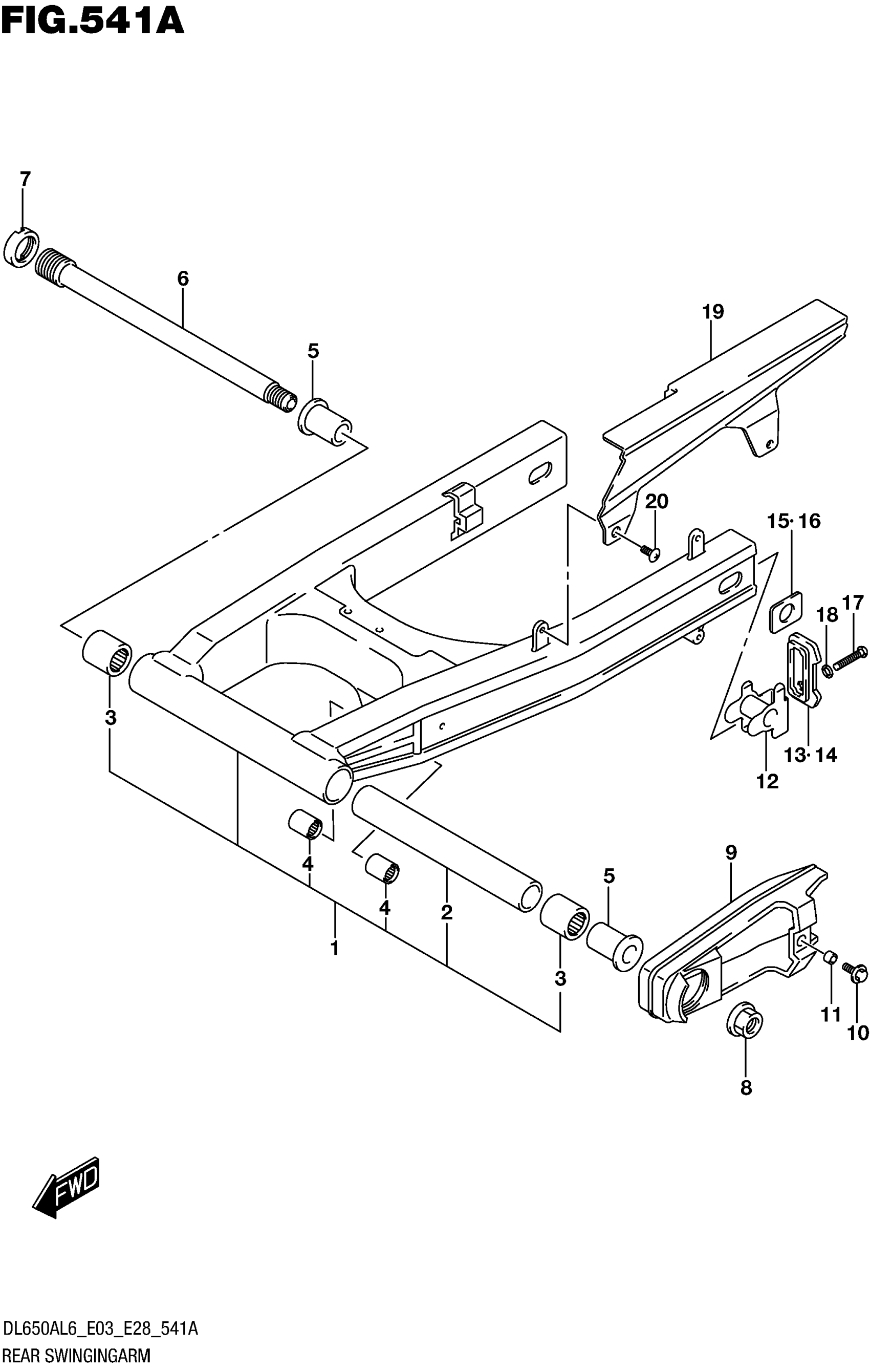

Suzuki DL650AL6 (2016) REAR SWINGINGARM Diagram
