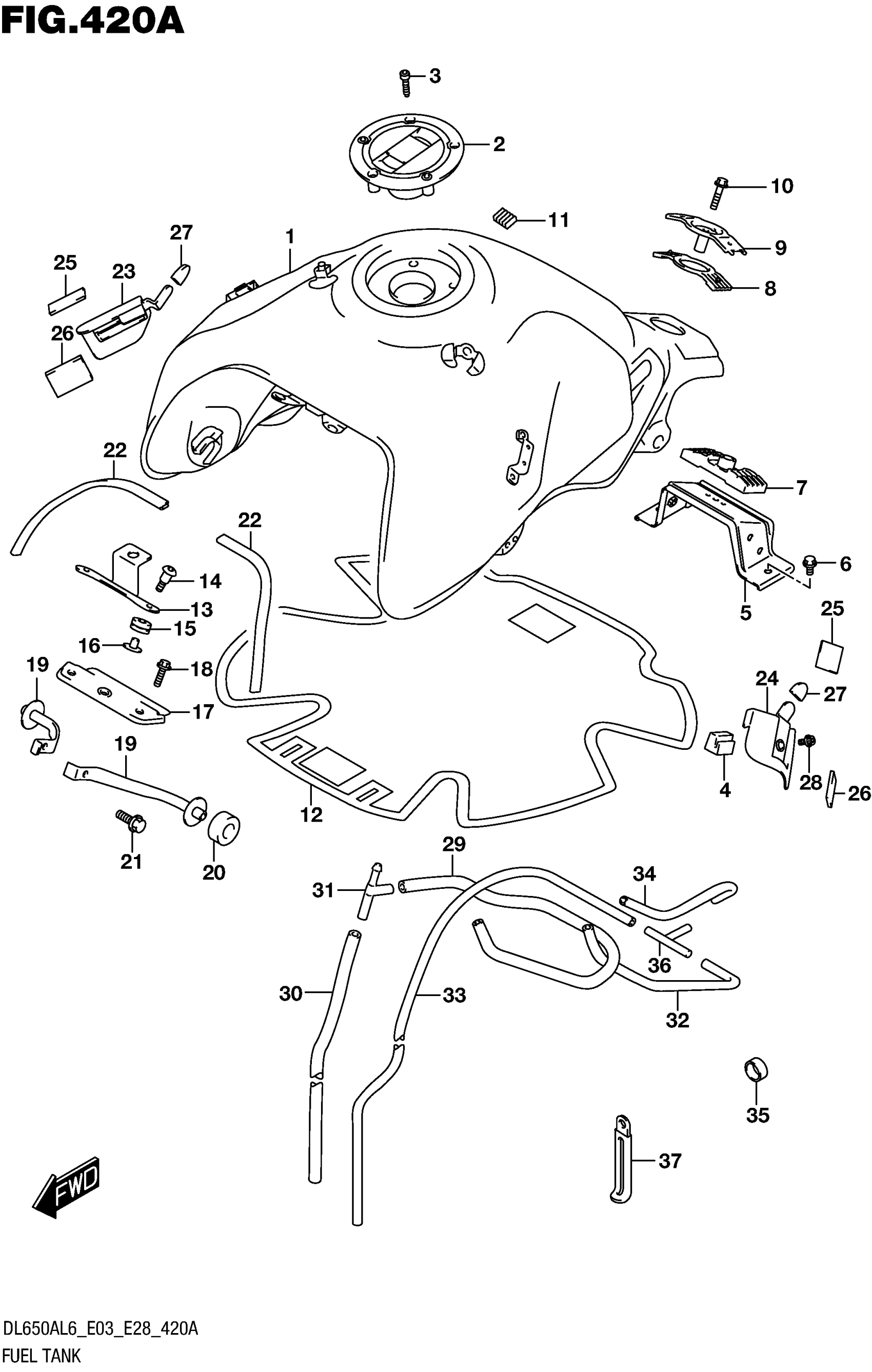

Suzuki DL650AL6 (2016) FUEL TANK (DL650AL6 E28) Diagram

#

Description
Price

1

TANK, FUEL (BLACK)

44100-11J00-YKV

$1,283.18

2

CAP SET,FUEL TA This part replaces 44200-16850.

44200-16852

$118.21

3

BOLT, FUEL TANK FILLER CAP

44244-11J00

$4.00

4

CUSHION,FUEL TA This part replaces 44541-11J00.

44541-11J01

$5.12

5

BRACKET, FUEL TANK RR

44550-06G10

Unavailable

6

BOLT (8X16)

01550-0816A

$2.32

7

CUSHION,FUEL TANK RR LWR

44545-06G00

$18.25

8

CUSHION,FUEL TANK RR UPR

44542-06G00

$16.78

9

BRACKET,FUEL TANK RR UP

44530-06G00

Unavailable

10

BOLT (8X35)

01550-0835A

$3.04

11

FASTENER

44572-44G00

$10.18

12

SHIELD, FUEL TANK CENTER

44194-11J00

$80.88

13

BRACKET, FR COVER

44154-11J00

$10.98

14

SCREW (6X25)

09139-06192

$3.23

15

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

$4.11

16

WASHER, FUEL TANK FRONT

44512-16G00

$7.44

17

BRACKET, FUEL TANK FR

44520-11J00

Unavailable

18

BOLT

01550-0620B

$2.39

19

BRACKET, FR SIDE

44560-11J00

Unavailable

20

CUSHION, FRONT SIDE BRACKET

44542-11J00

$4.87

21

BOLT

01550-0612A

$1.97

22

MOLDING, FUEL TANK

68241-11J01

$17.95

23

BRACKET, FUEL TANK COVER RH

44179-11J00

$5.22

24

BRACKET, FUEL TANK COVER LH

44189-11J00

$4.45

25

FASTENER, FUEL TANK

44572-13G00

$11.07

26

CUSHION, FUEL TANK SIDE COVER

44183-23H00

$12.97

27

CUSHION

09329-18001

$1.91

28

BOLT

07120-0612A

$2.50

29

HOSE, FUEL TANK DRAIN NO.1

44423-11J20

Unavailable

30

HOSE, FUEL TANK DRAIN NO.2

44423-11J30

Unavailable

31

3 WAY

09367-08005

$4.83

32

HOSE,FUEL TANK BRTHR NO.1 This part replaces 44424-14J00.

44424-14J01

$9.62

33

HOSE | L:2000->690 This part replaces 09352-50823-00B.

09352-50005-00B

$13.93

34

HOSE,5X10X600 | L:600->160 This part replaces 09352-50823-600.

44421-13ER0

$10.06

35

HOSE (12X16X600) | L:600->10

09352-12163-600

Unavailable

36

3 WAY

09367-06007

$3.46

37

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74
