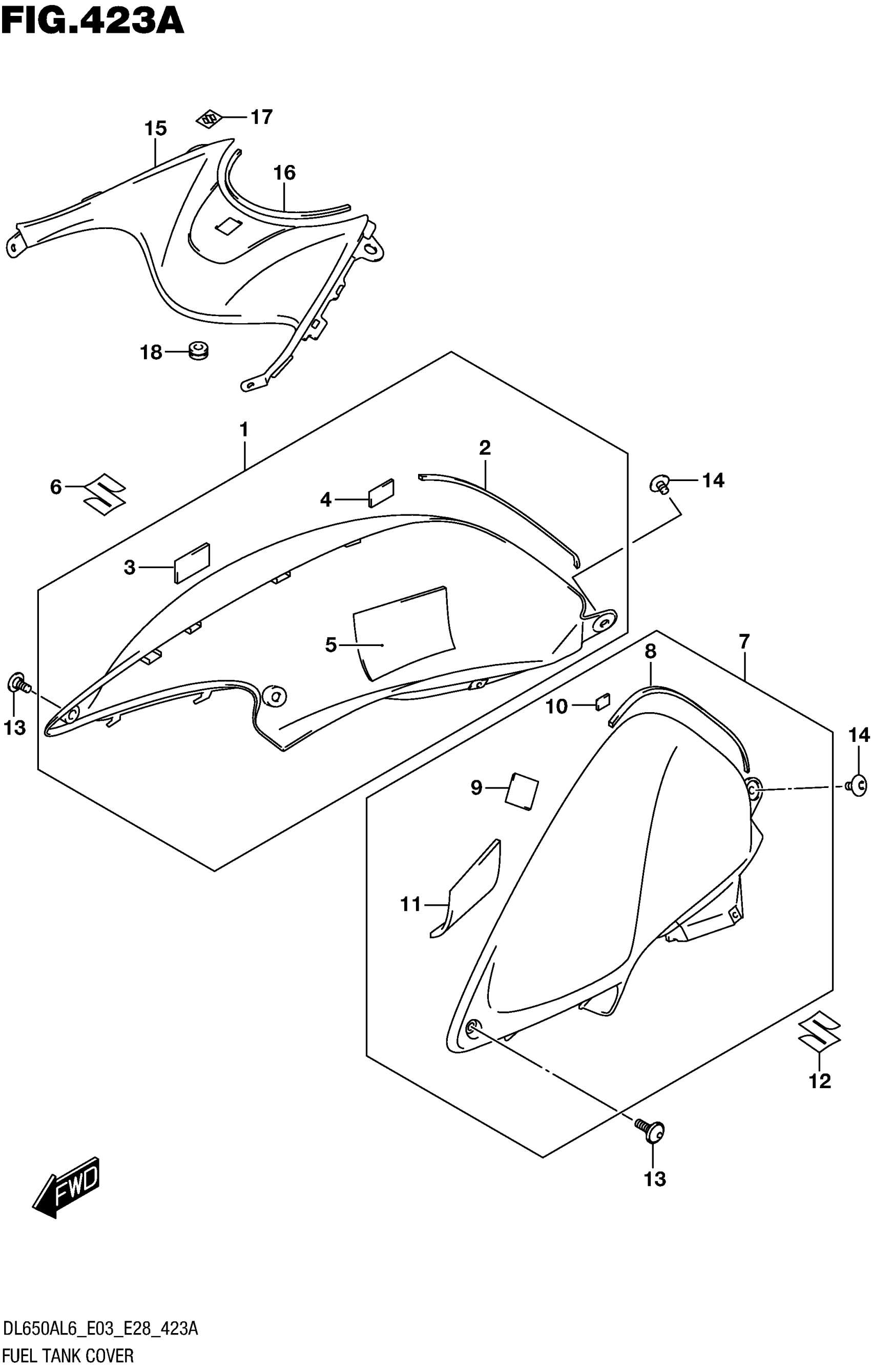

Suzuki DL650AL6 (2016) FUEL TANK COVER Diagram

#

Description
Price

1-1

COVER, SIDE RH (RED)

44170-11J00-YYG

$250.20

1-2

COVER, SIDE RH (GRAY)

44170-11J00-PGZ

$242.50

1-3

COVER, SIDE RH (BLACK)

44170-11J00-YVB

$270.62

1-4

COVER, SIDE RH (SILVER)

44170-11J00-YMD

$209.85

2

.CUSHION, SIDE COVER

44277-37H00

$5.18

3

.FASTENER, FUEL TANK

44572-13G00

$11.07

4

.FASTENER

44572-44G00

$10.18

5

.CUSHION

44278-11J00

$5.19

6

EMBLEM, "S"

68111-47HA0

$40.44

7-1

COVER, SIDE LH (RED)

44180-11J00-YYG

$254.92

7-2

COVER, SIDE LH (GRAY)

44180-11J00-PGZ

$242.50

7-3

COVER, SIDE LH (BLACK)

44180-11J00-YVB

$270.62

7-4

COVER, SIDE LH (SILVER)

44180-11J00-YMD

$209.85

8

.CUSHION, SIDE COVER

44277-37H00

$5.18

9

.FASTENER, FUEL TANK

44572-13G00

$11.07

10

.FASTENER

44572-44G00

$10.18

11

.CUSHION

44278-11J00

$5.19

12

EMBLEM, "S"

68111-47HA0

$40.44

13

SCREW (5X13)

09139-05064

$2.57

14

SCREW, FUEL TANK COVER

44193-11J00

$1.78

15

COVER, FUEL TANK FRONT

44191-11J00

$27.85

16

CUSHION, FUEL TANK FRONT COVE

44192-11J00

$4.09

17

EMBLEM, "S"

68281-47HA0

$7.77

18

CUSHION

09320-06504

$4.96
