Description

Price

1

HUB, FRONT

54111-11J00

Unavailable

2

SPACER (17.5X25X88)

09180-17067

$23.05

3

BEARING This part replaces 08133-62037.

08133-6203B

$17.61

4

OIL SEAL (24X40X7)

09282-24004

$6.57

5

RIM, FRONT WHEEL

55311-11J00

$741.43

5

(19M/CXMT2.50)

55311-11J00

$741.43

6

SPOKE, FRONT WHEEL INNER This part replaces 55321-11J00.

55321-11J01

$6.60

7

SPOKE, FRONT WHEEL OUTER This part replaces 55322-11J00.

55322-11J01

$5.62

8

NIPPLE, WHEEL

55326-11J00

$5.15

9

RING, SPEED SENSOR FR (50T)

54162-27G00

$140.15

10

BOLT

07130-0512A

$2.19

11

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

12

AXLE, FR

54711-08F10

$108.15

13

SPACER, FR AXLE LH

54750-31F00

$25.62

14

SPACER, FR AXLE RH

54751-10G01

$17.90

15

DISC,FR BRAKE

59210-44G11

$415.82

16

BOLT (8X21)

09106-08160

$3.57

17

TIRE,FR(110/80R | BRIDGESTONE This part replaces 55110-06G11.

55110-06G12

$185.88

18

WEIGHT,WHEEL BALANCE (5GRAM)

55411-11J00

$5.38

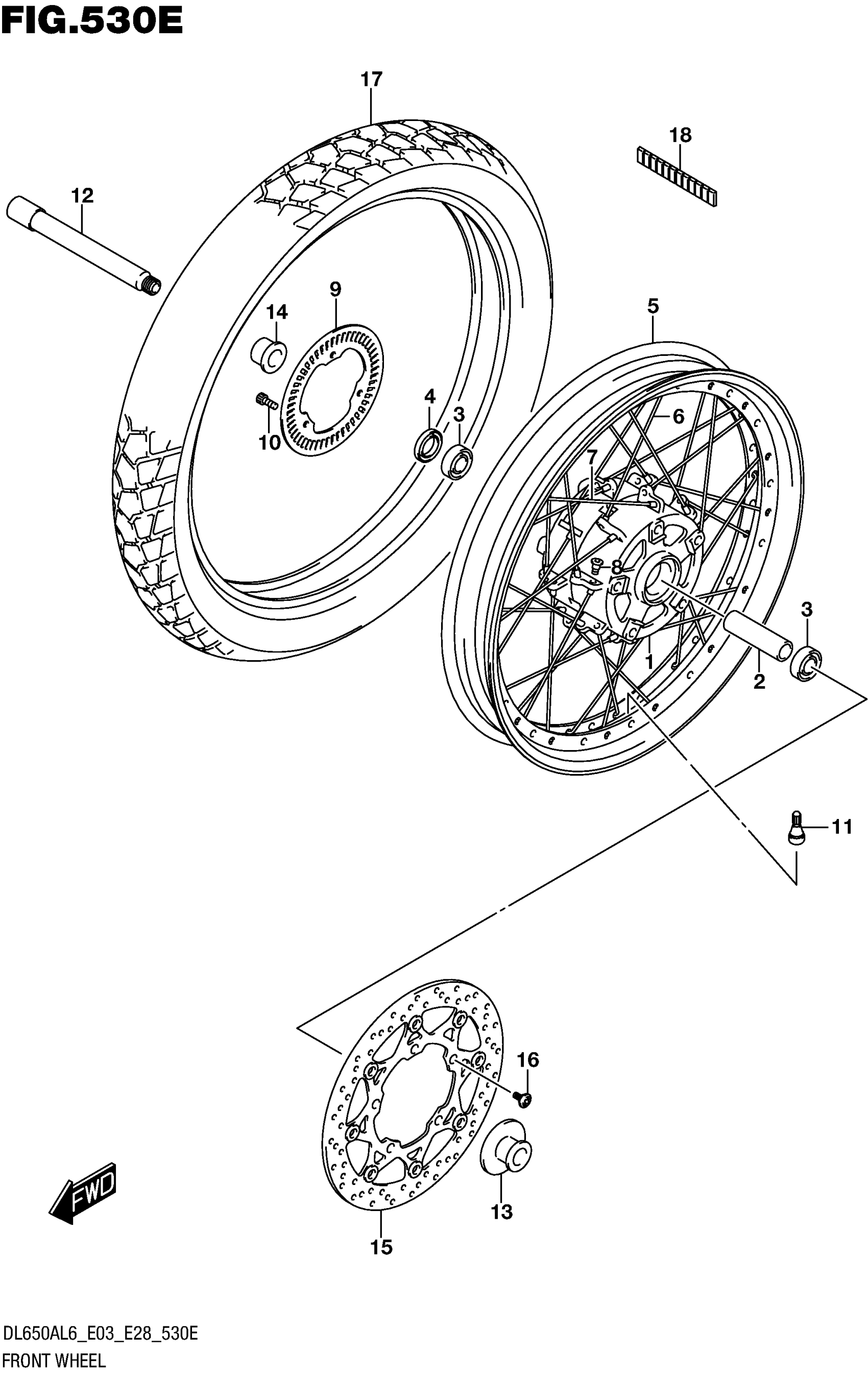

Suzuki DL650AL6 (2016) FRONT WHEEL (DL650XAL6 E33) Diagram
