2016 Suzuki DL650AL6 Front Wheel Diagram

← All diagrams

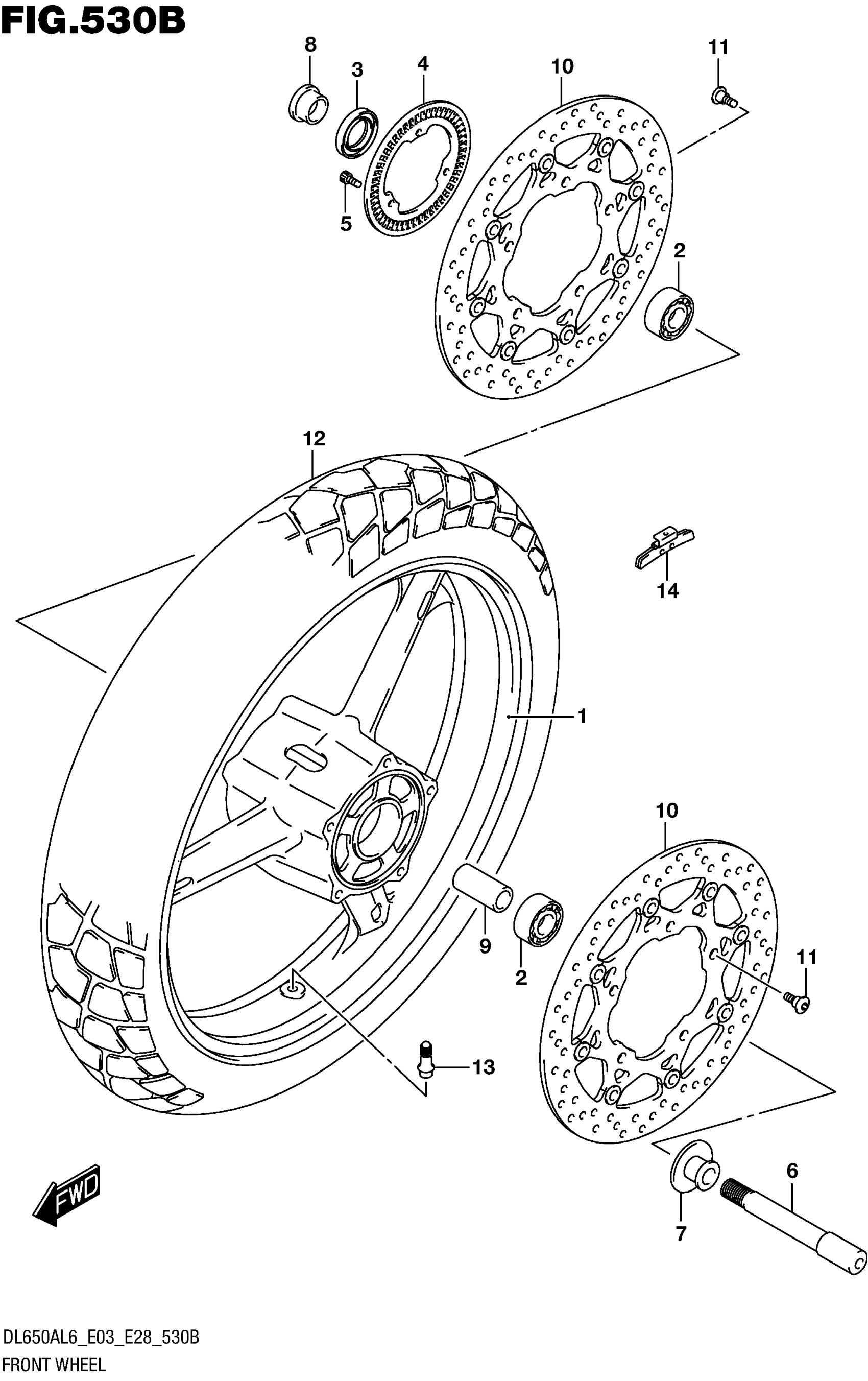

Find the part on the Front Wheel diagram for your 2016 Suzuki DL650AL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki DL650AL6 Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, FRONT (19M/CXMT2.50)

54111-27G40-019

1
Out of stock

1

(BLACK)

54111-27G40-019

1
Out of stock

2

2

$17.05

In stock

3

OIL SEAL (24X40X7)

09282-24004

1
Out of stock

4

RING, SPEED SENSOR FR (50T)

54162-27G00

1
Out of stock

5

BOLT

07130-0512A

3
Out of stock

6

AXLE, FR

54711-08F10

1
Out of stock

7

SPACER, FR AXLE LH

54750-31F00

1
Out of stock

8

SPACER, FR AXLE RH

54751-10G01

1
Out of stock

9

SPACER (17.5X25X88)

09180-17067

1
Out of stock

10

DISC,FR BRAKE

59210-44G11

2
Out of stock

11

BOLT (8X21)

09106-08160

10
Out of stock

12

TIRE,FR(110/80R | BRIDGESTONE This part replaces 55110-06G11.

55110-06G12

1
Out of stock

13

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

1
Out of stock

14-1

BALANCER, WHEEL NO.1 | 10G

43222-73H10

1
Out of stock

14-2

BALANCER, WHEEL NO.2 | 20G

43224-73H10

1
Out of stock

14-3

BALANCER, WHEEL NO.3 | 30G

43226-73H10

1
Out of stock
