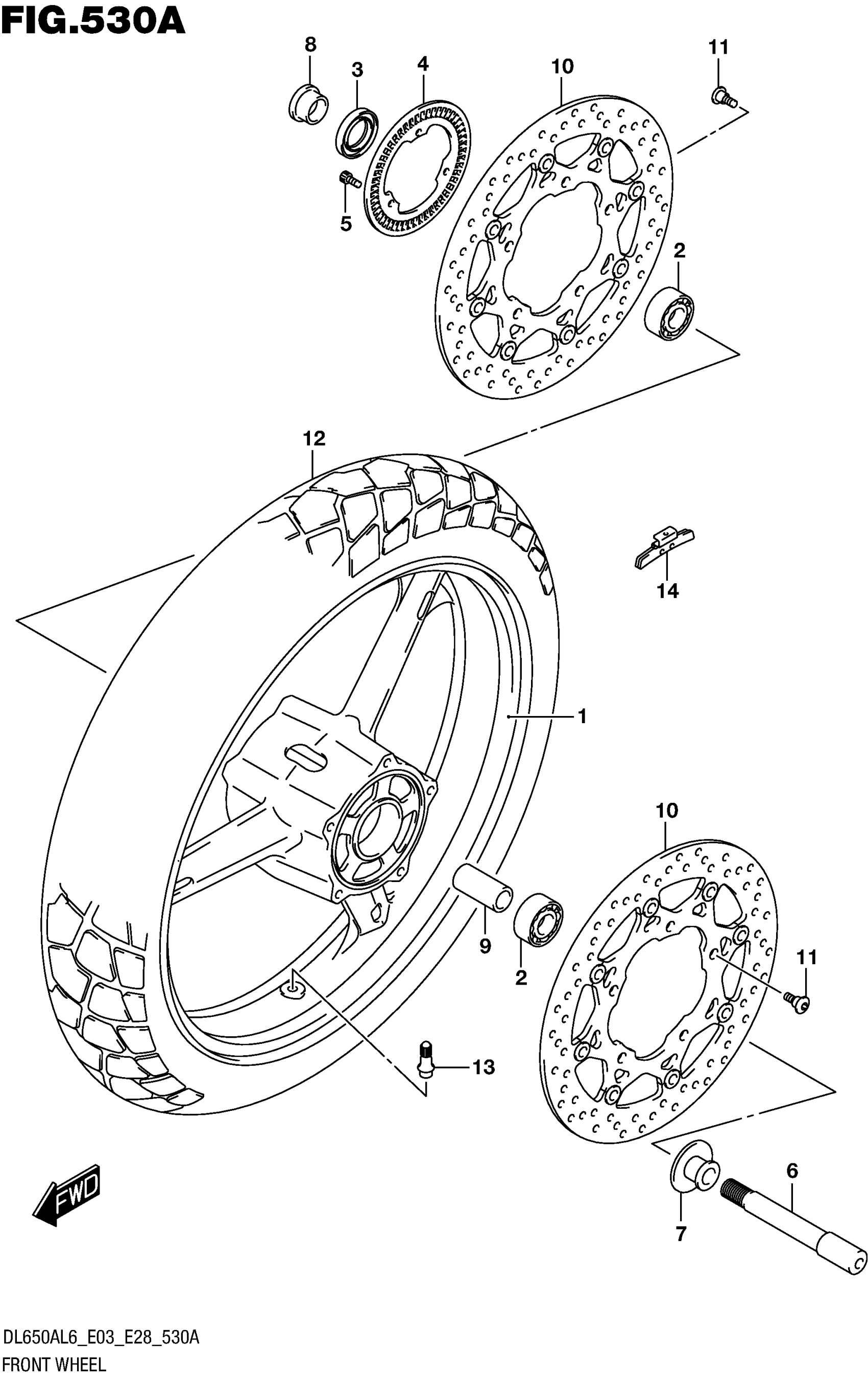

Suzuki DL650AL6 (2016) FRONT WHEEL (DL650AL6 E28) Diagram

WHEEL, FRONT (19M/CXMT2.50)

54111-27G40-019

$978.60

(BLACK)

54111-27G40-019

$978.60

BEARING This part replaces 08133-62037.

08133-6203B

$17.61

OIL SEAL (24X40X7)

09282-24004

$6.57

RING, SPEED SENSOR FR (50T)

54162-27G00

$140.15

BOLT

07130-0512A

$2.19

AXLE, FR

54711-08F10

$108.15

SPACER, FR AXLE LH

54750-31F00

$25.62

SPACER, FR AXLE RH

54751-10G01

$17.90

SPACER (17.5X25X88)

09180-17067

$23.05

DISC,FR BRAKE

59210-44G11

$415.82

BOLT (8X21)

09106-08160

$3.57

TIRE,FR(110/80R | BRIDGESTONE This part replaces 55110-06G11.

55110-06G12

$185.88

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

BALANCER, WHEEL NO.1 | 10G

43222-73H10

$5.82

BALANCER, WHEEL NO.2 | 20G

43224-73H10

$5.50

BALANCER, WHEEL NO.3 | 30G

43226-73H10

$6.42
