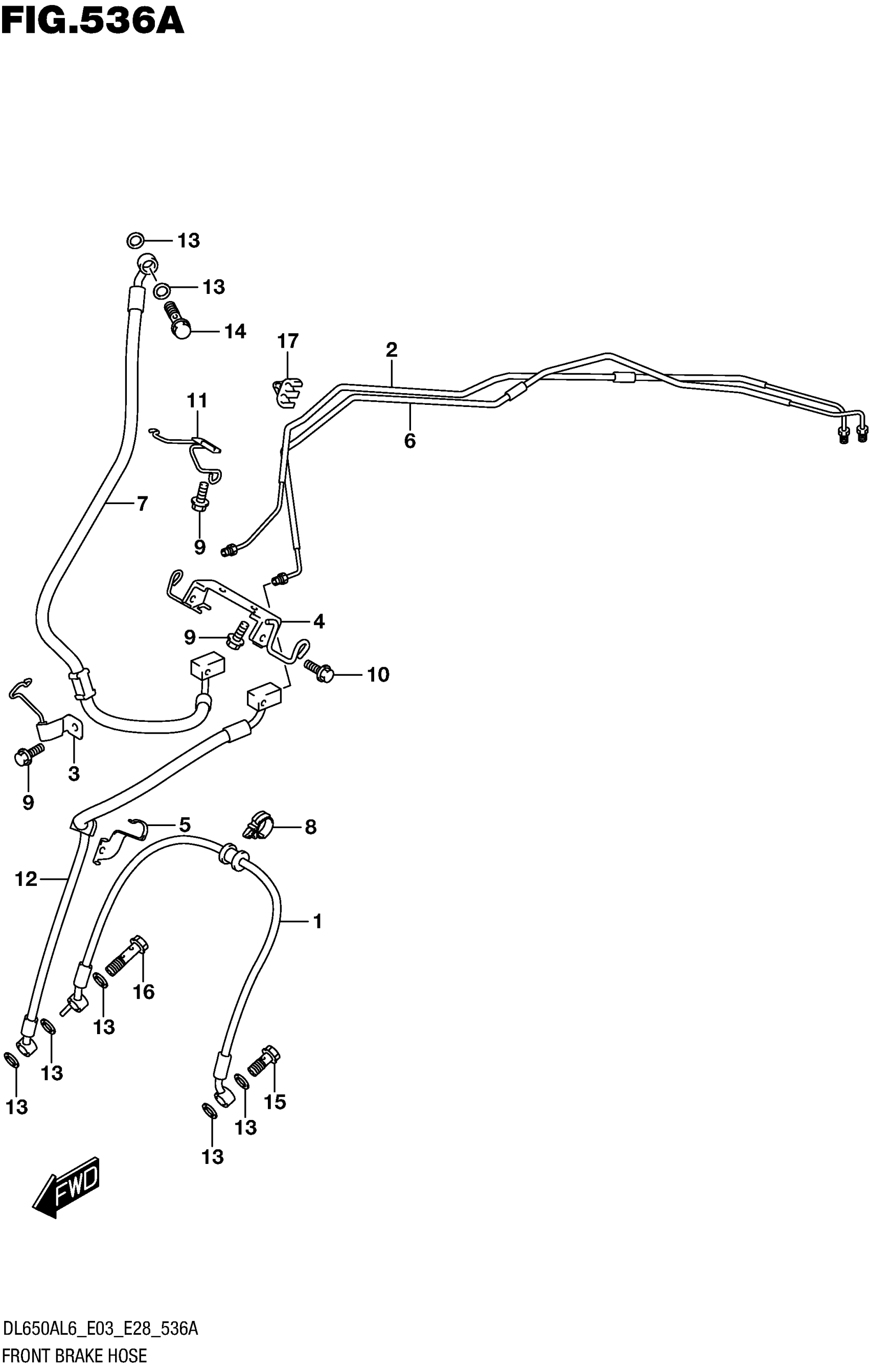

Suzuki DL650AL6 (2016) FRONT BRAKE HOSE Diagram

#

Description
Price

1

HOSE, FR BRAKE NO.2

59240-11J00

$121.23

2

PIPE, FRONT BRAKE NO.1

59250-11J00

$31.75

3

CLAMP, FR BRAKE HOSE

59260-06G10

$19.57

4

CLAMP, FR BRAKE HOSE NO.2

59260-11J00

Unavailable

5

CLAMP, FR BRAKE HOSE RH

59268-11J00

Unavailable

6

PIPE, FRONT BRAKE NO.2

59450-11J00

$31.75

7

HOSE, FR BRAKE NO.1 This part replaces 59480-11J00.

59480-11J01

$101.47

8

CLAMP

09403-16412

$3.37

9

BOLT

01547-0612A

$2.03

10

BOLT

01547-0616A

$2.03

11

GUIDE, FR BRAKE HOSE

59540-11J00

Unavailable

12

HOSE, FR BRAKE NO.3 This part replaces 59560-11J00.

59560-11J01

$94.80

13

WASHER (10X15X1.5)

09161-10009

$1.84

14

UNION

09360-10062

$6.43

15

UNION

09360-10062

$6.43

16

UNION

09360-10064

$6.43

17

CLAMP

09403-07334

Unavailable
