2016 Suzuki DL650AL6 Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2016 Suzuki DL650AL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

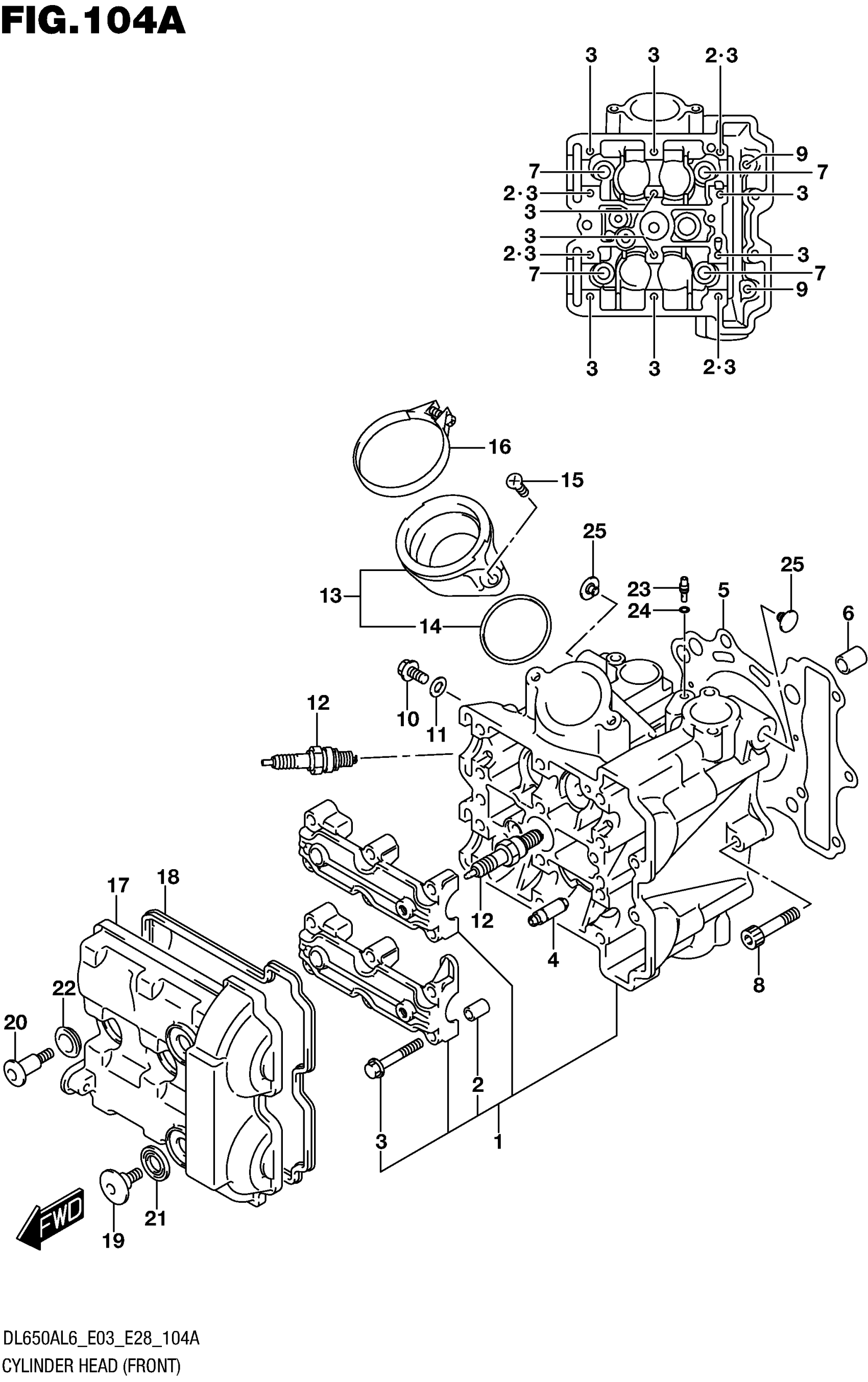

2016 Suzuki DL650AL6 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY,CYLINDER FRONT This part replaces 11101-44H00.

11101-44H01

1
Out of stock

2

.PIN (8X11)

09206-08001

4
Out of stock

3

.BOLT (6X40)

09103-06266

12
Out of stock

4

GUIDE, VALVE (OS:0.3) | OPT

11115-18D72

4
Out of stock

5

.GASKET,CYLINDER HEAD

11141-20F00

1
Out of stock

6

PIN

04211-13189

2
Out of stock

7

BOLT,CYL HEAD (L:160)

11117-44H00

4
Out of stock

8

BOLT

07120-0640A

1
Out of stock

9

BOLT (6X70)

09103-06103

2
Out of stock

10

BOLT

01550-0612A

1
Out of stock

11

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

12-1

SPARK PLUG (CR8EIA-9) | NGK

09482-00556

2
Out of stock

12-2

SPARK PLUG (IU24D) | DENSO

09482-00555

2
Out of stock

12-3

SPARK PLUG (CR9EIA-9) | OPT

09482-00558

2
Out of stock

12-3

PLUG,SPARK (CR9EIA-9) | NGK

09482-00558

1
Out of stock

12-4

SPARK PLUG (IU27D) | OPT

09482-00557

2
Out of stock

12-4

PLUG,SPARK (IU27D) | DENSO

09482-00557

1
Out of stock

12-5

SPARK PLUG (CR7EIA-9) | OPT

09482-00554

2
Out of stock

12-5

PLUG,SPARK (CR7EIA-9) | NGK

09482-00554

1
Out of stock

13

PIPE ASSY,INTAKE FRONT This part replaces 13101-17G10.

13101-17G11

1
Out of stock

14

.O-RING (D:2.4,ID:47X42) This part replaces 09280-46006.

09280-46007

1
Out of stock

15

SCREW

02122-0616B

2
Out of stock

16

CLAMP,INTAKE PIPE

13827-40H01

1
Out of stock

17

COVER,CYLINDER HEAD FR

11171-19F20

1
Out of stock

18

.GASKET,CYLINDER HEAD COVER

11173-19F01

1
Out of stock

19

BOLT (7X17.5) This part replaces 09106-07009.

09106-07021

2
Out of stock

20

BOLT (7X31)

09106-07010

1
Out of stock

21

WASHER

11191-27E00

2
Out of stock

22

CUSHION,HEAD COVER BOLT

11192-13E00

1
Out of stock

23

JET(8)

09493-80005

1
Out of stock

24

O RING (D:1.2,ID:4)

09280-04004

1
Out of stock

25

CAP,ENGINE MOUNTING RR RH This part replaces 11151-27G00.

11151-27G01

2
Out of stock
