2016 Suzuki DL650AL6 Camshaft/valve Diagram

← All diagrams

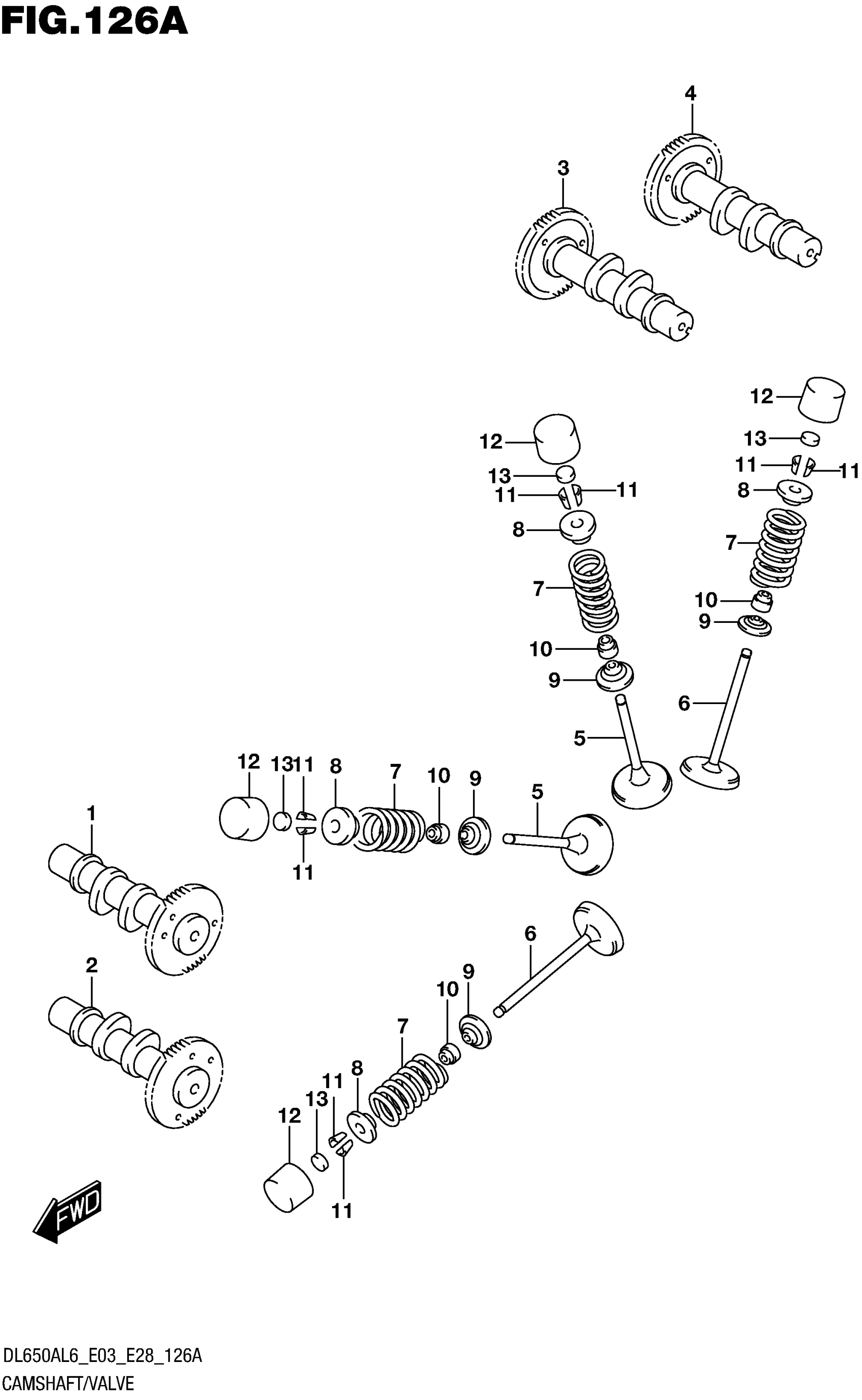

Find the part on the Camshaft/valve diagram for your 2016 Suzuki DL650AL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki DL650AL6 Camshaft/valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAMSHAFT, INTAKE FR (NT:36)

12710-11J00

1
Out of stock

2

CAMSHAFT, EXHAUST FRONT

12720-20F00

1
Out of stock

2

(NT:36)

12720-20F00

1
Out of stock

3

CAMSHAFT, INTAKE RR (NT:36)

12730-11J00

1
Out of stock

4

CAMSHAFT, EXHAUST REAR (NT:36

12740-20F00

1
Out of stock

5

VALVE,INTAKE

12911-18H00

4
Out of stock

6

VALVE,EXHAUST

12912-20F00

4
Out of stock

7

SPRING,VALVE

12921-44H00

8
Out of stock

8

RETAINER,VALVE SPRING

12931-17E01

8
Out of stock

9

SEAT,VALVE SPRING

12933-17E00

8
Out of stock

10

OIL SEAL (4.5X10X8)

09289-04002

8
Out of stock

11

COTTER, VALVE

12932-32C00

16
Out of stock

12

TAPPET This part replaces 12891-17E00.

12891-47H00

8
Out of stock

13-1

SHIM, TAPPET (T:1.20)

12892-05C00-120

8
Out of stock

13-2

SHIM, TAPPET (T:1.25)

12892-05C00-125

8
Out of stock

13-3

SHIM, TAPPET (T:1.30)

12892-05C00-130

8
Out of stock

13-4

SHIM, TAPPET (T:1.35)

12892-05C00-135

8
Out of stock

13-5

SHIM, TAPPET (T:1.40)

12892-05C00-140

8
Out of stock

13-6

SHIM, TAPPET (T:1.45)

12892-05C00-145

8
Out of stock

13-7

SHIM, TAPPET (T:1.50)

12892-05C00-150

8
Out of stock

13-8

SHIM, TAPPET (T:1.55)

12892-05C00-155

8
Out of stock

13-9

SHIM, TAPPET (T:1.60)

12892-05C00-160

8
Out of stock

13-10

SHIM, TAPPET (T:1.65)

12892-05C00-165

8
Out of stock

13-11

SHIM, TAPPET (T:1.70)

12892-05C00-170

8
Out of stock

13-12

SHIM, TAPPET (T:1.75)

12892-05C00-175

8
Out of stock

13-13

SHIM, TAPPET (T:1.80)

12892-05C00-180

8
Out of stock

13-14

SHIM, TAPPET (T:1.85)

12892-05C00-185

8
Out of stock

13-15

SHIM, TAPPET (T:1.90)

12892-05C00-190

8
Out of stock

13-16

SHIM, TAPPET (T:1.95)

12892-05C00-195

8
Out of stock

13-17

SHIM, TAPPET (T:2.00)

12892-05C00-200

8
Out of stock

13-18

SHIM, TAPPET (T:2.05)

12892-05C00-205

8
Out of stock

13-19

SHIM, TAPPET (T:2.10)

12892-05C00-210

8
Out of stock

13-20

SHIM, TAPPET (T:2.15)

12892-05C00-215

8
Out of stock

13-21

SHIM, TAPPET (T:2.20)

12892-05C00-220

8
Out of stock

14

SHIM SET, TAPPET | OPT

12800-05830

1
Out of stock

14

T:1.20, 1.25...2.15, 2.20 | NOT ILLUSTRATED

12800-05830

1
Out of stock

14

(5PCS.EACH) & CASE

12800-05830

1
Out of stock

15

.CASE, TAPPET SHIM | OPT

99000-69491

1
Out of stock

15

.CASE,TAPPET SHIM | NOT ILLUSTRATED

99000-69491

1
Out of stock
