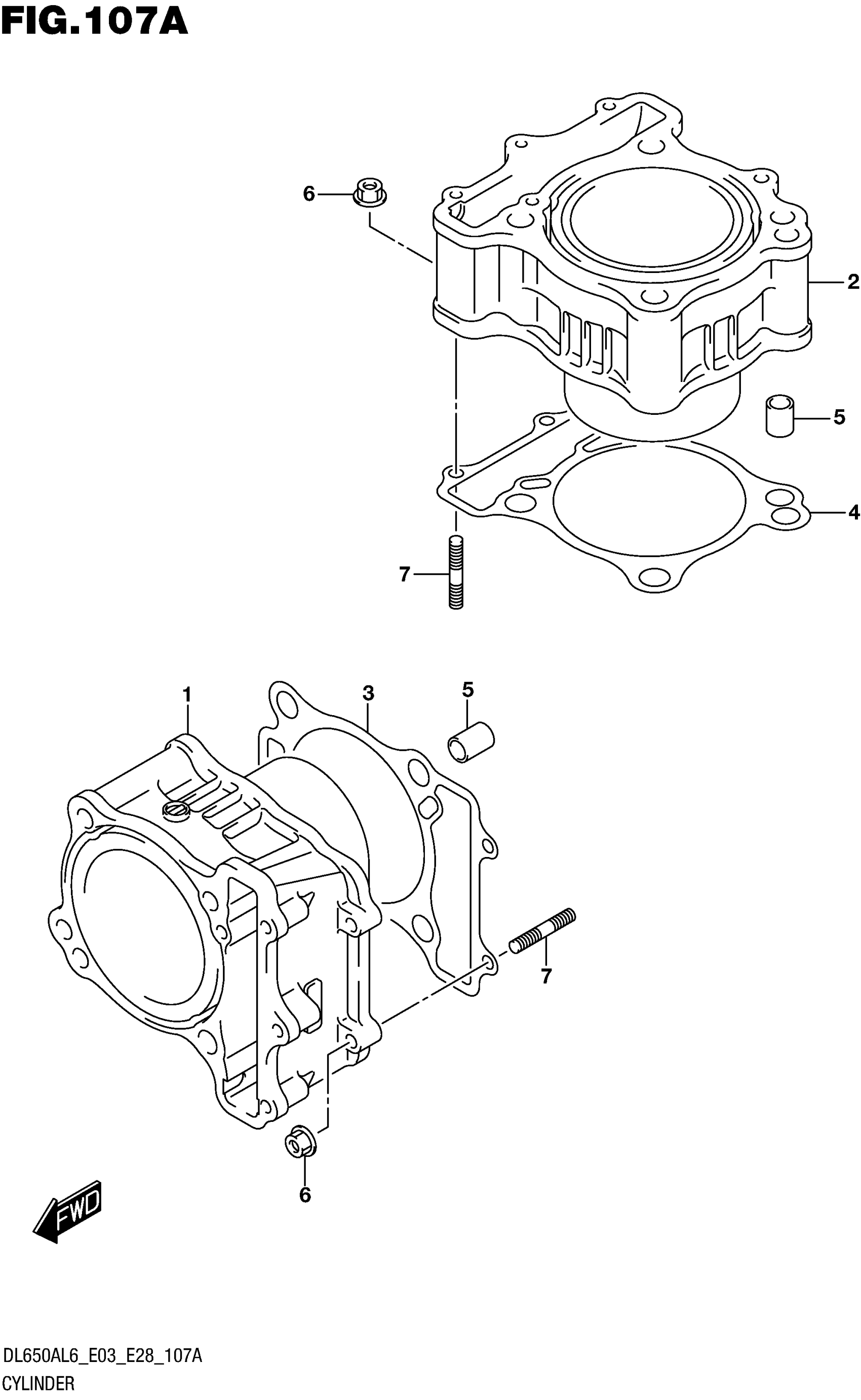

Suzuki DL650AL6 (2016) CYLINDER Diagram

#

Description

Price

1

CYLINDER,FR

11211-44H00-0F0

Unavailable

2

CYLINDER,RR

11221-44H00-0F0

Unavailable

3

.GASKET,CYLINDER FR

11241-19F10

$23.13

4

.GASKET,CYLINDER RR

11242-19F00

$13.29

5

PIN

04211-13189

$2.19

6

NUT

08316-1006B

$2.50

7

BOLT,STUD

01421-0625B

$2.30
