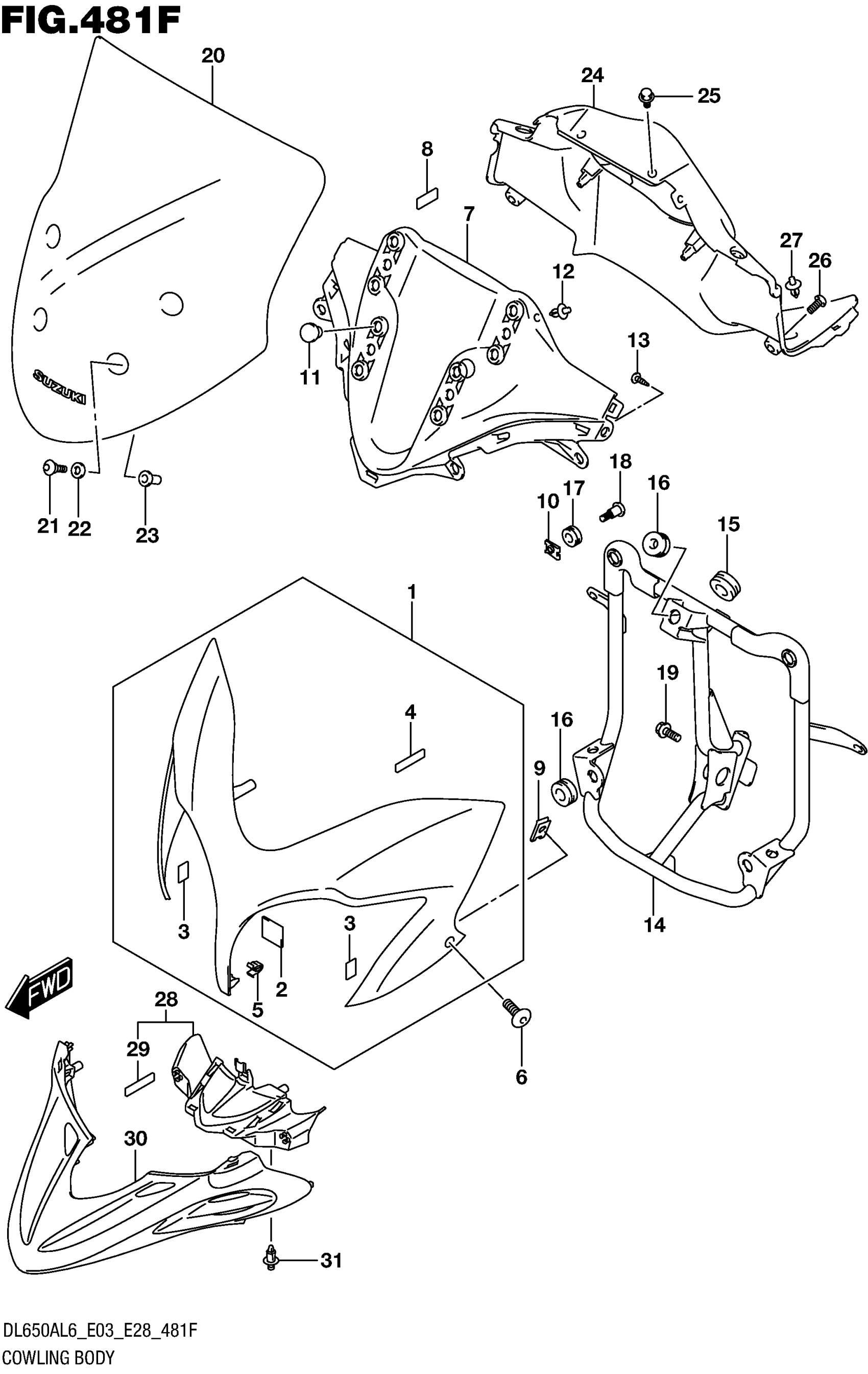

Suzuki DL650AL6 (2016) COWLING BODY (DL650XAL6 E03) Diagram

#

Description
Price

1-1

COWLING,BODY(RE This part replaces 94410-11J00-YYG.

94410-11J01-YYG

$245.97

1-2

COWLING,BODY(GR This part replaces 94410-11J00-PGZ.

94410-11J01-PGZ

$241.42

1-3

COWLING,BODY(BL This part replaces 94410-11J00-YVB.

94410-11J01-YVB

$245.97

1-4

BODY, COWLING (SILVER)

94410-11J00-YMD

$240.85

2

.FASTENER

44572-02F01

$10.13

3

.FASTENER, COWLING

44572-37H00

$9.01

4

.TAPE, FRONT PANEL

94443-06G00

$2.97

5

.CLIP

09409-08326

$2.45

6

SCREW (5X13)

09139-05064

$2.56

7

PANEL, FRONT

94414-11J00

$36.92

8

CUSHION, FRONT PANEL

94612-31F00

$5.62

9

NUT

09148-05052

$3.04

10

NUT

09148-06020

$4.01

11

CAP (OD:15) This part replaces 09250-10010.

09250-10030

$1.67

12

CLIP

09409-06329

$2.80

13

SCREW

03241-0512A

$1.36

14

BRACE, COWLING

94510-11J01

$350.47

15

CUSHION,SPEEDOMETER This part replaces 34955-13E00.

34955-13E01

$2.80

16

CUSHION

09320-08028

$2.80

17

CUSHION

09320-09016

$1.97

18

SCREW (6X20)

09139-06126

$3.65

19

BOLT

01550-0820A

$2.25

20

WINDSCREEN

94611-11J00

$270.95

21

SCREW (5X18)

09139-05032

$2.00

22

WASHER

09160-05048

$1.76

23

NUT

09159-05019

$6.44

24

PANEL, METER

94631-11J00

$94.97

25

BOLT (5X13)

09139-05074

$2.58

26

SCREW (6X16)

09139-06120

$2.80

27

CLIP

09409-06329

$2.80

28

COVER, COWLING UPPER (SILVER)

94460-11J00-YMC

$81.83

29

.TAPE, UPPER COWLING

94443-06G00

$2.97

30

COVER, COWLING LOWER

94465-11J00

$64.92

31

CLIP

09409-06329

$2.80
