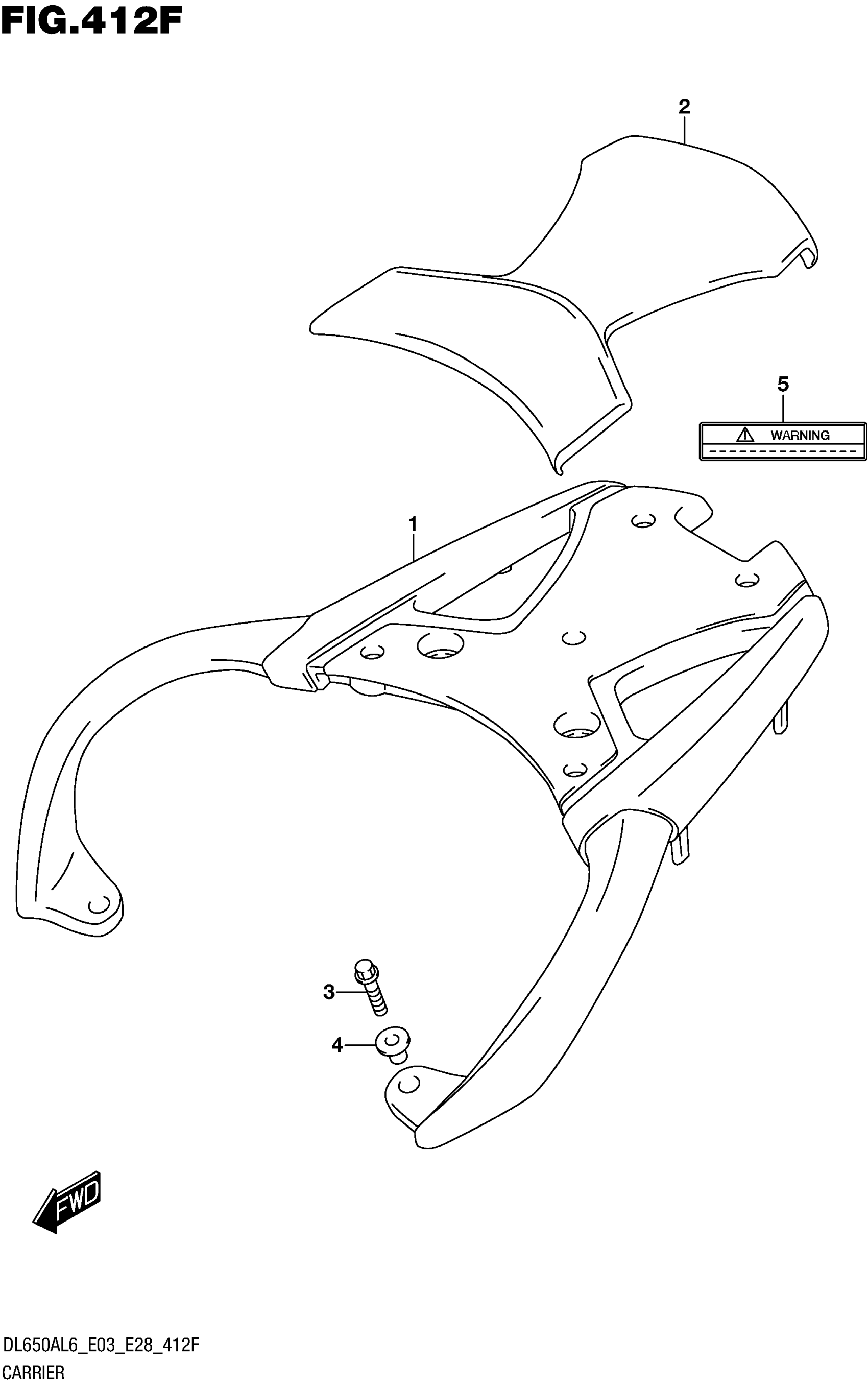

Suzuki DL650AL6 (2016) CARRIER (DL650XAL6 E03) Diagram

#

Description

Price

1

CARRIER, SPORT (BLACK)

46311-11J00-YKV

$495.38

2

MAT, CARRIER

46321-11J00

$44.07

3

BOLT (8X35)

09103-08512

$2.92

4

WASHER

09169-08049

$4.11

5

LABEL,LOADING CAPACITY This part replaces 68391-06G80.

68391-06G81

$8.98

5

LABEL,LOADING CAPACITY This part replaces 68391-06G80.

68391-06G81

$8.98
