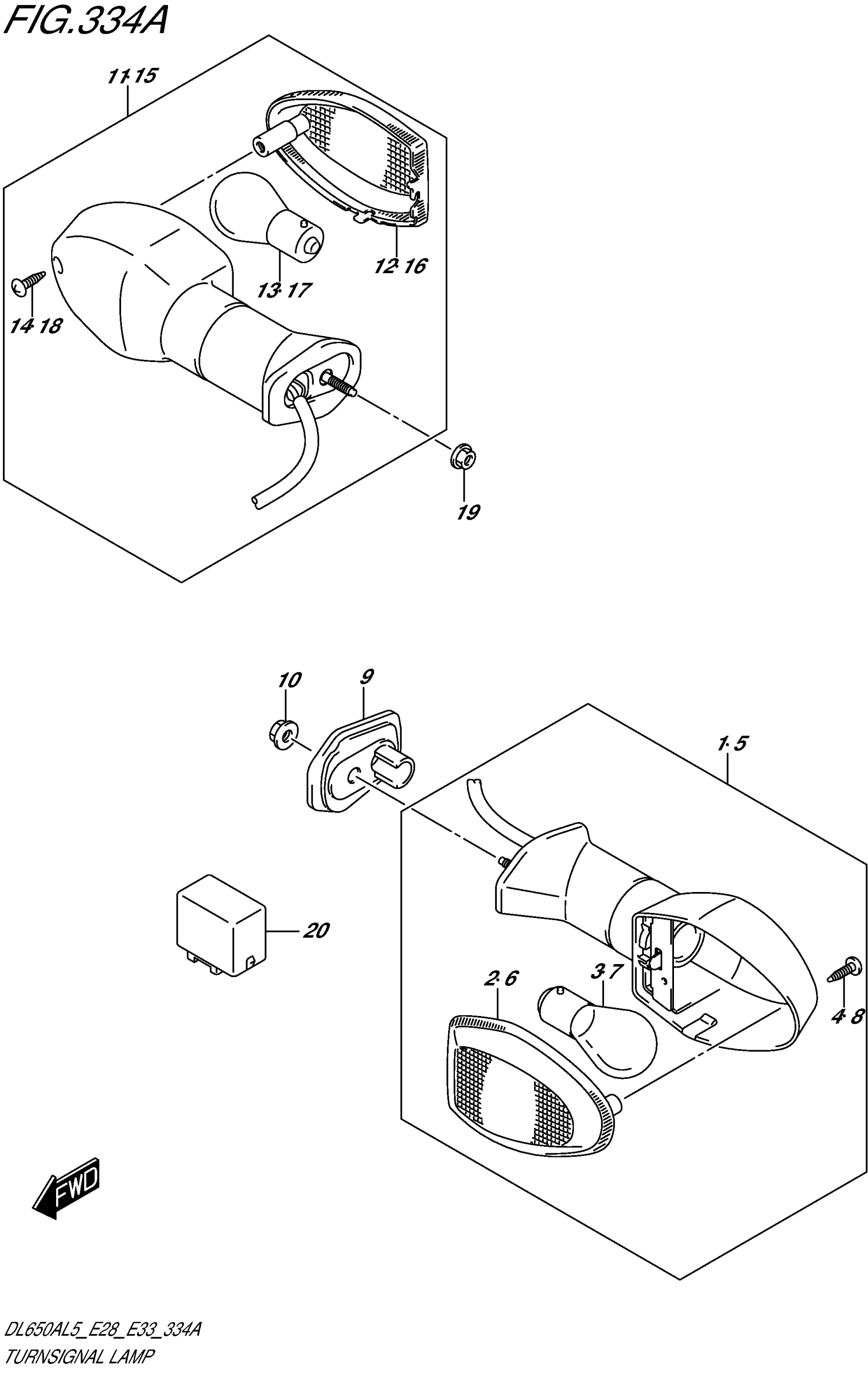

Suzuki DL650AL5 (2015) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FR TURNSIGNAL RH

35601-08J01

$107.67

2

LENS

35612-08J01

$13.82

3

BULB (12V,21W)

09471-12045

$2.95

4

SCREW

03211-0414B

$1.93

5

LAMP ASSY, FR TURNSIGNAL LH

35602-08J01

$105.63

6

LENS

35632-08J01

$13.65

7

BULB (12V,21W)

09471-12045

$2.95

8

SCREW

03211-0414B

$1.93

9

PLATE, FR TURNSIGNAL

35629-18G00

$2.32

10

NUT

08316-1005A

$2.19

11

LAMP ASSY, RR TURNSIGNAL RH

35603-08J11

$207.91

12

LENS

35632-08J01

$13.65

13

BULB (12V,21W)

09471-12045

$2.95

14

SCREW

03211-0414B

$1.93

15

LAMP ASSY, RR TURNSIGNAL LH

35604-08J11

$154.02

16

LENS

35612-08J01

$13.82

17

BULB (12V,21W)

09471-12045

$2.95

18

SCREW

03211-0414B

$1.93

19

NUT

08319-3105A

$2.47

20

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$81.99
