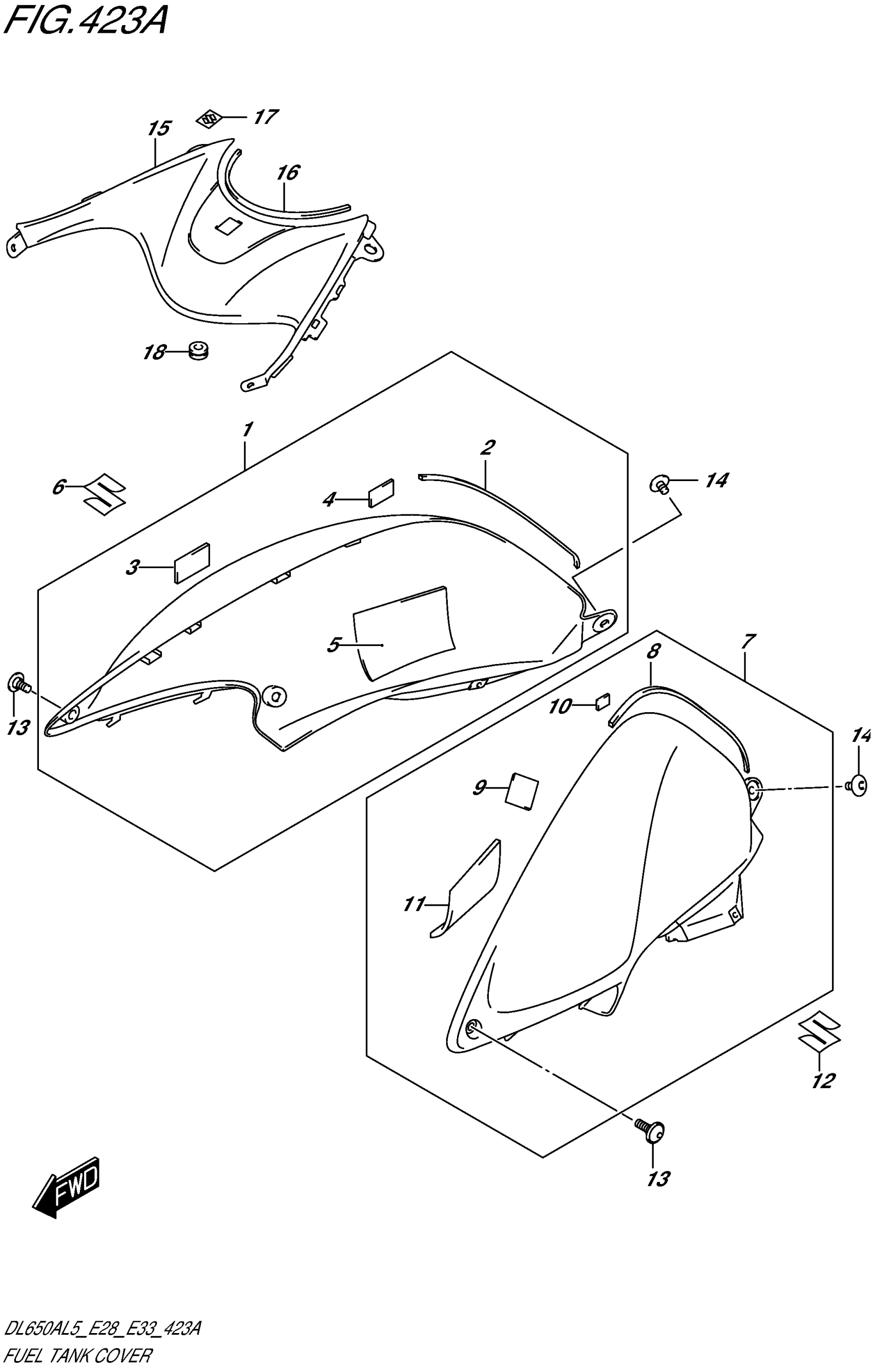

Suzuki DL650AL5 (2015) FUEL TANK COVER Diagram

#

Description
Price

1

COVER, SIDE RH (WHITE)

44170-11J00-RB5

$254.92

1

COVER, SIDE RH (RED)

44170-11J00-YYG

$250.20

1

COVER, SIDE RH (BLUE)

44170-11J00-YSF

$249.35

1

COVER, SIDE RH (GRAY)

44170-11J00-PGZ

$242.50

2

CUSHION, SIDE COVER

44277-37H00

$5.18

3

FASTENER, FUEL TANK

44572-13G00

$11.07

4

FASTENER

44572-44G00

$10.18

5

CUSHION

44278-11J00

$5.19

6

EMBLEM, "S"

68111-47HA0

$40.44

7

COVER, SIDE LH (WHITE)

44180-11J00-RB5

$257.73

7

COVER, SIDE LH (RED)

44180-11J00-YYG

$254.92

7

COVER, SIDE LH (BLUE)

44180-11J00-YSF

$249.35

7

COVER, SIDE LH (GRAY)

44180-11J00-PGZ

$242.50

8

CUSHION, SIDE COVER

44277-37H00

$5.18

9

FASTENER, FUEL TANK

44572-13G00

$11.07

10

FASTENER

44572-44G00

$10.18

11

CUSHION

44278-11J00

$5.19

12

EMBLEM, "S"

68111-47HA0

$40.44

13

SCREW (5X13)

09139-05064

$2.57

14

SCREW, FUEL TANK COVER

44193-11J00

$1.78

15

COVER, FUEL TANK FRONT

44191-11J00

$27.85

16

CUSHION, FUEL TANK FRONT COVER

44192-11J00

$4.09

17

EMBLEM, "S"

68281-47HA0

$7.77

18

CUSHION

09320-06504

$4.96
