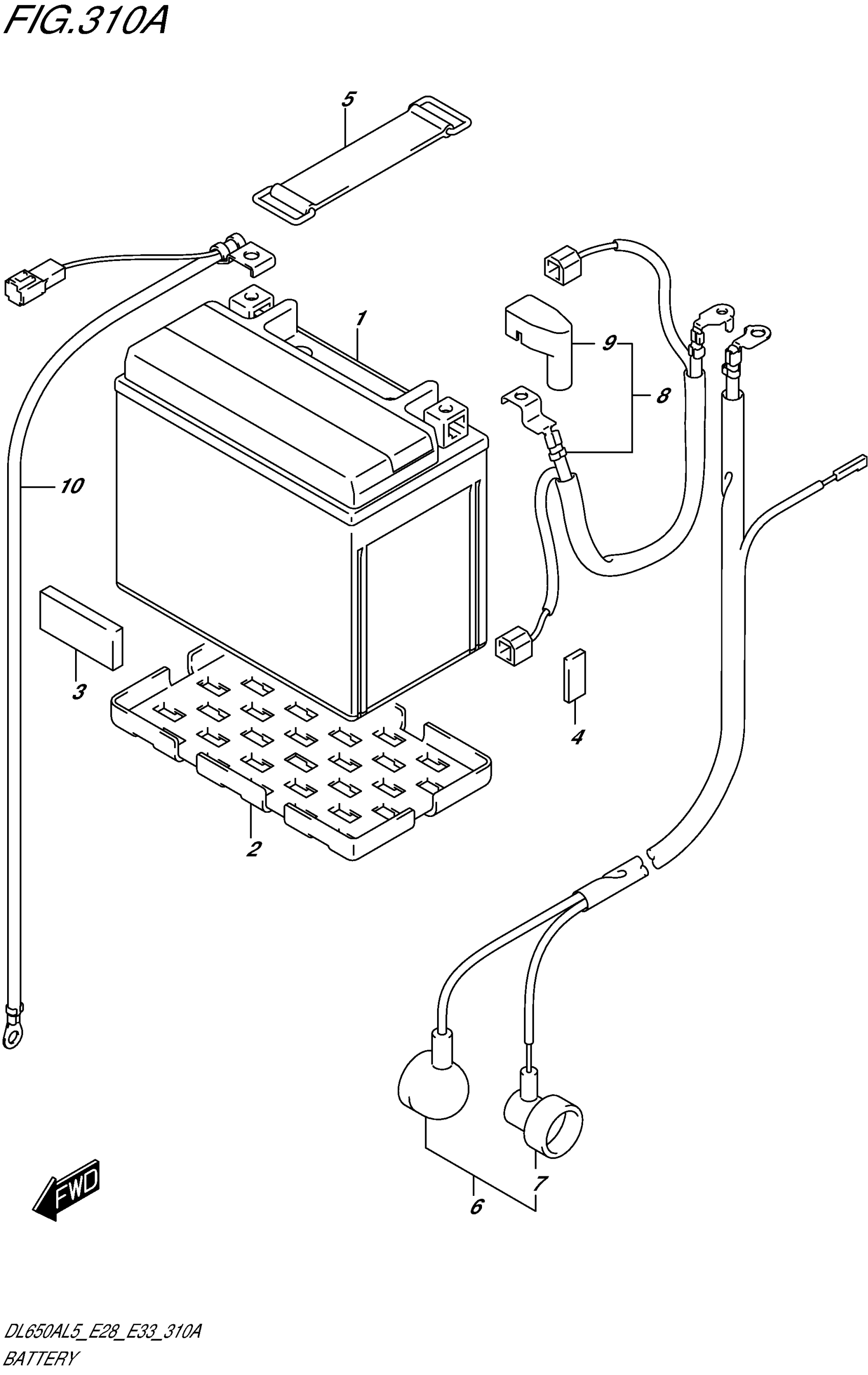

Suzuki DL650AL5 (2015) BATTERY Diagram

#

Description

Price

1

BATTERY (FTX12-BS,12V,10AH) This part replaces 33610-48E21.

33610-48E20

$98.67

2

PROTECTOR,BATTERY

33652-16G00

$11.95

3

CUSHION, REAR FENDER REAR | CUT AS REQUIRED This part replaces 33652-08420.

33651-37000

$4.48

4

PROTECTOR (20X40X3.0) | CUT AS REQUIRED

44543-10G00

$5.56

5

BAND

09462-00007

$4.11

6

WIRE, STARTER MOTOR LEAD This part replaces 33810-27G20.

33810-27G21

Unavailable

7

CAP, OIL PRESSURE SWITCH

36618-43410

$2.90

8

WIRE,BATTERY PL This part replaces 33820-27G10.

33820-27G11

$49.28

9

.CAP, BATTERY PLUS LEAD (+)

33624-27G00

$9.90

10

WIRE, BATTERY (-)LEAD

33860-27G10

$44.53
