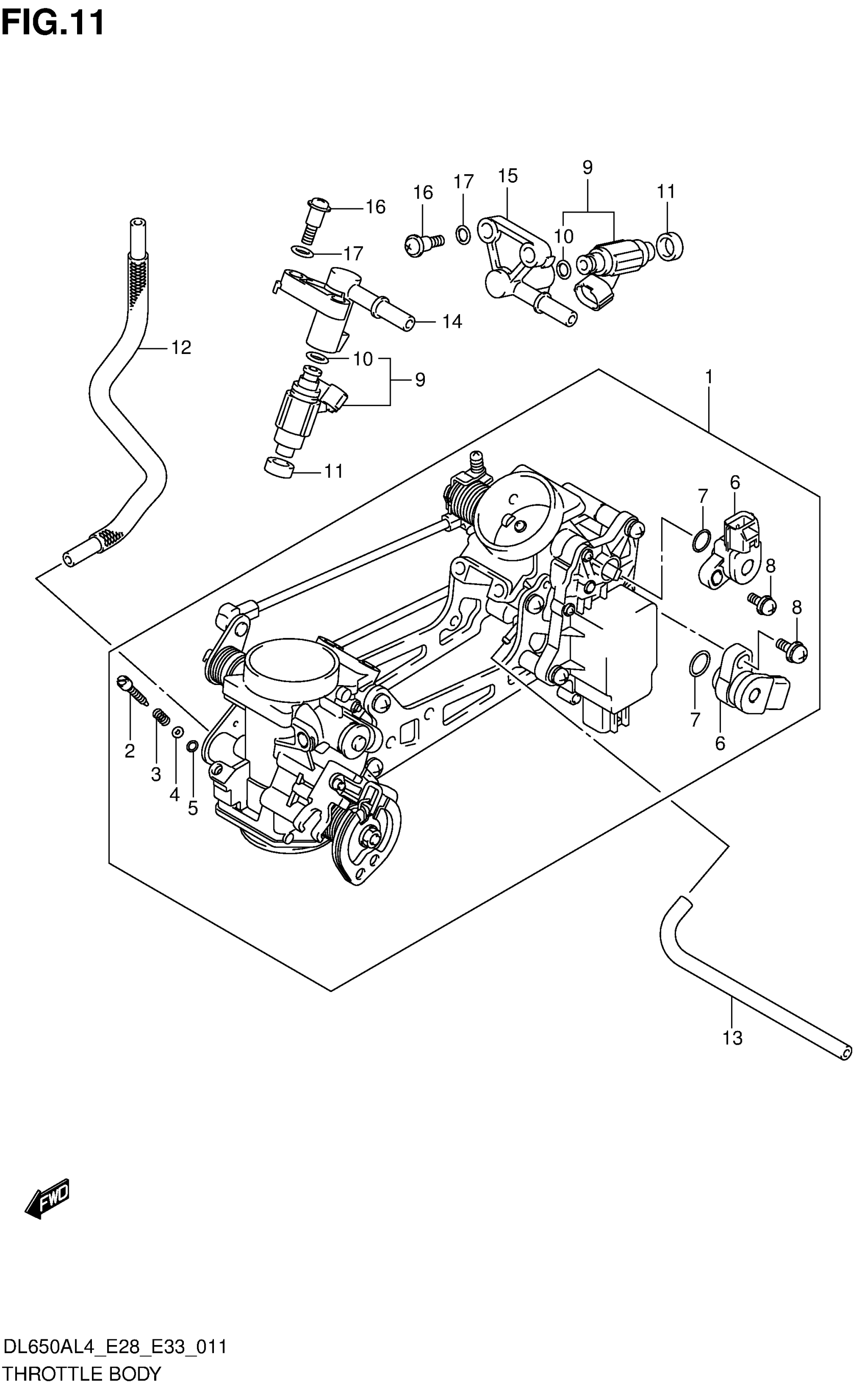

Suzuki DL650AL4 (2014) THROTTLE BODY (DL650AL4 E28) Diagram

Description

Price

THROTTLE BODY

13405-11J00

Unavailable

SCREW

13269-33E00

$11.10

SPRING,THROTTLE SCREW

13268-48700

$4.34

WASHER

13606-47A00

$3.28

O-RING This part replaces 13295-29900.

13295-29901

$4.34

SENSOR ASSY

13580-27G21

$145.53

.O-RING This part replaces 13575-29G00.

13575-29G01

$3.15

SCREW

13605-02F00

$3.71

INJECTOR ASSY

15710-44H00

$327.02

.O-RING

15717-58B00

$9.95

SEAL

15722-29G00

$10.93

HOSE

13683-44H00

Unavailable

HOSE This part replaces 13683-44H10.

13683-44H11

$18.20

DELIVERY PIPE

15731-11J00

Unavailable

DELIVERY PIPE

15732-11J00

Unavailable

SCREW

13601-11J00

$4.79

PACKING This part replaces 13602-29G00.

13602-29G01

$2.43
