2014 Suzuki DL650AL4 Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 2014 Suzuki DL650AL4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

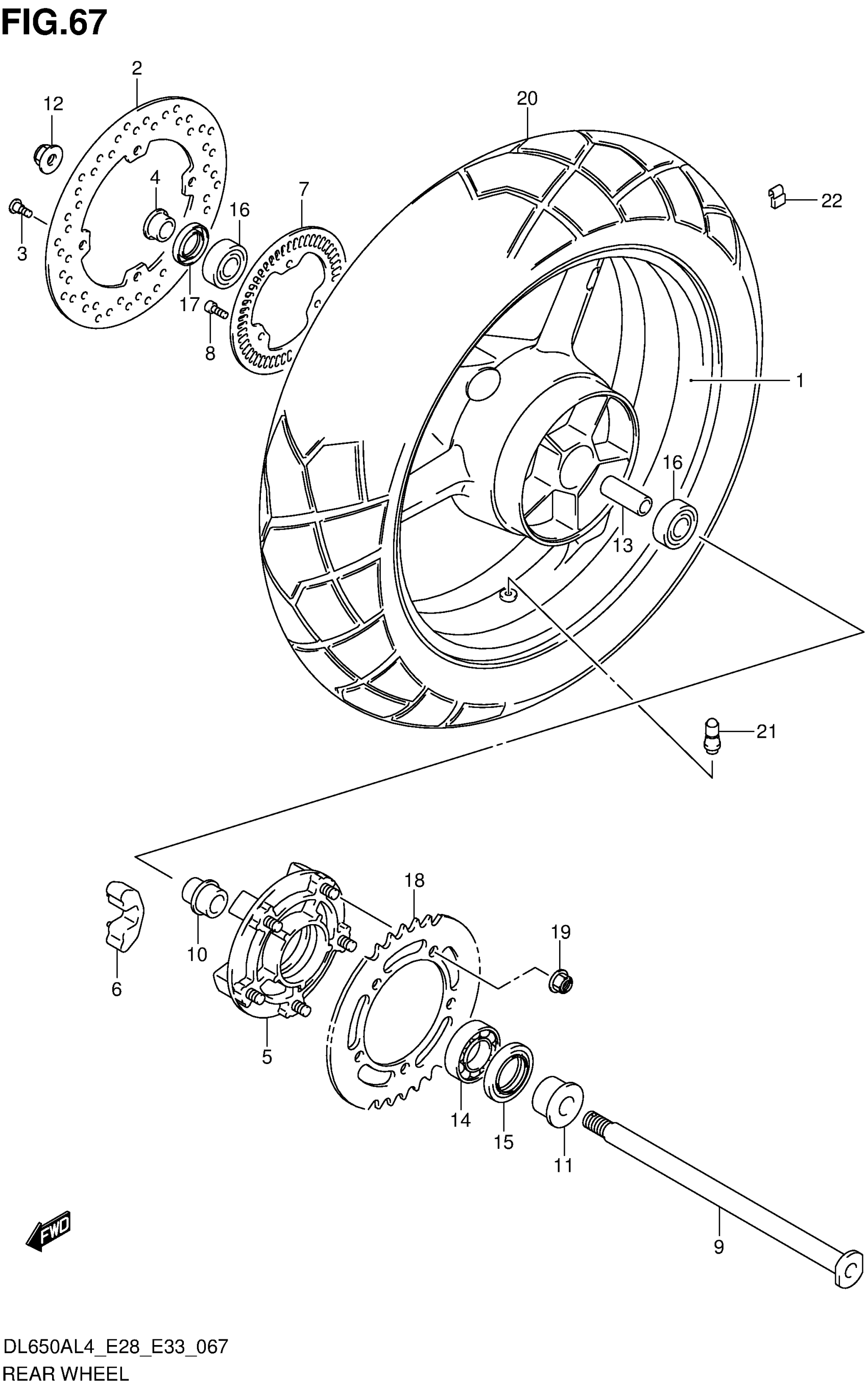

2014 Suzuki DL650AL4 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, REAR (17M/CXMT4.00) (BLACK)

64111-06G20-019

1
Out of stock

2

DISC, RR BRAKE

69211-06G10

1
Out of stock

3

BOLT (8X21)

09106-08160

4
Out of stock

4

SPACER, RR AXLE RH

64741-10F00

1
Out of stock

5

DRUM, RR SPROCKET

64610-35F40

1
Out of stock

6

ABSORBER, RR HUB SHOCK

64651-35F10

5
Out of stock

7

RING, SPEED SENSOR FR (50T)

54162-27G00

1
Out of stock

8

BOLT

07130-0512A

3
Out of stock

9

AXLE, RR

64711-03F00

1
Out of stock

10

RETAINER, RR SPROCKET DRUM

64733-06G00

1
Out of stock

11

SPACER, RR AXLE LH

64751-27G00

1
Out of stock

12

NUT

08319-3118A

1
Out of stock

13

SPACER (20.8X27.2X124)

09180-20112

1
Out of stock

14

BEARING (32X65X17) This part replaces 09262-32022.

09262-32024

1
Out of stock

15

OIL SEAL (39X65X7)

09285-39001

1
Out of stock

16

BEARING This part replaces 08123-62047.

08123-6204B

2
Out of stock

17

SEAL,OIL (27X47X7) This part replaces 09285-28001.

09285-28004

1
Out of stock

18

SPROCKET, RR (47T-525)

64511-27G00

1
Out of stock

19

NUT

08319-3110A

5
Out of stock

20

1

$251.17

In stock

21

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

1
Out of stock

22

BALANCER, WHEEL NO.1 | 10G

43222-73H10

1
Out of stock

22

BALANCER, WHEEL NO.2 | 20G

43224-73H10

1
Out of stock

22

BALANCER, WHEEL NO.3 | 30G

43226-73H10

1
Out of stock
