Description

Price

1

SCREW (5X15)

09136-05062

$2.19

2

HEADLAMP ASSY This part replaces 35100-11J00-999.

35100-11J01-999

$370.40

3

SOCKET, POSITION LAMP

35118-68K00

Unavailable

4

COVER, SOCKET

35179-58J00

$16.93

5

FASTENER

44572-02F01

$11.07

6

FASTENER, COWLING

44572-37H00

$9.83

7

CUSHION

09320-08028

$3.04

8

.CUSHION (9X18X14) This part replaces 09320-09039.

09320-09059

$3.26

9

BULB (12V,60/55W)

09471-12182

$77.08

10

.BULB (12V5W)

09471-12216

$5.36

11

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$15.23

12

BOLT (5X10)

09119-05023

$12.35

13

WASHER

08322-0105A

$1.84

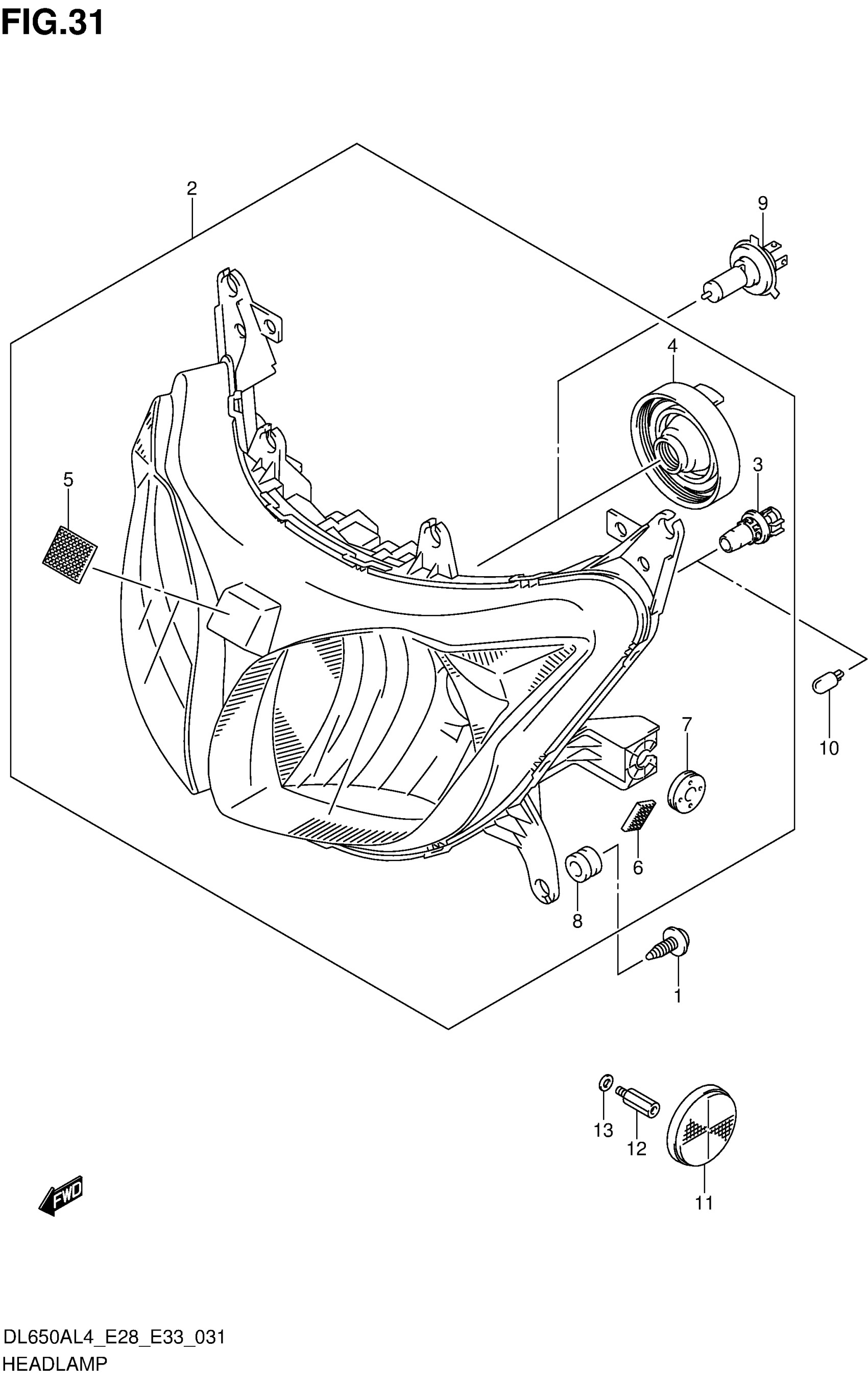

Suzuki DL650AL4 (2014) HEADLAMP Diagram
