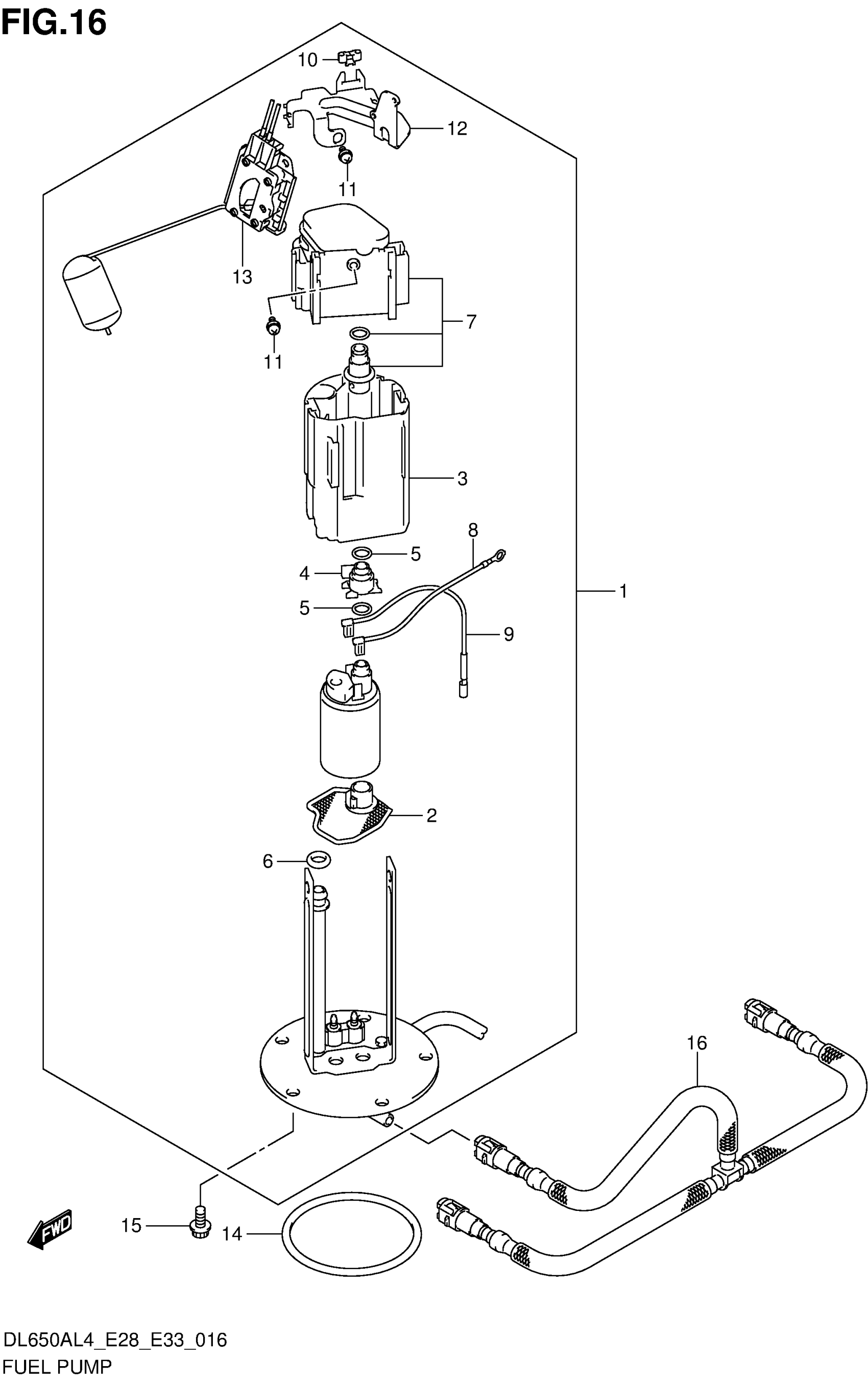

Suzuki DL650AL4 (2014) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY,FUEL This part replaces 15100-11J00.

15100-11J03

$653.72

2

STRAINER

15420-05H00

$41.17

3

CUP, RESERVOIR

15111-27G00

$42.43

4

JOINT

15112-05H00

$28.12

5

O RING

15113-05H00

$19.98

6

O RING

15113-35F00

$8.91

7

REGULATOR

15610-14J00

$171.30

8

WIPE, EARTH

15114-14J00

Unavailable

9

WIRE, LEAD

15115-14J00

Unavailable

10

SADDLE, EDGE

15119-08J00

Unavailable

11

SCREW

15116-10F00

$5.58

12

BRACKET, FUEL GAUGE

15181-11J00

Unavailable

13

GAUGE SET,FUEL This part replaces 34810-11J00.

34800-11J03

$188.85

14

O-RING

15201-35F00

$27.60

15

BOLT

07120-0612A

$2.50

16

HOSE, FUEL

15810-11J10

$153.68
