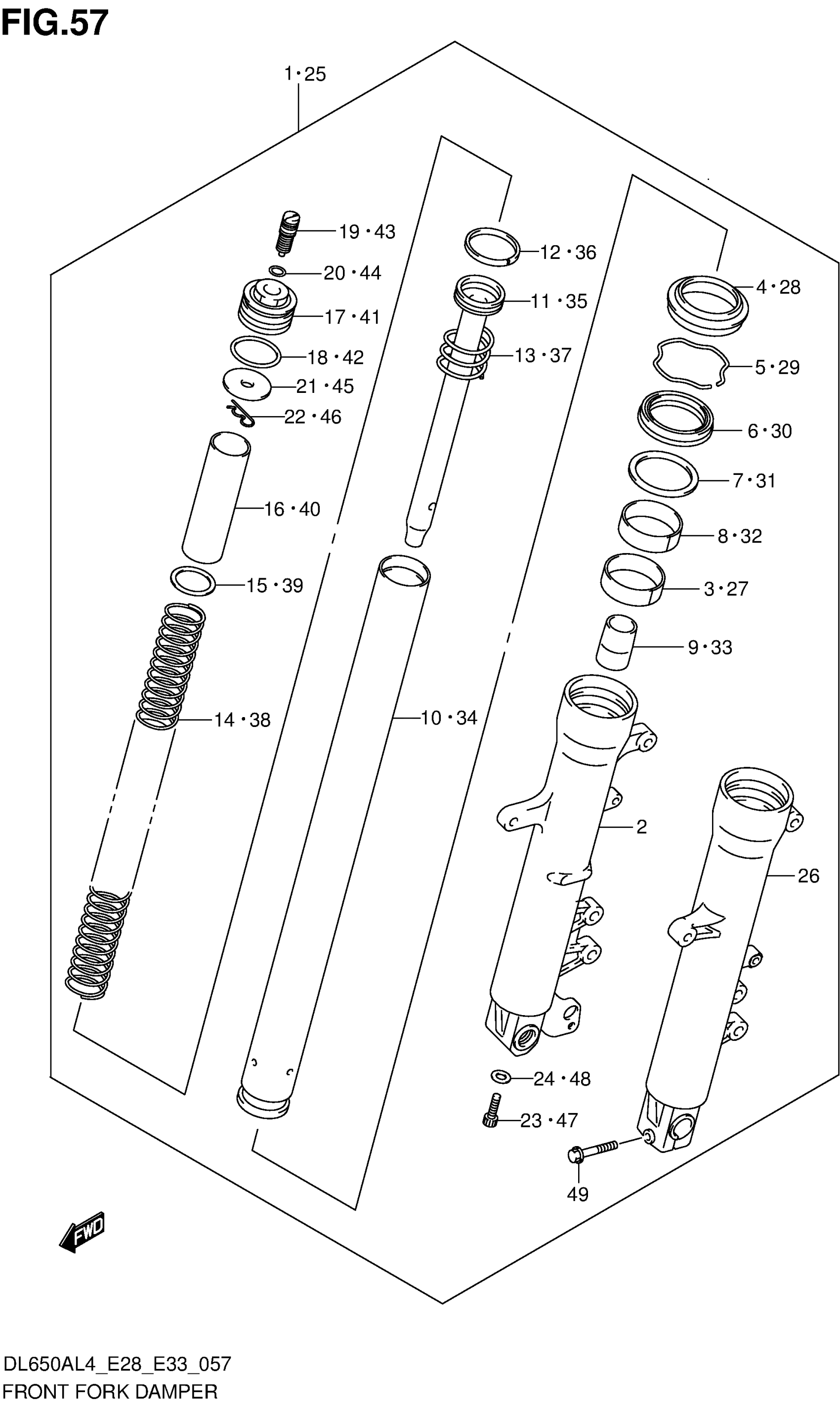

Suzuki DL650AL4 (2014) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-11J00

$1,278.53

2

TUBE, OUTER RH

51131-11J00

Unavailable

3

.BUSH, SLIDE This part replaces 51121-11J00.

51121-11J10

$21.10

4

.SEAL, DUST

51173-27G00

$26.58

5

RING, STOPPER

51556-38B00

$7.22

6

SEAL, OIL This part replaces 51553-47H00.

51153-47H00

$26.91

7

.SPACER, SEAL

51168-17C00

$6.28

8

.BUSH, GUIDE

51152-47H00

$14.20

9

PIECE, OIL LOCK

51195-27G00

$30.22

10

PIPE, FORK

51110-11J00

$495.38

11

PIPE SEAT

51146-11J00

$58.62

12

RING, PISTON

51196-27G00

$9.07

13

SPRING, REBOUND

51177-14D00

$13.07

14

SPRING, FRONT

51171-11J00

$103.93

15

SEAT, SPRING, LOWER

51186-17C00

$7.53

16

COLLAR, SPRING

51176-19C00

$13.70

17

BOLT, FORK

51189-27G00

$82.31

18

O RING

51117-17C00

$5.95

19

ADJUSTER BOLT, SPRING

51185-27G00

Unavailable

20

O RING (D:2.5,ID:13.8) This part replaces 51187-14D00.

09280-14011

$4.77

21

SEAT, SPRING

51186-12C00

$7.53

22

PIN, SEAT SPRING

51188-32B00

Unavailable

23

BOLT

51147-48130

$4.34

24

O RING This part replaces 51148-31030.

51148-36011

$3.56

25

DAMPER ASSY, FRONT FORK LH

51104-11J00

$1,278.53

26

TUBE, OUTER LH

51141-11J00

$684.20

27

.BUSH, SLIDE This part replaces 51121-11J00.

51121-11J10

$21.10

28

.SEAL, DUST

51173-27G00

$26.58

29

RING, STOPPER

51556-38B00

$7.22

30

SEAL, OIL This part replaces 51553-47H00.

51153-47H00

$26.91

31

.SPACER, SEAL

51168-17C00

$6.28

32

.BUSH, GUIDE

51152-47H00

$14.20

33

PIECE, OIL LOCK

51195-27G00

$30.22

34

PIPE, FORK

51110-11J00

$495.38

35

PIPE SEAT

51146-11J00

$58.62

36

RING, PISTON

51196-27G00

$9.07

37

SPRING, REBOUND

51177-14D00

$13.07

38

SPRING, FRONT

51171-11J00

$103.93

39

SEAT, SPRING, LOWER

51186-17C00

$7.53

40

COLLAR, SPRING

51176-19C00

$13.70

41

BOLT, FORK

51189-27G00

$82.31

42

O RING

51117-17C00

$5.95

43

ADJUSTER BOLT, SPRING

51185-27G00

Unavailable

44

O RING (D:2.5,ID:13.8) This part replaces 51187-14D00.

09280-14011

$4.77

45

SEAT, SPRING

51186-12C00

$7.53

46

PIN, SEAT SPRING

51188-32B00

Unavailable

47

BOLT

51147-48130

$4.34

48

O RING This part replaces 51148-31030.

51148-36011

$3.56

49

BOLT,HOLDER AXLE (8X40) | LH

51328-27E30

$4.37
