Description

Price

1

FRAME (BLACK)

41100-27G50-YAP

$4,866.15

2

RAIL,SEAT This part replaces 41200-11J00.

41200-11J02

Unavailable

3

BOLT (10X30)

09103-10379

$4.52

4

BRACKET, ENG MTG RH

41911-06G90-YAP

$601.28

5

BRACKET, ENG MTG LH

41912-06G90-YAP

$601.28

6

BOLT (8X30)

09106-08121

$3.16

7

BOLT, CRANK CASE ADJUST CTR

41923-16G00

$31.28

8

NUT,CRANK CASE ADJUST CTR

41922-19F20

$18.90

9

BOLT, CRANK CASE ADJUST LWR This part replaces 41921-16G00.

41921-16G01

$23.47

10

NUT, ADJUSTER LOWER

41922-33E20

Unavailable

11

SPACER, ADJUSTER UPPER

41941-19F01

$40.33

12

BOLT (8X38)

09106-08168

$3.93

13

COVER, PIVOT RH

43585-27G10

$24.28

14

COVER, PIVOT LH

43595-27G00

$19.98

15

CAP

09251-04003

$3.30

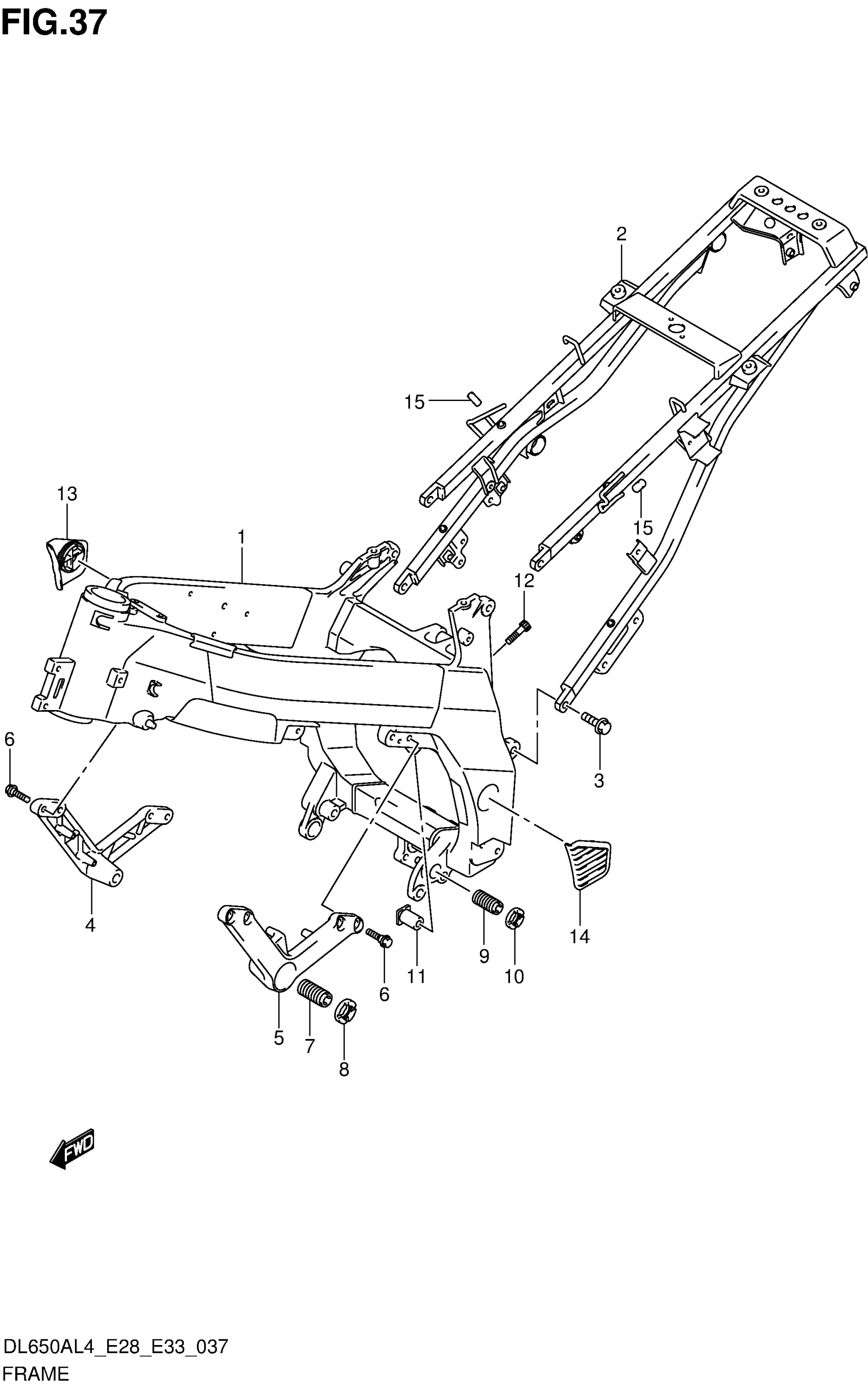

Suzuki DL650AL4 (2014) FRAME Diagram
