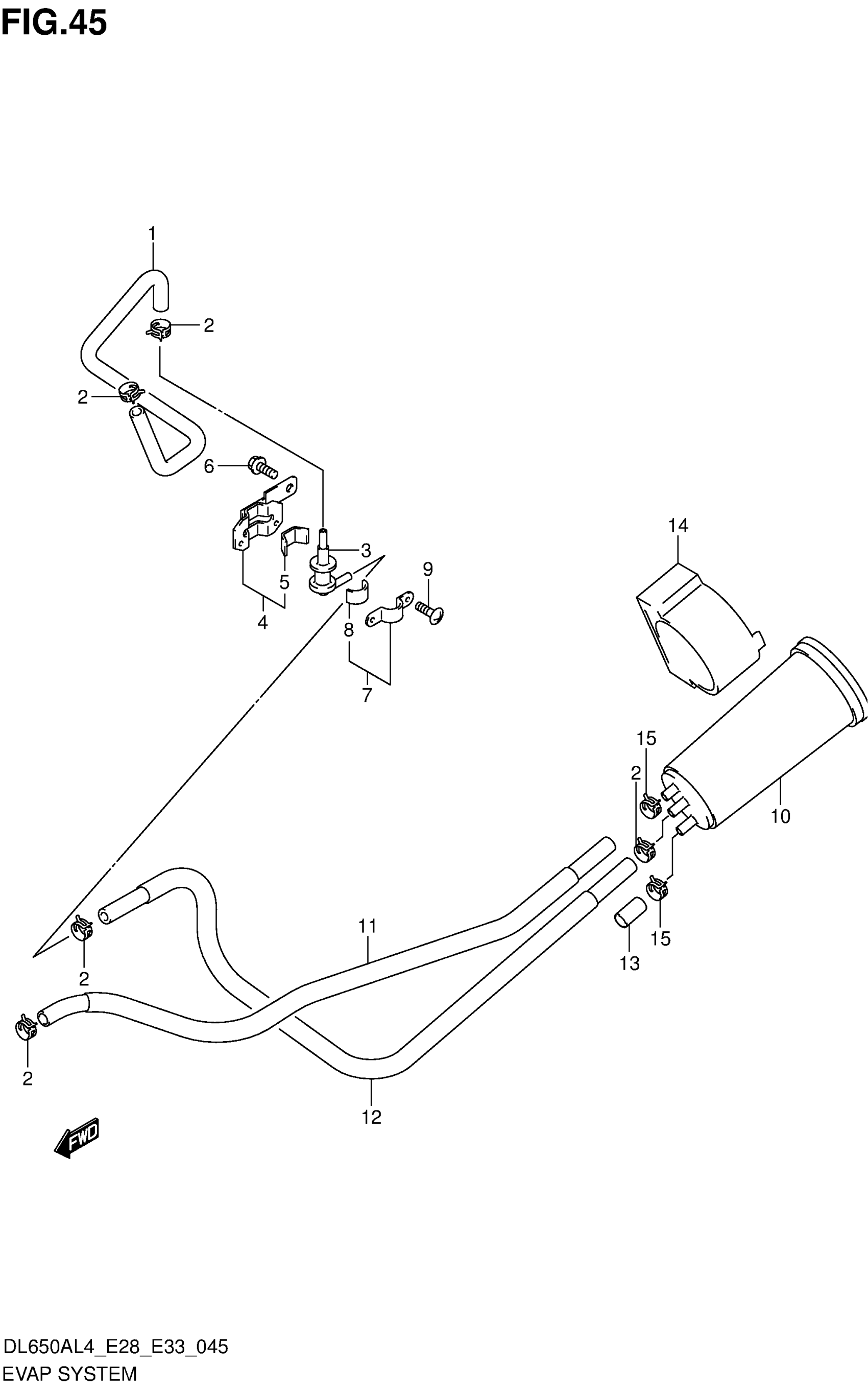

Find the part on the Evap System diagram for your 2014 Suzuki DL650AL4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Suzuki DL650AL4 Evap System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE, TANK & VALVE

44434-11J00

1
Out of stock

2

CLIP

09401-11413

5
Out of stock

3

VALVE FUEL TANK BREATHER

44240-17C00

1
Out of stock

4

PLATE, BREATHER VALVE

44890-06G00

1
Out of stock

5

CUSHION (10X30X2)

44894-24A00

1
Out of stock

6

BOLT

01550-0612B

1
Out of stock

7

PLATE,FUEL TANK BREATHER NO.2

44892-24A00

1
Out of stock

8

CUSHION (10X30X2)

44894-24A00

1
Out of stock

9

SCREW

02142-0408B

2

$1.79

In stock

10

CANISTER

17210-15H00

1
Out of stock

11

HOSE, CANISTER PURGE

18561-11J00

1
Out of stock

12

HOSE, CANISTER SURGE

18563-11J00

1
Out of stock

13

CAP (OD:11.5)

09251-07003

1
Out of stock

14

CUSHION,CANISTER This part replaces 44883-06G00.

44883-06G01

1
Out of stock

15

CLIP

09401-12404

2
Out of stock
