2014 Suzuki DL650AL4 AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 2014 Suzuki DL650AL4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

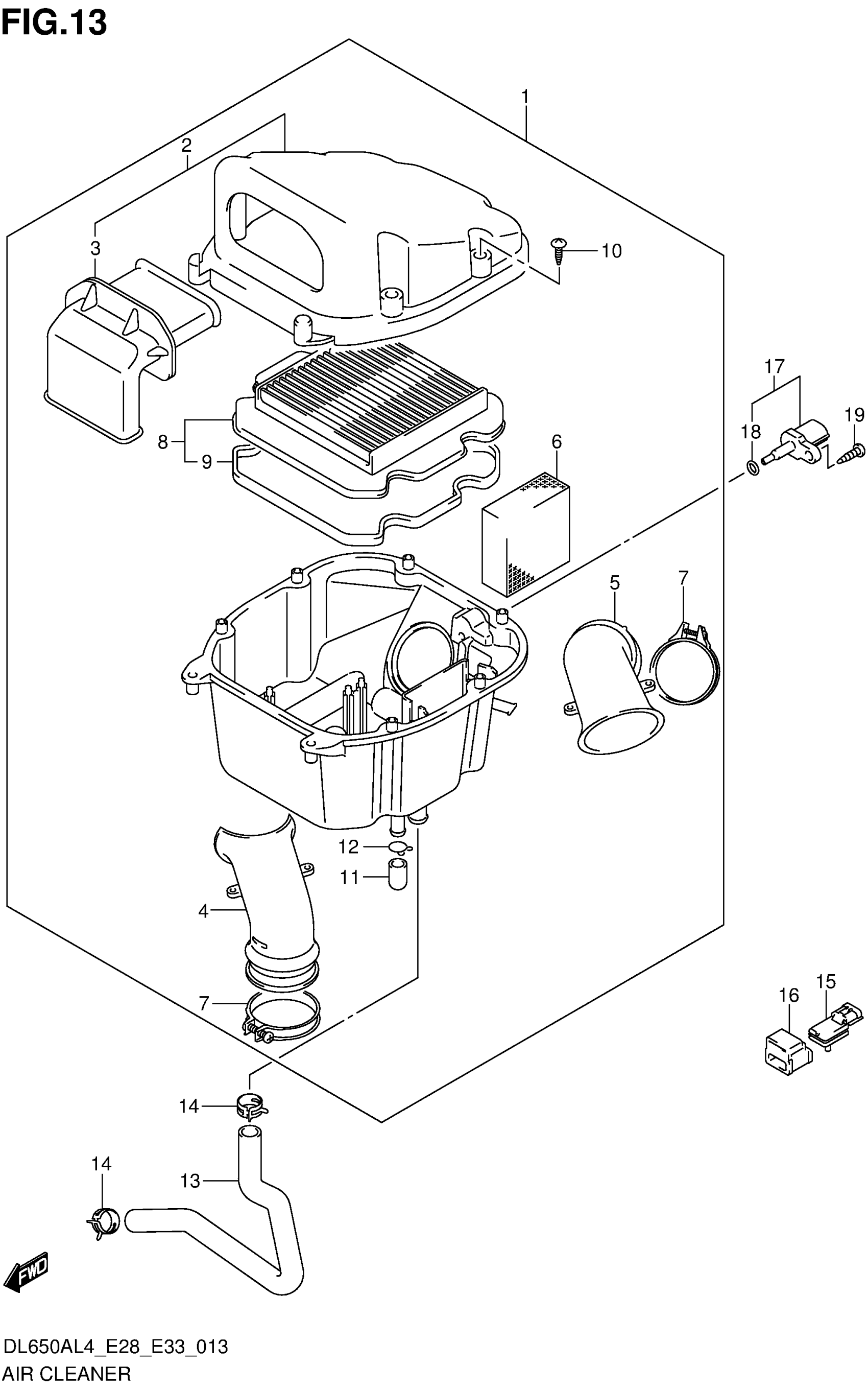

2014 Suzuki DL650AL4 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR This part replaces 13700-11J01.

13700-11J02

1
Out of stock

2

.CAP, AIR CLEANER

13740-11J01

1
Out of stock

3

..TUBE, INLET

13891-27G01

1
Out of stock

4

.TUBE, OUTLET A This part replaces 13881-27G10.

13881-27G11

1
Out of stock

5

.TUBE, OUTLET B This part replaces 13882-27G10.

13882-27G11

1
Out of stock

6

.FILTER, BREATHER

13788-11J00

1
Out of stock

7

.CLAMP,OUTLET TUBE

13826-44H01

2
Out of stock

8

FILTER, AIR CLEANER

13780-27G10

1
Out of stock

9

..GASKET, AIR CLEANER

13746-06G00

1
Out of stock

10

SCREW

03141-0516A

8
Out of stock

11

.PLUG This part replaces 13878-10G00.

13878-10G01

1
Out of stock

12

CLIP

09401-14301

1
Out of stock

13

TUBE, BREATHER

13850-11J00

1
Out of stock

14

CLIP

09401-20405

2

$4.43

In stock

15

SENSOR, PRESSURE

18591-41F00

2
Out of stock

16

HOLDER

18595-41F00

2
Out of stock

17

SENSOR AIR TEMP

13650-41F10

1
Out of stock

18

O-RING

13655-41F10

1
Out of stock

19

SCREW

03511-0516A

1
Out of stock
