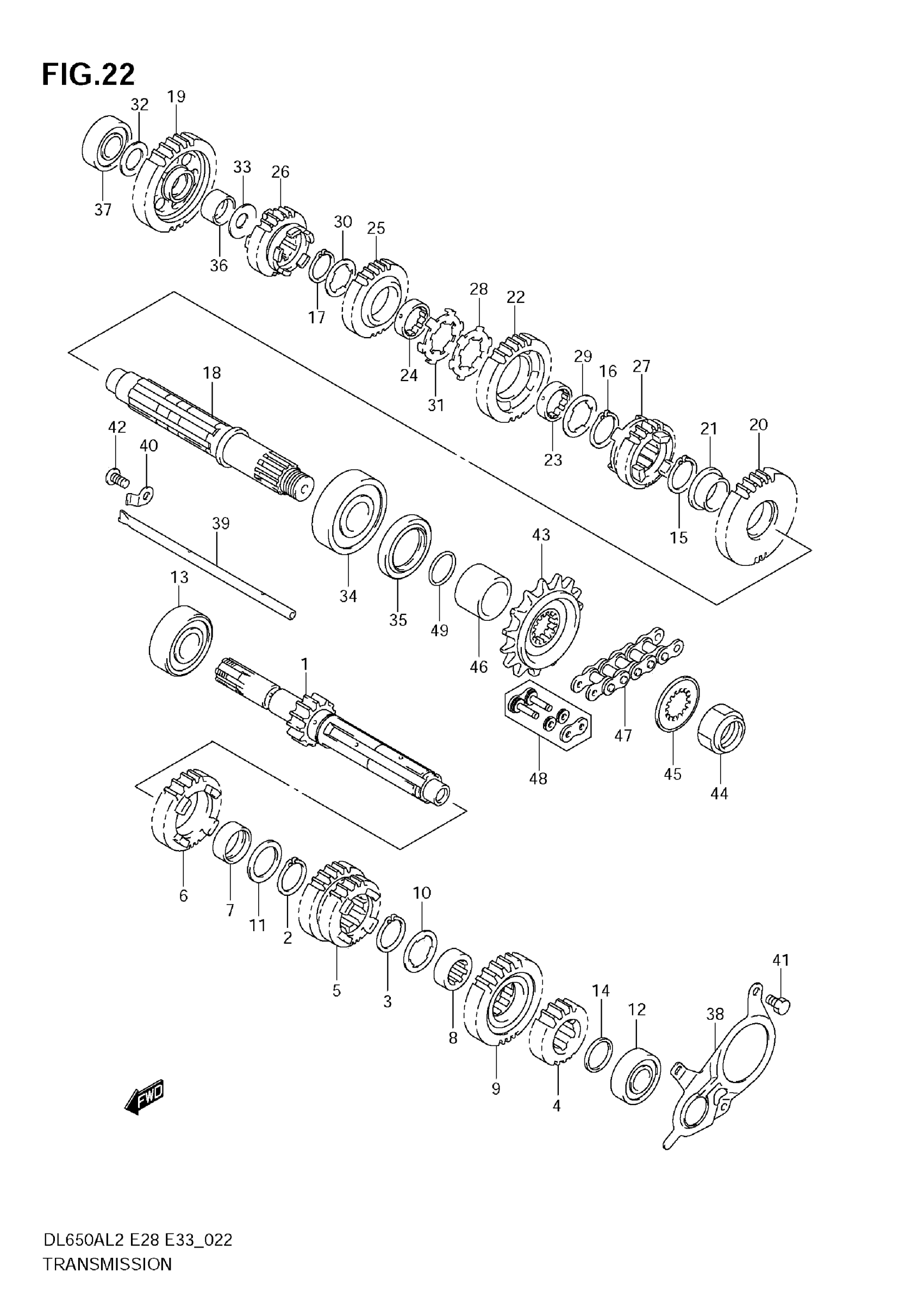

Suzuki DL650AL2 (2012) TRANSMISSION Diagram

#

Description
Price

1

SHAFT,COUNTER (NT:13)

24120-27G00

Unavailable

2

CIRCLIP, 5TH DRIVE GEAR

24127-19F00

$3.87

3

CIRCLIP, 6TH DRIVE GEAR

24127-19F00

$3.87

4

GEAR,2ND DRIVE (NT:18)

24221-20F10

Unavailable

5

GEAR,3RD & 4TH DRIVE (NT:21/2

24231-20F10

Unavailable

6

GEAR,5TH DRIVE (NT:26)

24251-20F02

Unavailable

7

BUSH, 5TH DRIVE GEAR

24252-19F00

$17.12

8

BUSH,6TH DRIVE GEAR

24252-38A10

Unavailable

9

GEAR,6TH DRIVE (NT:27)

24261-20F00

Unavailable

10

WASHER,LOCK (25.1X33X1.0)

09167-25021

$3.85

11

SHIM (25X34X1)

09181-25167

$3.12

12

BEARING (17X40X12) | LH

09262-17046

$38.05

13

BEARING (20X52X15) | RH

09262-20145

$37.70

14

CIRCLIP

09380-25012

$2.47

15

CIRCLIP, 2ND DRIVEN GEAR

24127-19F00

$3.87

16

CIRCLIP, 3RD DRIVEN GEAR

24127-19F00

$3.87

17

CIRCLIP, 4TH DRIVEN GEAR

24127-19F00

$3.87

18

SHAFT, DRIVE

24130-44H10

Unavailable

19

GEAR,1ST DRIVEN (NT:32)

24311-44H00

$125.52

20

GEAR, 2ND DRIVEN

24321-44H10

$106.67

21

BUSH, 2ND DRIVEN GEAR

24322-19F10

Unavailable

22

GEAR,3RD DRIVEN (NT:29)

24331-44H00

$116.14

23

BUSH, 3RD DRIVEN GEAR

24332-24510

$18.67

24

BUSH, 4TH DRIVEN GEAR

24332-24510

$18.67

25

GEAR,4TH DRIVEN (NT:27)

24341-44H00

$133.03

26

GEAR,5TH DRIVEN (NT:25)

24351-44H10

$106.73

27

GEAR,6TH DRIVEN (NT:23)

24361-44H00

Unavailable

28

WASHER,LOCK (25.1X41X1.5)

09167-25013

$3.30

29

WASHER,LOCK (25.1X33X1.0)

09167-25021

$3.85

30

WASHER,LOCK (25.1X33X1.0)

09167-25021

$3.85

31

WASHER

09169-25001

$2.70

32

SHIM (17X28X1)

09181-17195

$3.07

33

SHIM (20X30X1)

09181-20195

$2.60

34

BEARING (25X62X17) | LH

09262-25125

$59.09

35

SEAL,OIL (36X50X6)

09283-36011

$25.17

36

BEARING (20X24X13)

09300-20032

$17.50

37

BEARING (17X40X12) | RH

09262-17023

$16.75

38

RETAINER,DRIVE SHAFT OIL SEAL

24751-19F10

$14.72

39

GUIDE,T/M OIL

24881-12C30

Unavailable

40

RETAINER,TRANSMISSION OIL

24885-12C10

Unavailable

41

BOLT

01500-0612A

$1.78

42

SCREW

02112-0612A

$1.49

43

SPROCKET, ENGINE (NT:15) This part replaces 27510-20F00.

27510-20F21

$53.33

44

NUT

09159-20004

$15.67

45

WASHER,LOCK

09167-25028

$2.92

46

SPACER,ENGINE SPROCKET

27531-19F10

$38.12

47

CHAIN,DRIVE (RK525SMOZ8)

27600-06G40-120

$178.06

48

.JOINT SET,DRIVE CHAIN | OPT

27620-06G40

$21.10

49

O RING (D:2.4,ID:23.7)

09280-24010

$5.64
