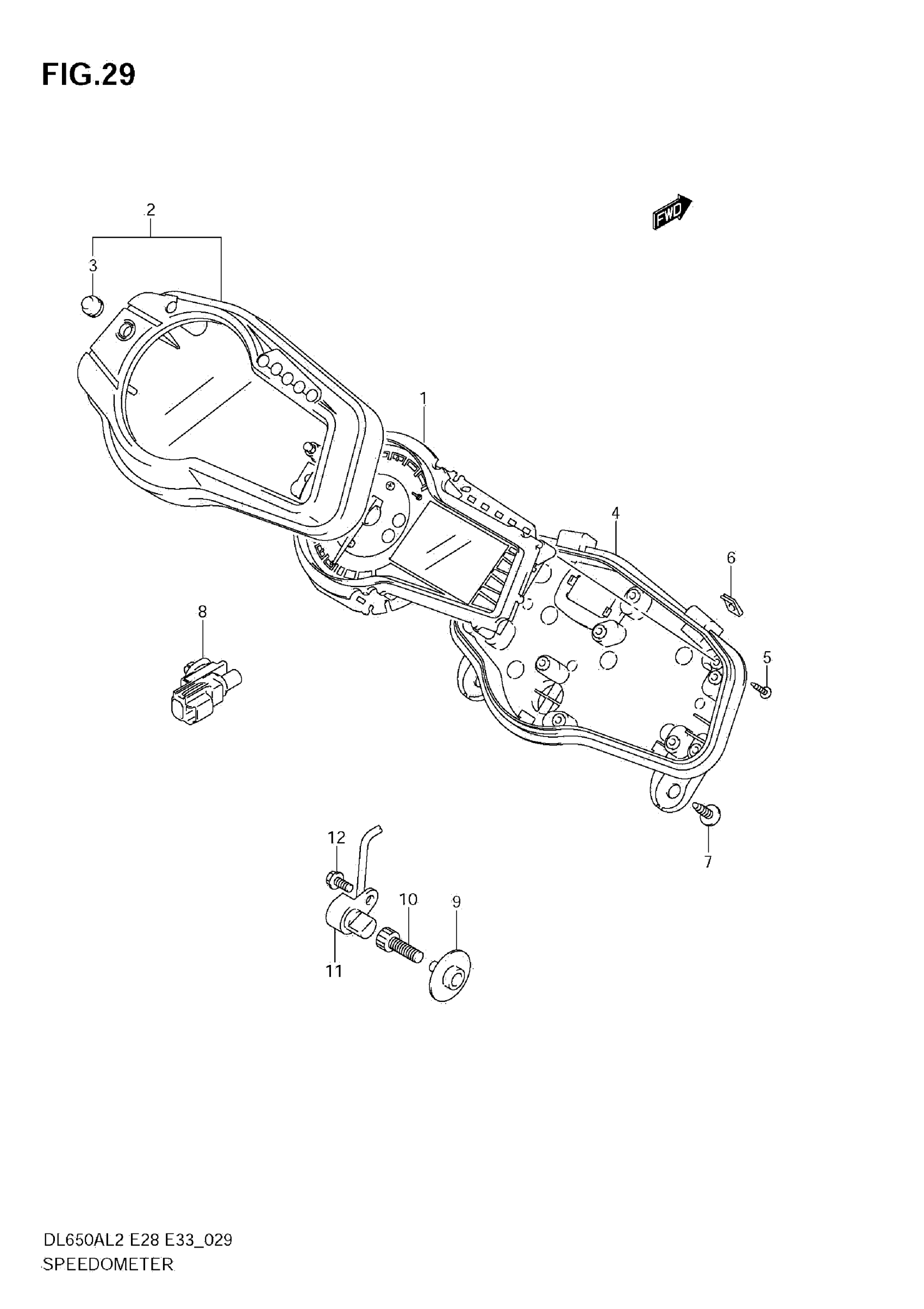

Suzuki DL650AL2 (2012) SPEEDOMETER (E28) Diagram

#

Description
Price

1

SPEEDOMETER

34120-11J00

Unavailable

2

CASE, UPPER

34150-11J00

$178.52

3

RUBBER, SWITCH

34124-38G00

Unavailable

4

CASE, LOWER

34111-11J00

$87.77

5

SCREW (3X16)

09132-03008

$1.53

6

NUT

09148-05052

$3.37

7

SCREW

03541-0516A

$1.49

8

SENSOR, AMBIENT AIR TEMP

95643-58J00

$50.50

9

ROTOR,SPEED

34981-38G01

$17.92

10

BOLT

07130-0825B

$3.37

11

SENSOR, SPEED

34990-35F00

$127.72

12

BOLT

07120-0512B

$2.61
