2012 Suzuki DL650AL2 Rear Cushion Lever Diagram

← All diagrams

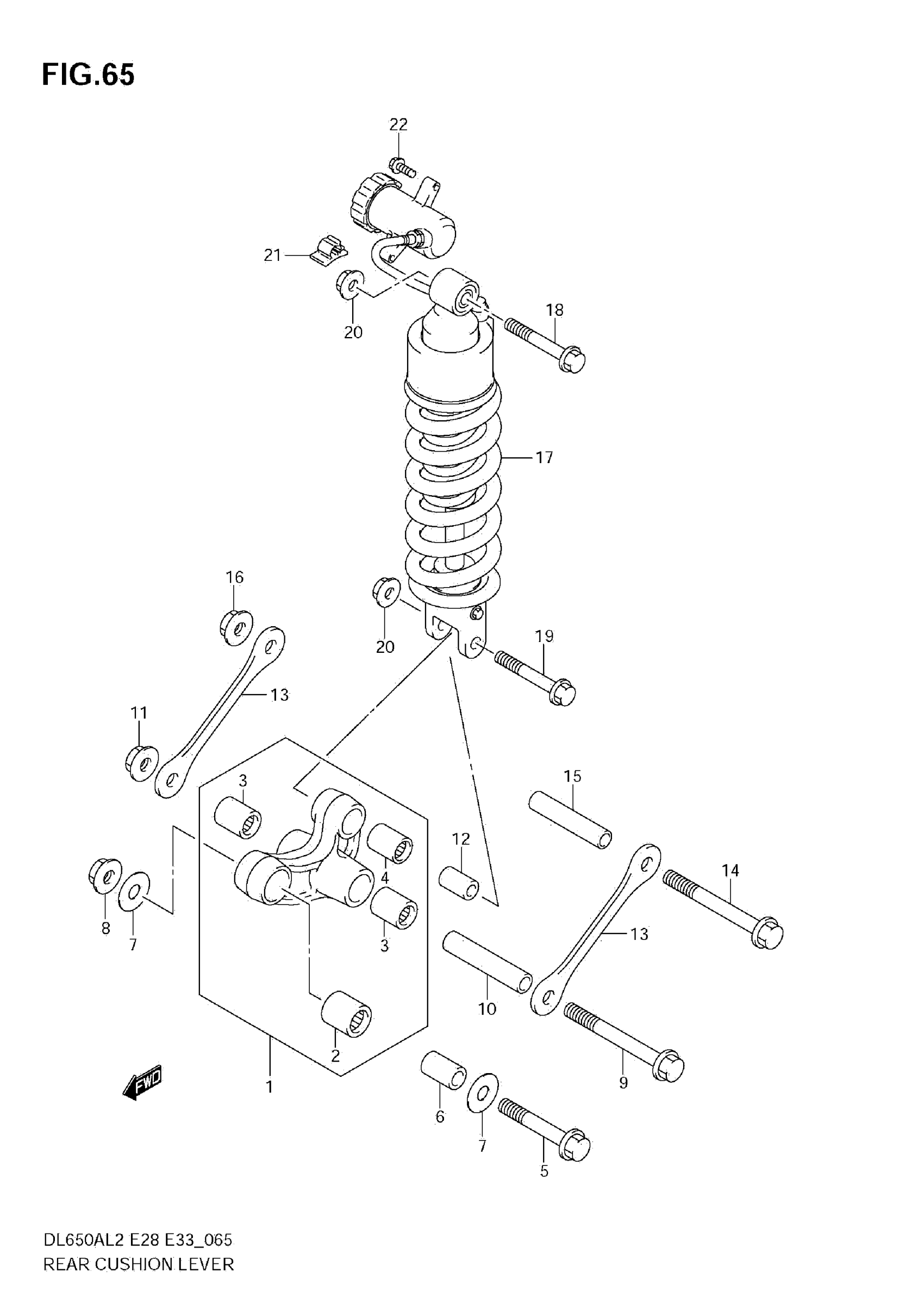

Find the part on the Rear Cushion Lever diagram for your 2012 Suzuki DL650AL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki DL650AL2 Rear Cushion Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER SET, RR CUSHION This part replaces 62600-06870.

62600-06872

1
Out of stock

2

.BEARING (20X27X30) | FRONT This part replaces 09263-20073.

09263-20121

1
Out of stock

3

.BEARING (17X24X25) | CENTER This part replaces 09263-17037.

09263-17053

2
Out of stock

4

.BEARING (17X24X26) | REAR This part replaces 09263-17034.

09263-17057

1
Out of stock

5

BOLT, RR CUSHION LEVER FR

62658-19F00

1
Out of stock

6

SPACER,RR CUSHION LEVER FR (1

62684-12C00

1
Out of stock

7

WASHER (12X34X1)

09160-12037

2
Out of stock

8

NUT

09159-12056

1
Out of stock

9

BOLT,RR CUSHION ROD (12X111)

62621-19D00

1
Out of stock

10

SPACER (12X17X85) | CENTER

09180-12122

1
Out of stock

11

NUT

09159-12056

1
Out of stock

12

SPACER, REAR (10X17X30)

62684-40A10

1
Out of stock

13

ROD, RR CUSHION LEVER

62641-06G00

2
Out of stock

14

BOLT,RR CUSHION ROD (12X111)

62621-19D00

1
Out of stock

15

SPACER (12X17X85) | ROD

09180-12122

1
Out of stock

16

NUT

09159-12056

1
Out of stock

17

ABSORBER ASSY,R This part replaces 62100-06GB0-019.

62100-06GB1-019

1
Out of stock

18

BOLT (10X70) | UPPER

09103-10033

1
Out of stock

19

BOLT (10X55) | LOWER

09103-10143

1
Out of stock

20

NUT

09159-10115

2
Out of stock

21

CLAMP

09403-10313

1
Out of stock

22

BOLT

01550-0616A

2
Out of stock
← Knuckle Cover SET Rear Cushion Lever →
