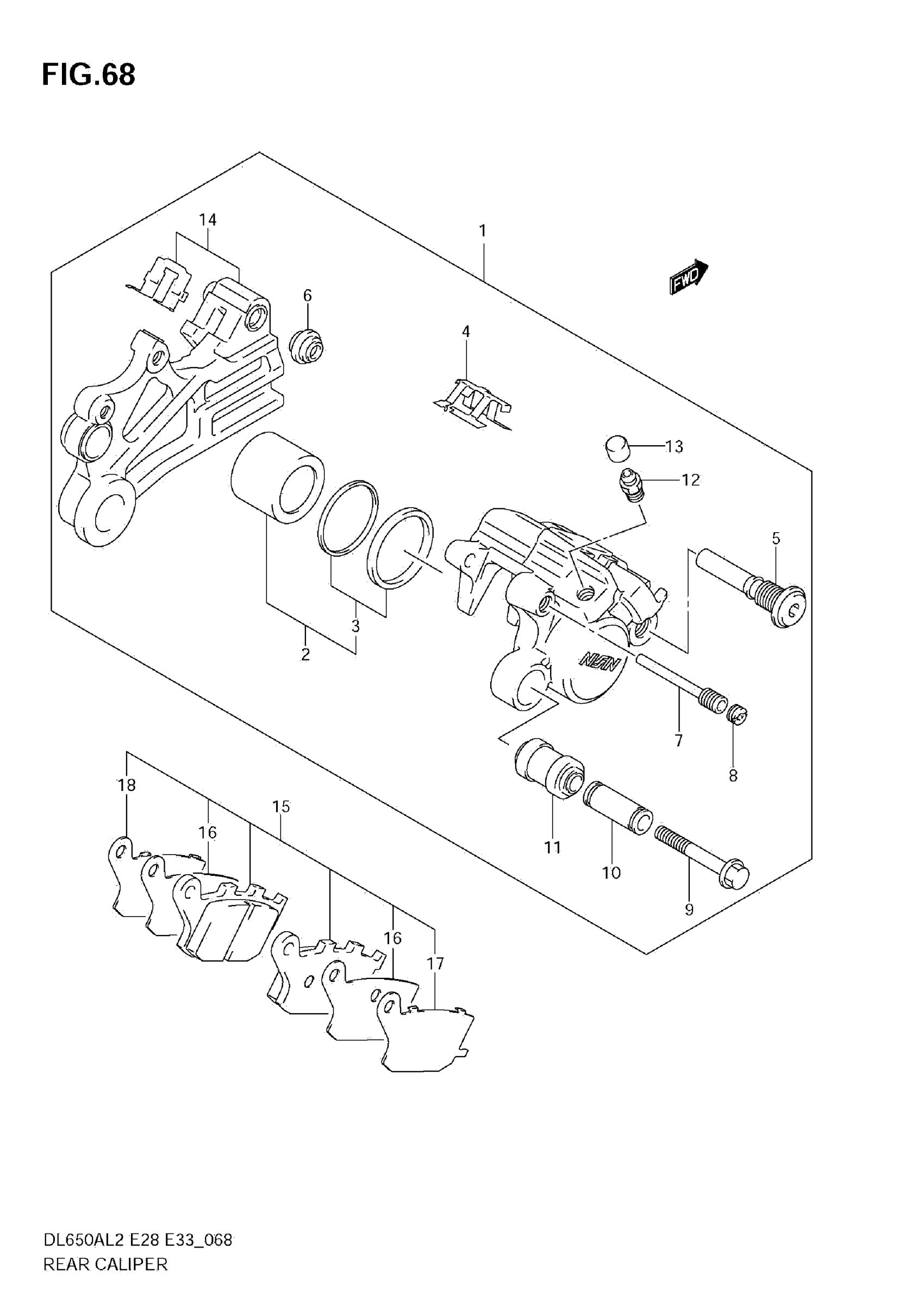

Suzuki DL650AL2 (2012) REAR CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, REAR

69100-27G10-999

$470.60

2

PISTON SET

69100-04810

$47.22

3

..SEAL SET,PISTON

69100-04820

$8.77

4

.SPRING,PAD

69115-06G00

$13.50

5

PIN, BOLT

59305-36E00

$18.20

6

BOOT

59303-14500

$5.52

7

PIN, HANGER

69141-40F00

$29.48

8

PLUG

59146-21E10

$6.15

9

BOLT

69182-04F00

$9.07

10

SLEEVE

69185-04F00

$18.50

11

.BOOT,SLEEVE

69186-04F00

$13.22

12

BLEEDER

59121-01A00

$8.73

13

CAP

59122-46H00

$4.43

14

BRACKET

69150-27G00

Unavailable

15

PAD & RETAINER SET

69100-06830

$63.44

16

INSULATOR

69132-06G00

$20.80

17

RETAINER

69133-06G00

$15.75

18

RETAINER

69134-06G00

$15.45
