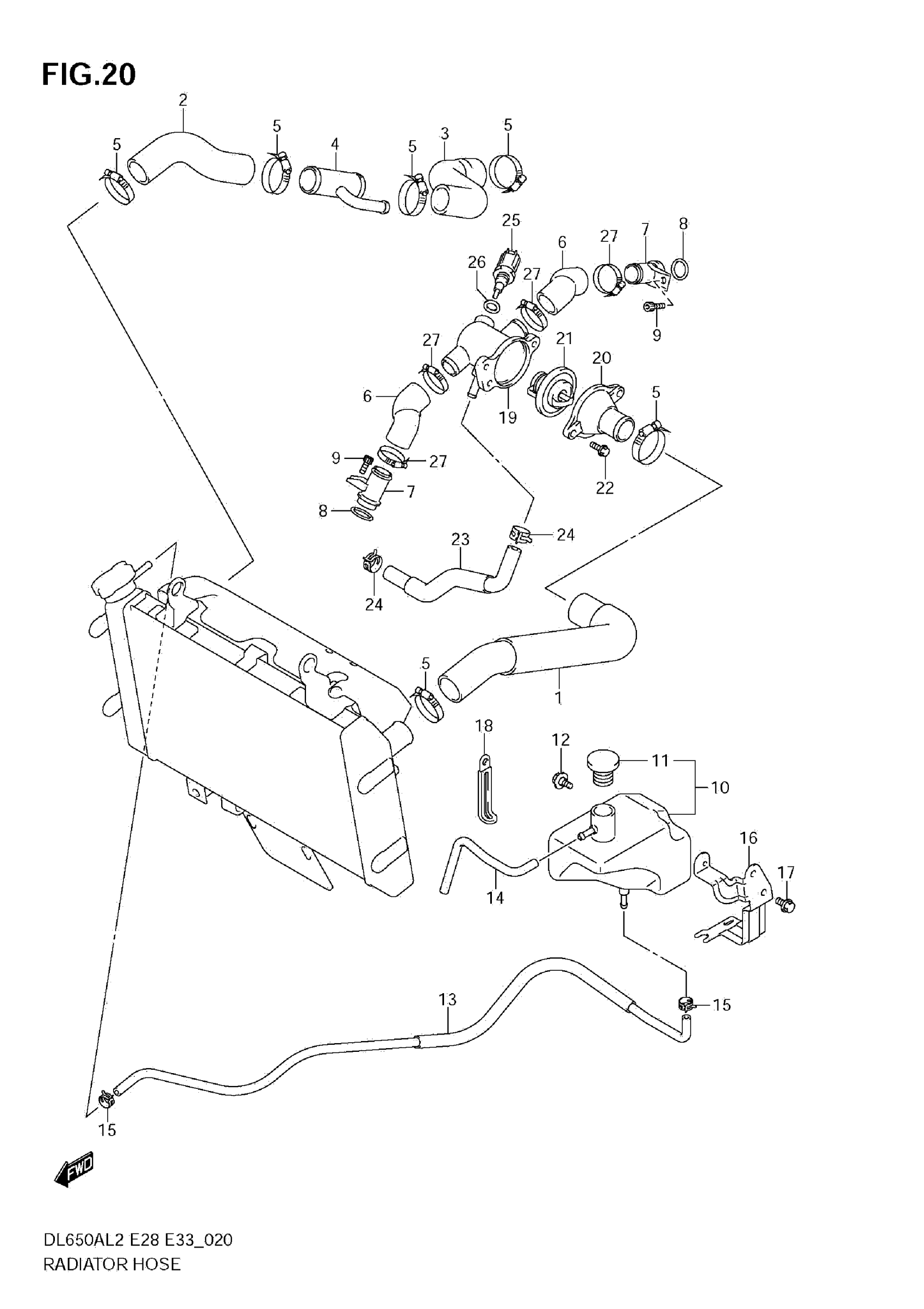

Suzuki DL650AL2 (2012) RADIATOR HOSE Diagram

#

Description
Price

1

HOSE, RADIATOR INLET

17851-11J00

$61.37

2

HOSE,RADIATOR OUTLET NO.1

17852-44H00

$23.07

3

HOSE, RADIATOR OUTLET NO.2

17854-44H00

$21.82

4

UNION, WATER HOSE THREE WAY

17880-44H00

$40.75

5

CLAMP

09402-35501

$7.29

6

HOSE,CONNECTOR INLET

17853-19F00

$14.34

7

UNION, CONNECTOR HOSE

17890-06G20

$14.43

8

O RING (D:3.2,ID:17.8) This part replaces 09280-18008.

09280-18009

$5.83

9

BOLT

07130-0612A

$2.50

10

TANK ASSY, RESERVOIR

17910-27G10

$56.45

11

.CAP,RESERVOIR TANK

17931-02FA0

$5.56

12

BOLT (6X12)

09111-06085

$4.54

13

HOSE SET, RESERVOIR TANK INLE

17900-27810

$22.00

14

HOSE, RESERVOIR TANK OVERFLOW

17982-22H00

Unavailable

15

CLIP

09401-08411

$1.78

16

BRACKET, RESERVOIR TANK

17920-27G10

Unavailable

17

BOLT

01550-0610A

$1.97

18

CLAMP (L:45)

09404-06429

$1.83

19

CONNECTOR,THERMOSTAT INLET

17662-02F11

$64.30

20

CAP,THERMOSTAT CONNECTOR

17663-17G00

$29.33

21

THERMOSTAT,WATER This part replaces 17670-06G60.

17670-06G61

$25.77

22

BOLT

01547-0616A

$2.03

23

HOSE,CONNECTOR TO WTR PMP

17856-44H00

$20.65

24

CLIP This part replaces 09401-12409.

09401-12414

$3.26

25

SENSOR, WATER TEMPERATURE

13650-49X00

$90.19

26

GASKET (12X17X1)

09168-12017

$1.95

27

CLAMP

09402-28513

$6.88
