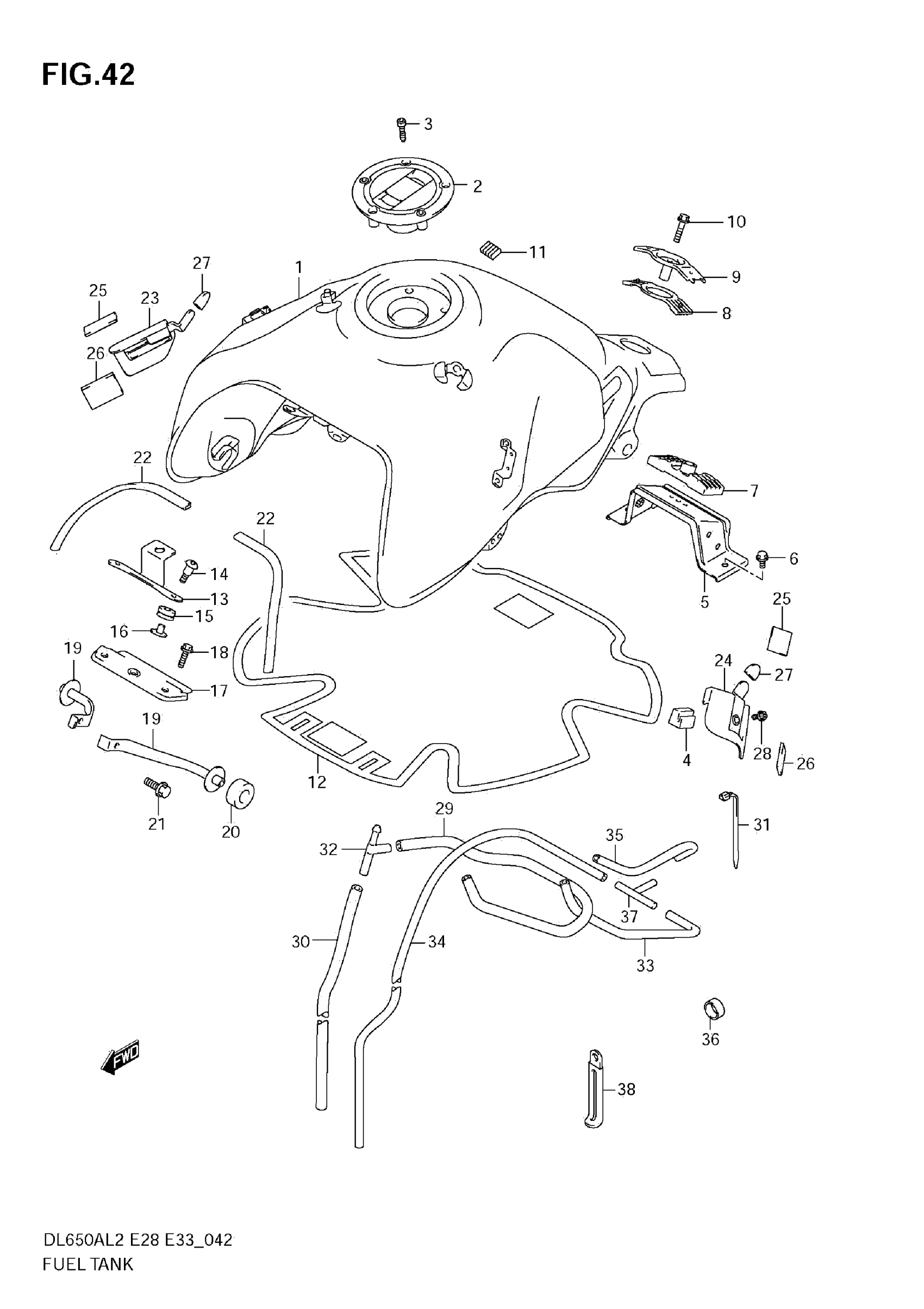

Suzuki DL650AL2 (2012) FUEL TANK (E28) Diagram

#

Description
Price

1

TANK, FUEL (BLACK)

44100-11J00-YKV

$1,283.18

2

CAP SET,FUEL TA This part replaces 44200-16850.

44200-16852

$118.21

3

BOLT, FUEL TANK FILLER CAP

44244-11J00

$4.00

4

CUSHION,FUEL TA This part replaces 44541-11J00.

44541-11J01

$5.12

5

BRACKET, FUEL TANK RR

44550-06G10

Unavailable

6

BOLT

01550-0816B

$2.73

7

CUSHION,FUEL TANK RR LWR

44545-06G00

$18.25

8

CUSHION,FUEL TANK RR UPR

44542-06G00

$16.78

9

BRACKET,FUEL TANK RR UP

44530-06G00

Unavailable

10

BOLT

01550-0835B

$3.95

11

FASTENER, FUEL TANK COVER

44572-44G00

$10.18

12

SHIELD, FUEL TANK CENTER

44194-11J00

$80.88

13

BRACKET, FR COVER

44154-11J00

$10.98

14

SCREW (6X25)

09139-06192

$3.23

15

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

$4.11

16

WASHER, FUEL TANK FRONT

44512-16G00

$7.44

17

BRACKET, FUEL TANK FR

44520-11J00

Unavailable

18

BOLT

01550-0620B

$2.39

19

BRACKET, FR SIDE

44560-11J00

Unavailable

20

CUSHION, FRONT SIDE BRACKET

44542-11J00

$4.87

21

BOLT

01550-0612B

$2.39

22

MOLDING, FUEL TANK

68241-11J00

Unavailable

23

BRACKET, FUEL TANK COVER RH

44179-11J00

$5.22

24

BRACKET, FUEL TANK COVER LH

44189-11J00

$4.45

25

FASTENER, FUEL TANK COVER

44572-13G00

$11.07

26

CUSHION, FUEL TANK COVER

44183-23H00

$12.97

27

CUSHION

09329-18001

$1.91

28

BOLT

07120-0612A

$2.50

29

HOSE, FUEL TANK DRAIN NO.1

44423-11J00

Unavailable

30

HOSE, FUEL TANK DRAIN NO.2

44423-11J10

Unavailable

31

CLAMP (L:165)

09407-18402

$2.19

32

JOINT, WATER DRAIN

09367-08005

$4.83

33

HOSE, FUEL TANK BREATHER NO.1

44424-11J10

Unavailable

34

HOSE, FUEL TANK BREATHER NO.2

44424-11J00

Unavailable

35

HOSE,VACUUM This part replaces 44425-09E00.

44425-09E01

$11.28

36

HOSE | L:600->10

09352-12163-600

Unavailable

37

JOINT

09367-06007

$3.46

38

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74
