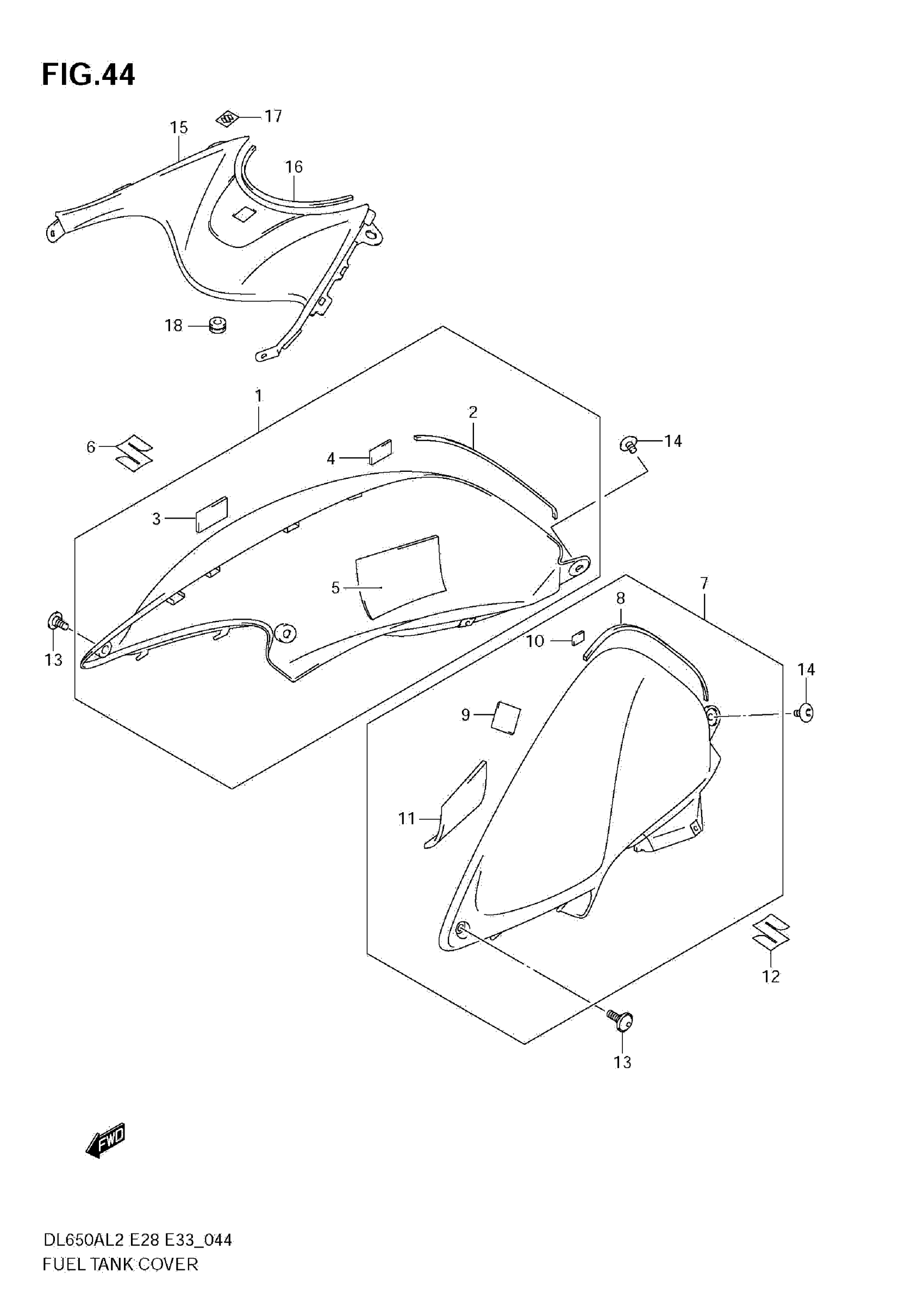

Suzuki DL650AL2 (2012) FUEL TANK COVER Diagram

#

Description
Price

1

COVER, SIDE RH (WHITE)

44170-11J00-YPA

$270.67

1

COVER, SIDE RH (ORANGE)

44170-11J00-YUK

$270.67

1

COVER, SIDE RH (BLACK)

44170-11J00-YVB

$270.62

2

CUSHION, SIDE COVER

44277-37H00

$5.18

3

FASTNER, FUEL TANK COVER

44572-13G00

$11.07

4

FASTNER, FUEL TANK COVER

44572-44G00

$10.18

5

CUSHION

44278-11J00

$5.19

6

EMBLEM, "S"

68111-18G20

$32.30

7

COVER, SIDE LH (WHITE)

44180-11J00-YPA

$270.67

7

COVER, SIDE LH (ORANGE)

44180-11J00-YUK

$270.70

7

COVER, SIDE LH (BLACK)

44180-11J00-YVB

$270.62

8

CUSHION, SIDE COVER

44277-37H00

$5.18

9

FASTNER, FUEL TANK COVER

44572-13G00

$11.07

10

FASTNER, FUEL TANK COVER

44572-44G00

$10.18

11

CUSHION

44278-11J00

$5.19

12

EMBLEM, "S"

68111-18G20

$32.30

13

SCREW (5X13)

09139-05064

$2.57

14

BOLT (6X8)

09139-06178

$4.72

15

COVER, FUEL TANK FRONT

44191-11J00

$27.85

16

CUSHION,FUEL TANK FRONT COVER

44192-11J00

$4.09

17

EMBLEM, "S"

68281-35F00

$16.45

18

CUSHION

09320-06504

$4.96
