2012 Suzuki DL650AL2 Front Brake Hose Diagram

← All diagrams

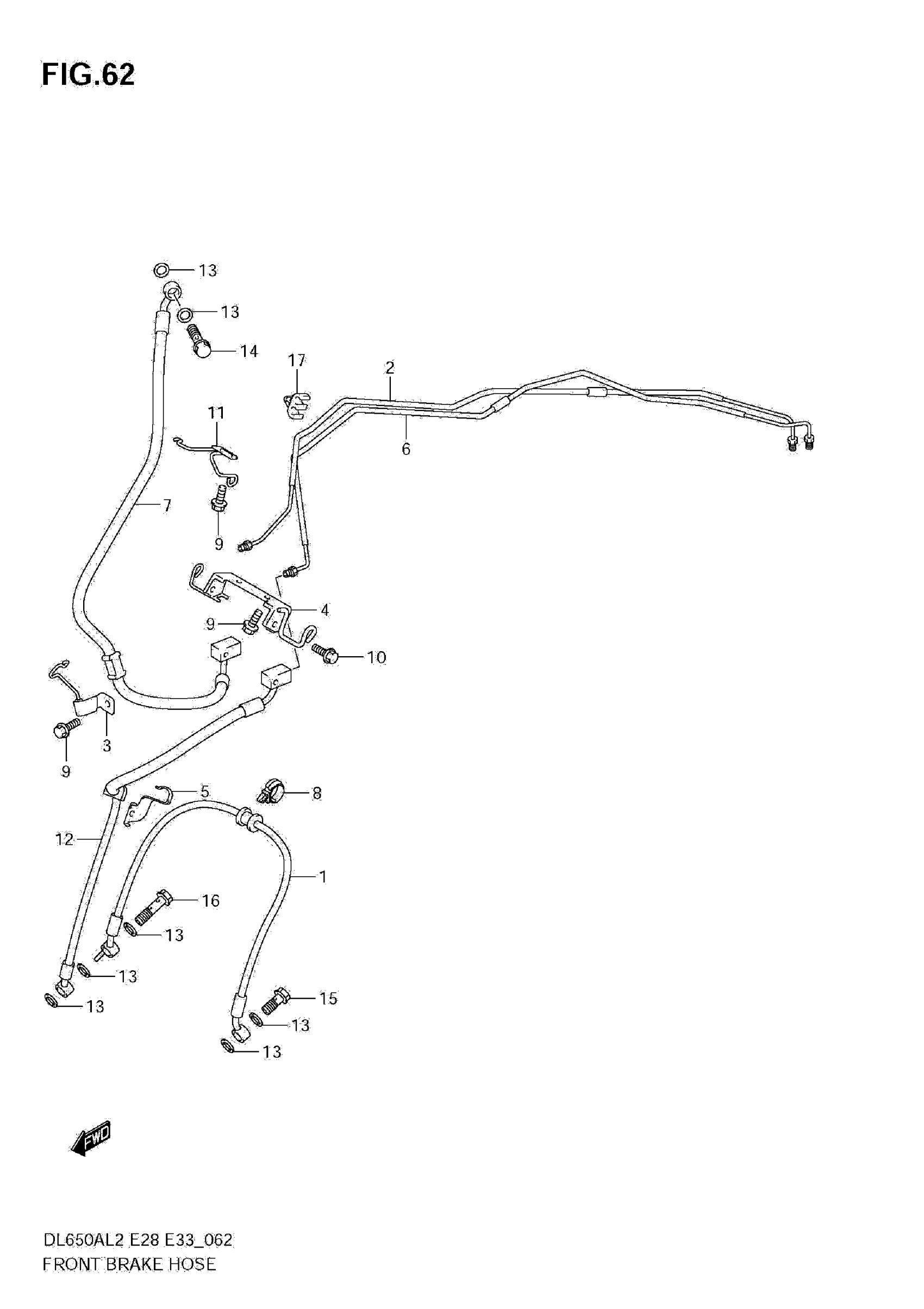

Find the part on the Front Brake Hose diagram for your 2012 Suzuki DL650AL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki DL650AL2 Front Brake Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE, FR BRAKE NO.2

59240-11J00

1
Out of stock

2

PIPE, FRONT BRAKE NO.1

59250-11J00

1
Out of stock

3

CLAMP, FR BRAKE HOSE

59260-06G10

1
Out of stock

4

CLAMP, FR BRAKE HOSE NO.2

59260-11J00

1
Out of stock

5

CLAMP, FR BRAKE HOSE RH

59268-11J00

1
Out of stock

6

PIPE, FRONT BRAKE NO.2

59450-11J00

1
Out of stock

7

HOSE, FR BRAKE NO.1 This part replaces 59480-11J00.

59480-11J01

1
Out of stock

8

CLAMP

09403-16412

1
Out of stock

9

BOLT

01547-0612A

4
Out of stock

10

BOLT

01547-0616A

2
Out of stock

11

GUIDE, FR BRAKE HOSE

59540-11J00

1
Out of stock

12

HOSE, FR BRAKE NO.3 This part replaces 59560-11J00.

59560-11J01

1
Out of stock

13

WASHER (10X15X1.5)

09161-10009

7
Out of stock

14

UNION

09360-10062

1
Out of stock

15

UNION

09360-10062

1
Out of stock

16

UNION

09360-10064

1
Out of stock

17

CLAMP

09403-07334

1
Out of stock
