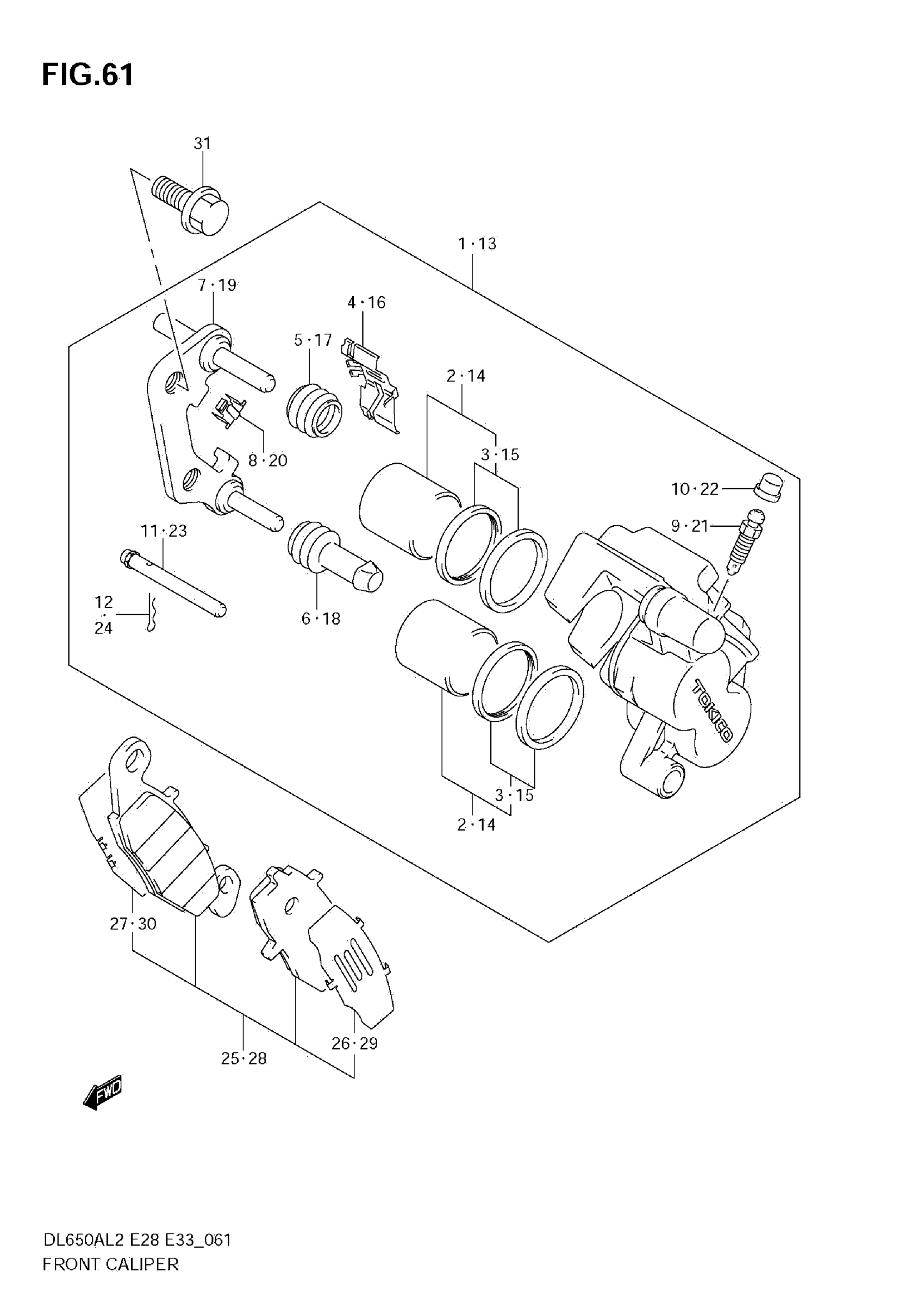

Suzuki DL650AL2 (2012) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, FRONT RH This part replaces 59100-33DF1-999.

59100-33DJ0-999

Unavailable

2

PISTON SET

59300-01820

$101.83

3

..SEAL SET, PISTON

59100-04851

$32.70

4

.SPRING, PAD RH

59115-33D00

$19.78

5

BOOT

59112-44B00

$8.15

6

.INSULATOR, AXLE

59313-36500

$5.48

7

.CARRIER, CALIPER RH

59150-33D01

$123.97

8

.GUIDE, PAD

59116-33D00

$7.51

9

BLEEDER

59121-18410

$7.99

10

CAP

55156-66310

$4.73

11

.PIN, PAD

59141-44B01

$8.56

12

.CLIP, PAD PIN

69142-45000

$3.97

13

CALIPER ASSY, FRONT LH This part replaces 59300-33DF1-999.

59300-33DJ0-999

Unavailable

14

PISTON SET

59300-01820

$101.83

15

..SEAL SET, PISTON

59100-04851

$32.70

16

.SPRING, PAD LH

59315-33D00

$14.03

17

BOOT

59112-44B00

$8.15

18

.INSULATOR, AXLE

59313-36500

$5.48

19

.CARRIER, CALIPER LH

59350-33D01

$123.97

20

.GUIDE, PAD

59116-33D00

$7.51

21

BLEEDER

59121-18410

$7.99

22

CAP

55156-66310

$4.73

23

.PIN, PAD

59141-44B01

$8.56

24

.CLIP, PAD PIN

69142-45000

$3.97

25

PAD & SHIM SET RH

59102-33870

$53.64

26

.SHIM, PAD

59171-33D00

$16.77

27

.SHIM, PAD NO.2

59172-33D00

$18.93

28

PAD & SHIM SET LH

59302-33850

$55.16

29

.SHIM, PAD

59171-33D00

$16.77

30

.SHIM, PAD NO.2

59172-33D00

$18.93

31

BOLT (10X20)

01550-1025A

$2.80
