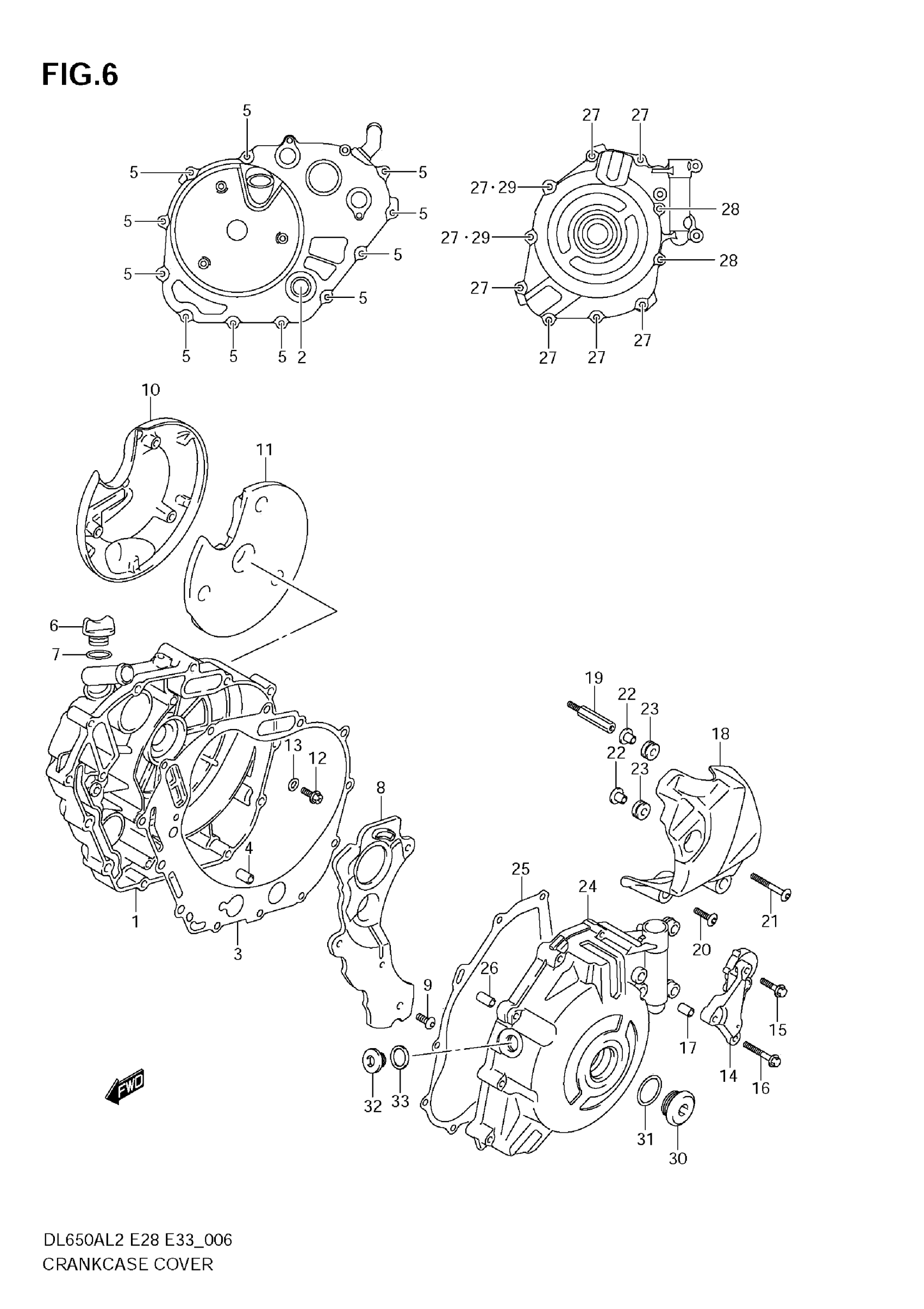

Suzuki DL650AL2 (2012) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11340-44H10

Unavailable

2

LENS, OIL LEVEL CHECK

11971-33210

$18.20

3

.GASKET,CLUTCH COVER

11482-44H00

$18.76

4

PIN

04211-09149

$1.65

5

BOLT (6X35)

09103-06214

$2.48

6

PLUG,ENGINE OIL FILLER

11971-25D00

$5.11

7

O RING (D:3.1,ID:16.8)

09280-17003

$1.65

8

SEPARATOR,OIL This part replaces 11343-44H00.

11343-44H01

$51.92

9

BOLT (6X12)

09106-06098

Unavailable

10

COVER, CLUTCH OUTER

11342-11J00

Unavailable

11

DAMPER

11344-11J00

Unavailable

12

BOLT This part replaces 02162-06167.

01550-06167

$2.30

13

GASKET (5.8X13X1.2)

09168-06023

$2.35

14

COVER, ENGINE SPROCKET INNER

11361-44H00

Unavailable

15

BOLT

01547-0620A

$2.03

16

BOLT

01547-0635A

$2.30

17

PIN

04211-09129

$1.65

18

COVER, ENGINE SPROCKET OUTER

11371-11J00

Unavailable

19

BOLT

11372-22H00

$15.00

20

BOLT (6X20)

09139-06028

$3.70

21

BOLT (6X40)

09139-06105

$7.35

22

WASHER

09169-06062

$2.50

23

CUSHION

09320-09016

$1.97

24

COVER, MAGNETO

11351-44H00

$336.15

25

.GASKET,MAGNETO COVER

11483-19F00

$12.78

26

PIN

04211-09149

$1.65

27

BOLT (6X35)

09103-06214

$2.48

28

BOLT (6X65)

09103-06239

$2.66

29

GASKET (5.8X13X1.2)

09168-06023

$2.35

30

PLUG

09259-26011

$11.03

31

O RING (D:3.1,ID:22.7)

09280-22008

$2.27

32

PLUG

09248-16012

$4.64

33

GASKET (16X22X2)

09168-16002

$1.91
