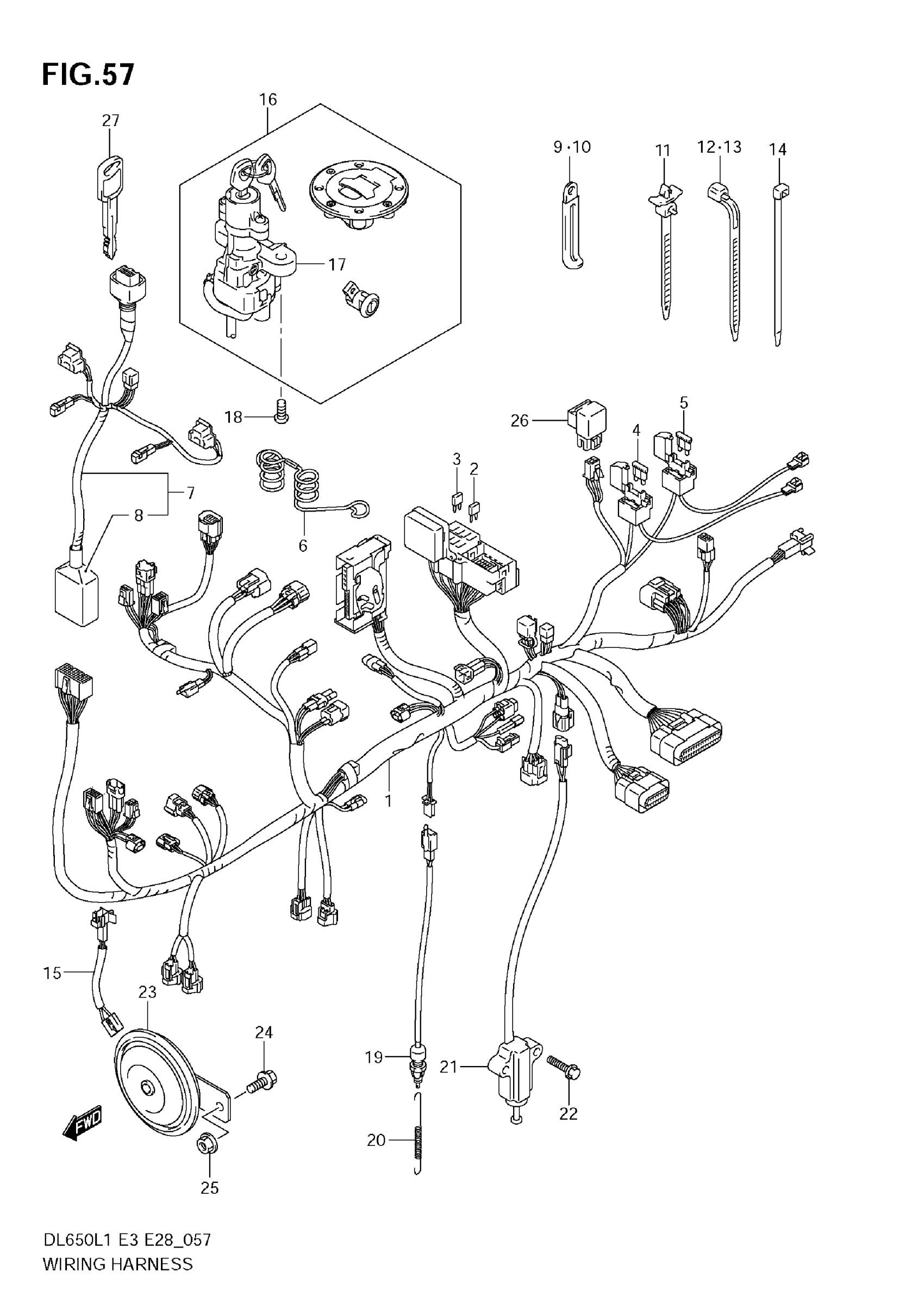

Suzuki DL650AL1 (2011) WIRING HARNESS (DL650A L1 E28) Diagram

#

Description
Price

1

HARNESS, WIRING, NO.1

36610-27GH1

Unavailable

2

FUSE (10A)

09481-10501

$2.06

3

FUSE (15A)

09481-15501

$2.02

4

FUSE (40A) | FOR ABS MOTOR

09481-40101

$9.35

5

FUSE (25A) | FOR ABS VALVE

09481-25103

Unavailable

6

GUIDE, WIRING HARNESS

36619-06G01

$19.57

7

HARNESS, WIRING, NO.2

36620-27G80

Unavailable

8

COVER, CONNECTOR

36618-18G10

Unavailable

9

CLAMP (L:45)

09404-06429

$1.83

10

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

11

CLAMP This part replaces 09407-14408.

09407-17402

$3.93

12

CLAMP (L:95)

09407-11401

$2.63

13

CLAMP (L:125)

09407-14403

$2.26

14

CLAMP (L:145)

09407-14407

$3.57

15

WIRE, HORN LEAD

36852-06G00

$17.43

16

LOCK SET This part replaces 37000-27860.

37000-27862

$422.70

17

LOCK ASSY,STEER This part replaces 37100-27G00.

37100-27G01

$194.80

18

BOLT (8X20)

09139-08016

$3.37

19

SWITCH ASSY, STOP LAMP

37740-45D00

$18.27

20

SPRING

09443-06012

$3.16

21

SWITCH ASSY,SIDE STAND This part replaces 37840-06G00.

37840-06G02

$60.37

22

BOLT

01550-0616B

$2.48

23

HORN ASSY

38500-27G00

Unavailable

24

BOLT

01550-0812B

$2.73

25

NUT

08316-1008B

$2.66

26

RELAY ASSY, FUEL PUMP

38740-24X50

$45.20

27

KEY, BLANK | OPT

37146-33E00

$21.21
