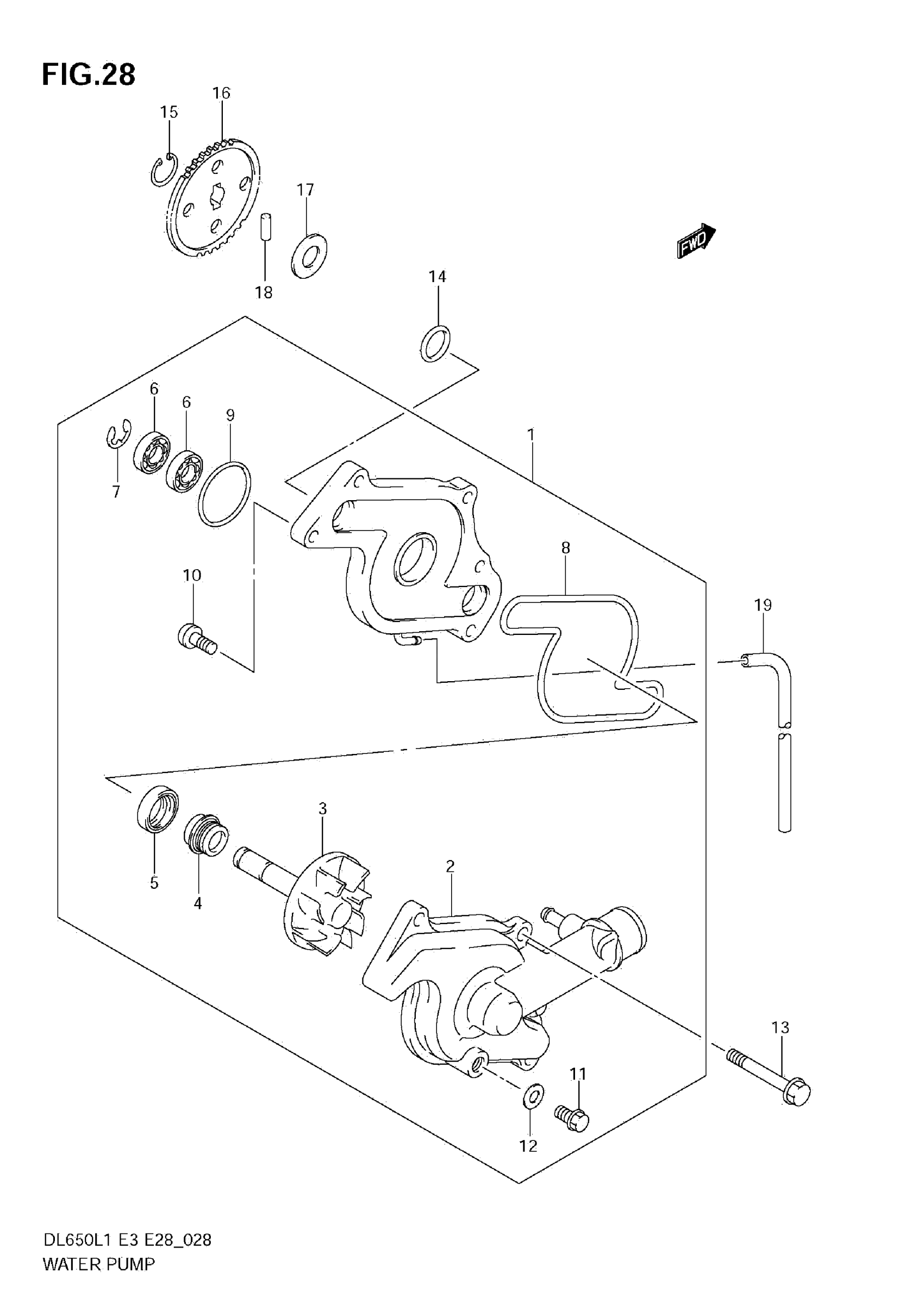

Suzuki DL650AL1 (2011) WATER PUMP Diagram

#

Description
Price

1

PUMP ASSY,WATER This part replaces 17400-19F50.

17400-19F51

$313.87

2

CASE, WATER PUMP

17411-19F50

$142.80

3

IMPELLER/SHAFT

17491-19F40

$68.10

4

.SEAL,MECHANICAL This part replaces 17470-02F10.

17470-02F11

$29.22

5

.SEAL OIL (10X21X5)

09283-10004

$4.96

6

BEARING (10X26X8)

09262-10014

$16.01

7

.E-RING

08332-1108A

$1.78

8

.O-RING

17418-19F00

$5.80

9

.O-RING

17435-33400

$15.29

10

.SCREW

02112-0616B

$2.12

11

.BOLT,DRAIN

17415-20920

$7.38

12

GASKET (8.2X14X1)

09168-08016

$1.65

13

BOLT (6X55)

09103-06216

$2.78

14

.O-RING (D:2.4,ID:21.8)

09280-22001

$1.65

15

CIRCLIP This part replaces 08331-3110A.

08331-31109

$1.78

16

GEAR, WATER PUMP DRIVEN

17461-19F00

$44.53

17

SHIM (10X18X0.5)

09181-10158

$1.97

18

ROLLER (4X13.8)

09261-04002

$1.72

19

HOSE(3.5X6.5X60 | L:600->320 This part replaces 09352-35653-600.

09352-35654-600

$10.72
