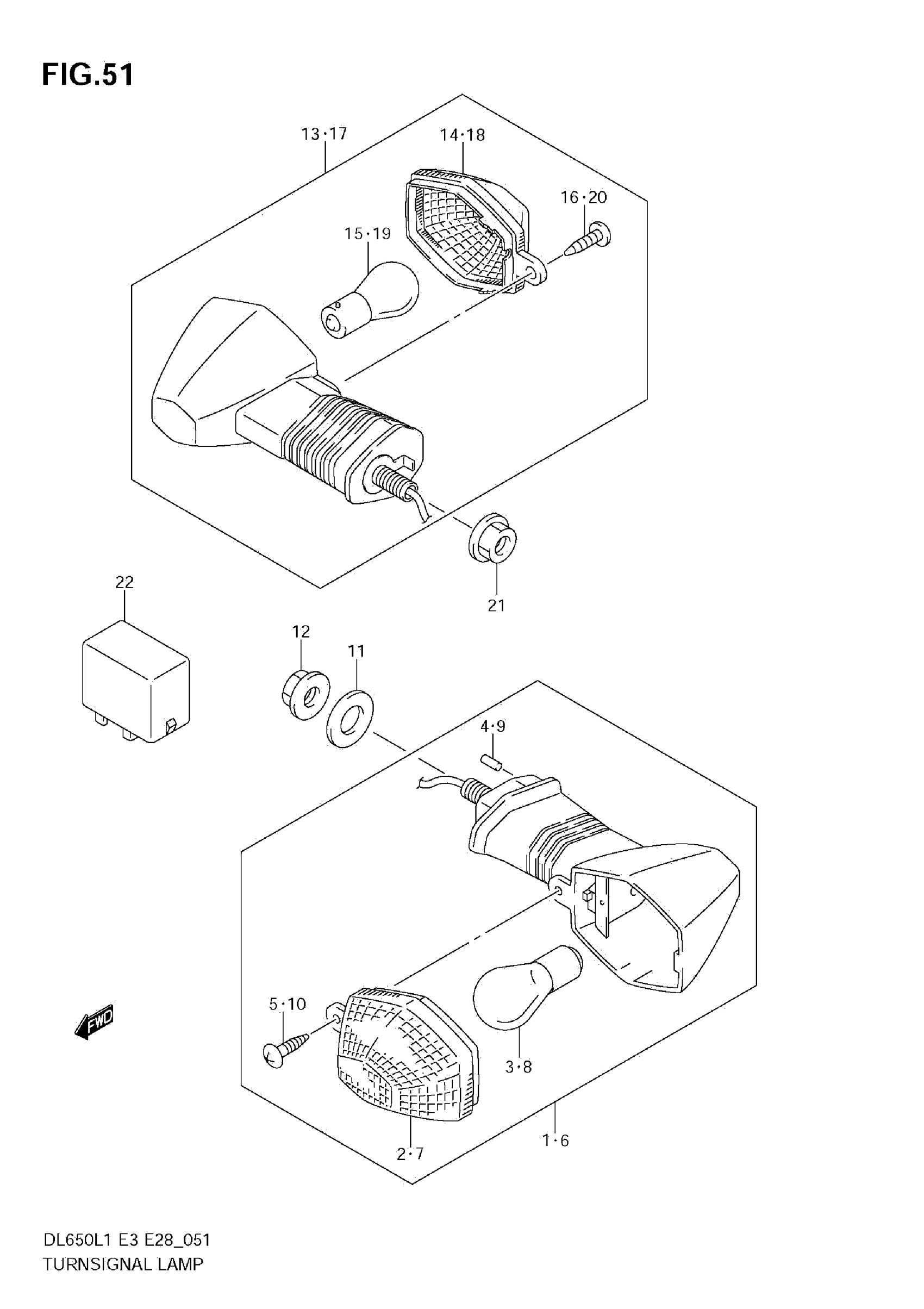

Suzuki DL650AL1 (2011) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL RH

35601-27G10

$86.86

2

LENS, RH

35612-29FA0

$14.37

3

BULB (12V21W)

09471-12186

$12.66

4

PIN

09202-04017

$3.78

5

SCREW

03241-0416B

$2.15

6

LAMP ASSY, FRONT TURNSIGNAL LH

35602-27G10

$86.86

7

LENS, LH

35632-29FA0

$14.37

8

BULB (12V21W)

09471-12186

$12.66

9

PIN

09202-04017

$3.78

10

SCREW

03241-0416B

$2.15

11

WASHER (12.5X30X1.6)

09160-12092

$2.19

12

NUT

08316-1012B

$2.76

13

LAMP ASSY, REAR TURNSIGNAL RH

35603-27G10

$114.48

15

LENS, RH

35632-29FA0

$14.37

17

BULB (12V21W)

09471-12186

$12.66

19

SCREW

03241-0416B

$2.15

14

LAMP ASSY.REAR TURNSIGNAL LH

35604-27G10

$114.48

16

LENS, LH

35612-29FA0

$14.37

18

BULB (12V21W)

09471-12186

$12.66

20

SCREW

03241-0416B

$2.15

21

NUT

08316-1012B

$2.76

22

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$87.08
