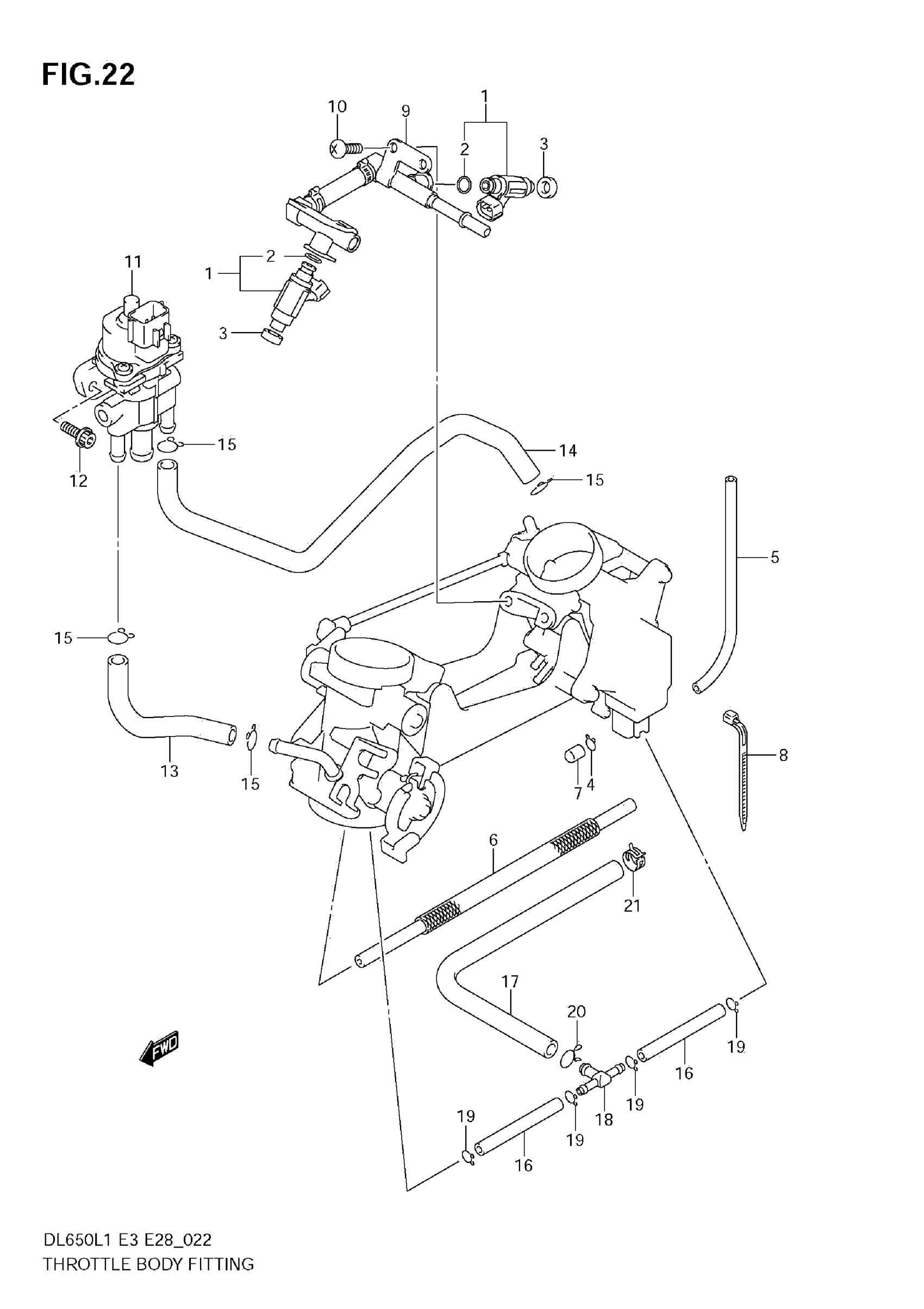

Suzuki DL650AL1 (2011) THROTTLE BODY FITTING (DL650A L1 E33) Diagram

#

Description
Price

1

INJECTOR ASSY

15710-27G00

$333.68

2

O RING

15717-16G00

$11.70

3

SEAL

15722-29G00

$10.93

4

CLIP

09401-06101

$2.03

5

HOSE

13683-16G30

Unavailable

6

HOSE This part replaces 13683-27G20.

13683-27G21

$44.30

7

CAP

13274-84000

$3.82

8

CLAMP

13671-02F00

Unavailable

9

DELIVERY PIPE ASSY

15730-17G01

$306.43

10

BOLT

13602-06128

$2.96

11

VALVE, ISC

18117-27G00

Unavailable

12

BOLT

07120-0616A

$2.53

13

HOSE, ISC VALVE FR

13697-27G00

$10.48

14

HOSE, ISC VALVE RR

13698-27G00

$20.52

15

CLIP

09401-11101

$2.36

16

HOSE

13681-06G40

Unavailable

17

HOSE

13683-06G11

$94.55

18

NIPPLE

13685-04F10

$11.07

19

CLIP

09401-06101

$2.03

20

CLIP This part replaces 09401-10410.

09401-10401

$1.49

21

CLIP (ID:9.4,H:8)

09401-09403

$2.03
